1688942 PHOENIX CONTACT -

VS-15-BU-DSUB-CD-OG - D-SUB contact support

D-SUB contact carrier, shell size 2, for 15 signal contacts, type of contact socket, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15-...

Cod. Articolo: 1688942 copia - copy

Cod. Fornitore: 1688942 copia - copy

PHOENIX CONTACT

Product properties	Type: D-SUB Socket Product type: Female insert Number of positions: 15 Connection profile: D-SUB Number of slots: 1 Shielded: yes Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated voltage in acc. with IEC 61076-2-101: 400 V Rated voltage (III/3): 125 V Rated surge voltage: 1 kV Rated current: 5 A (at 20Ã°C) Test voltage: 1200 V Transmission medium: Copper
Connection data	Connection technology Connection method: Crimp connection

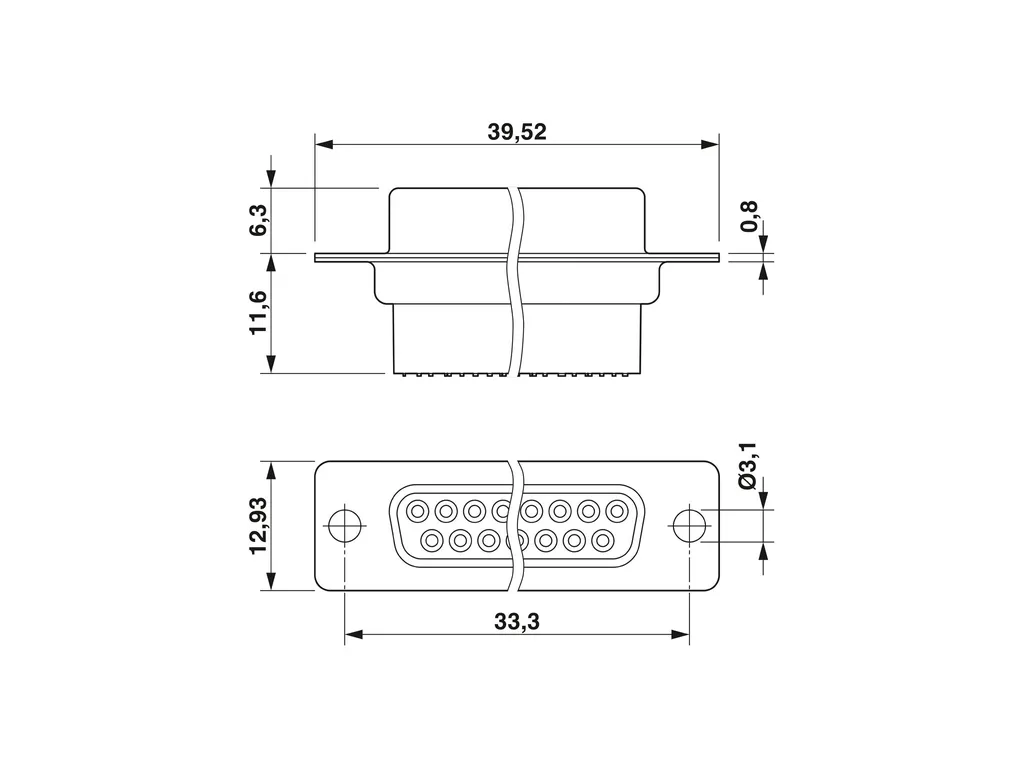

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d635ec91118a144ca5938830c4885abc/-S204x204-FJPG Width: 18.1 mm Height: 12.93 mm Length: 39.52 mm
Material specifications	Flammability rating according to UL 94: V0 Housing surface material: metal-plated Contact surface material: Gold Contact carrier material: Glass-fiber reinforced thermoplastics, UL 94 V0 Housing material: Metal
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500 Insertion force per signal contact: Ã¢Ã¢°¤ 3.40 N
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -55°C ... 130°C
Mounting	Mounting type: Screw mounting Connection method: Crimp connection
