1689789 PHOENIX CONTACT -

VS-25-ST-DSUB/25-MPT-0,5 - D-SUB contact insert

D-SUB contact insert, shell size 3, with 25 signal contacts, male type of contact, screw connection, straight, for panel mounting frame and sleeve housing with IP67 protection

Cod. Articolo: 1689789 copia - copy

Cod. Fornitore: 1689789 copia - copy

PHOENIX CONTACT

Product properties	Type: D-SUB Male Product type: Male insert Number of positions: 25 Connection profile: D-SUB Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 60 V Rated current: 5 A Insulation resistance: Ã¢Ã¢°¥ 5000 MÃ© Contact resistance per contact pair: Ã¢Ã¢°¤ 2.5 mÃ© Transmission medium: Copper

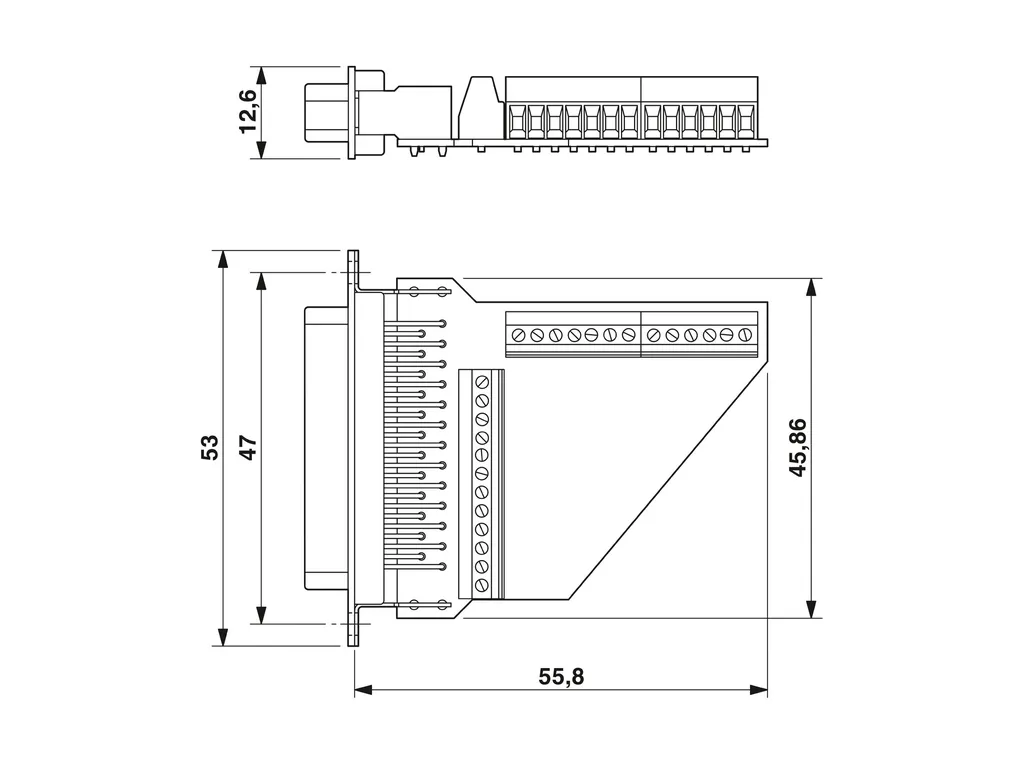

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/26a8f8078133be4b9af6e922a73f7d28/-S204x204-FJPG Width: 12.6 mm Height: 63 mm Length: 53.5 mm
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Gold over nickel Contact carrier material: PBTP
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 200 Insertion force per signal contact: Ã¢Ã¢°¤ 3.30 N Extraction force per signal contact: Ã¢Ã¢°¤ 2.2 N
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C
Mounting	Mounting type: Hole Connection method: Screw connection
