1689844 PHOENIX CONTACT -

VS-08-A-RJ45/MOD-1-R-IP67 - Panel mounting frames

RJ45 panel mounting frame, IP67, for modular socket inserts (Keystone), for round panel cutout, with grommet, with thread and union nut, color: gray

Cod. Articolo: 1689844 copia - copy

Cod. Fornitore: 1689844 copia - copy

PHOENIX CONTACT

Product properties	Type: RJ45 Product type: Panel mounting frame Number of positions: 8 Connection profile: RJ45 Application: Modular insert Number of slots: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Transmission medium: Copper

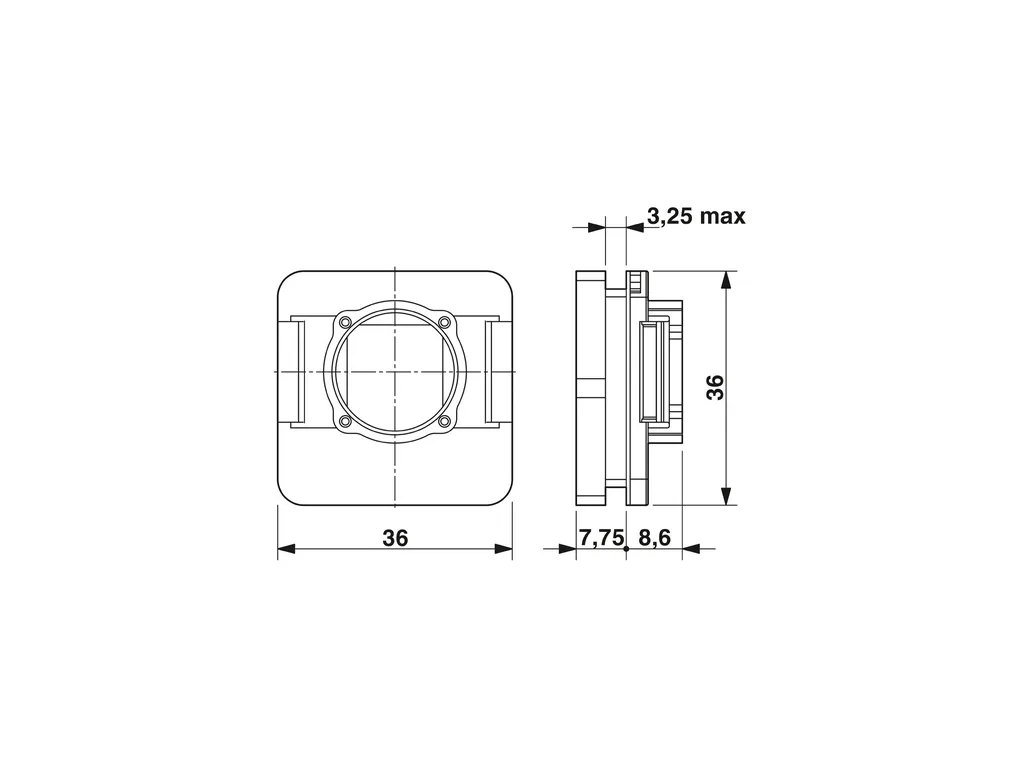

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6ad6df97e204714ea1f1c462b0b67ab4/-S204x204-FJPG Width: 36 mm Height: 36 mm Depth: 16.5 mm Length: 16.4 mm
Material specifications	Color: gray Material: Plastic Flammability rating according to UL 94: V0 Seal material: NBR Seal material, flat gasket: NBR Housing surface material: PA, light gray Contact material: Copper alloy Contact surface material: Au/Ni Contact carrier material: Polyester GF Housing material: Plastic
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 1000
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 55°C
