1689938 PHOENIX CONTACT -

VS-25-ST-DSUB-CD-G - D-SUB contact support

D-SUB contact carrier, Shell size 3, for 25 signal contacts, pin contact type, for crimp contacts, straight, attachment with M3 thread, for VS-25-... panel mounting frames

Cod. Articolo: 1689938 copia - copy

Cod. Fornitore: 1689938 copia - copy

PHOENIX CONTACT

Product properties	Type: D-SUB Male Product type: Male insert Number of positions: 25 Connection profile: D-SUB 25 Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated voltage in acc. with IEC 61076-2-101: 400 V Rated voltage (III/3): 125 V Rated current: 5 A (at 20Ã°C) Test voltage: 1200 V Transmission medium: Copper

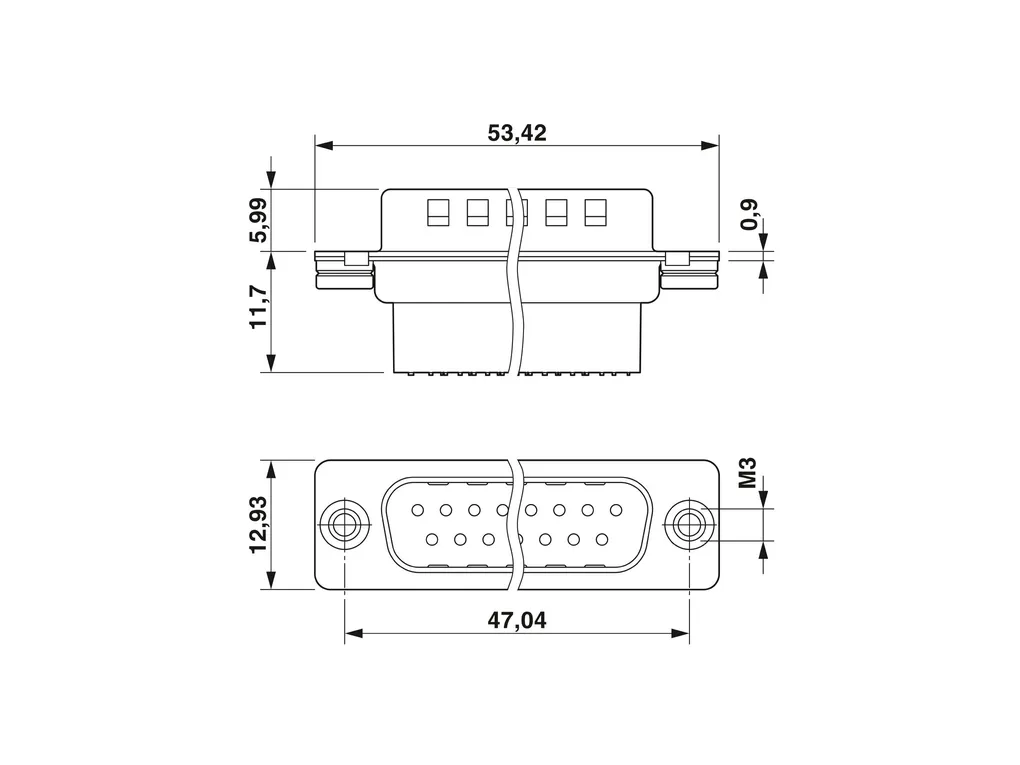

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b1af535994b290409f6525c4cb6f6e35/-S204x204-FJPG Width: 17.8 mm Height: 12.93 mm Length: 53.42 mm
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact carrier material: Glass-fiber reinforced thermoplastics, UL 94 V0 Housing material: Steel, tin-plated
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500 Insertion force per signal contact: Ã¢Ã¢°¤ 3.40 N
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -55°C ... 130°C
Mounting	Mounting type: Threads Connection method: Crimp connection
