SACB-8/ 8-M23 - Distributor box

Distributor box, application: Standard, connection method: M12 socket Plastic, number of slots: 8, number of positions: 4, coding: A, slot assignment: single, status display: No, Universal; master cable connection: M23 plug connection 90°, shielding: no

Cod. Articolo: 1692831 copia - copy

Cod. Fornitore: 1692831 copia - copy

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 4 Application: Standard Number of slots: 8 Coding: A LED: No
Material specifications	Material: PA Flammability rating according to UL 94: V0 Seal material O-ring: NBR Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA Material of contact, master cable side: CU alloy Material of contact surface, master cable side: gold-plated

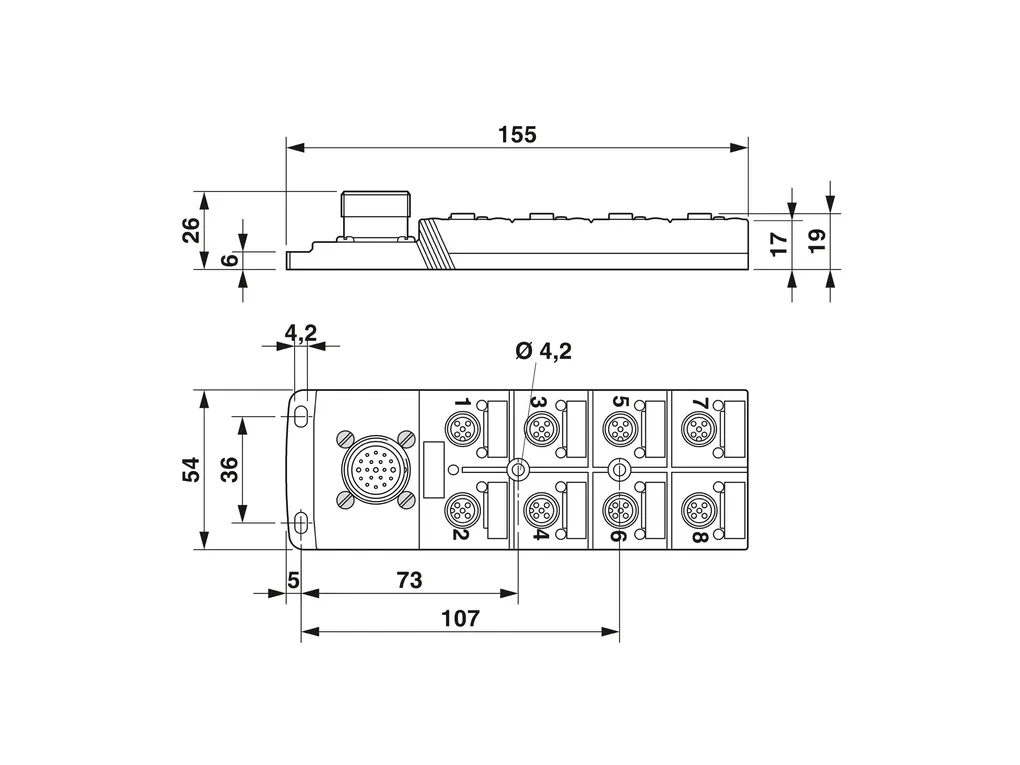

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cda82002f078044db973d6d7f4dead4c/-S204x204-FJPG Width: 54 mm Height: 26 mm Length: 155 mm
Connection data	Conductor connection Connection method: M23 plug connection Tightening torque slot sensor/actuator cable: 0.4 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)Ã=Ã1 2 / 4 (A)Ã=Ã2 3 / 4 (A)Ã=Ã3 4 / 4 (A)Ã=Ã4 5 / 4 (A)Ã=Ã5 6 / 4 (A)Ã=Ã6 7 / 4 (A)Ã=Ã7 8 / 4 (A)Ã=Ã8 1-4 / 1 (+ 120 V)Ã=Ã11 1-4 / 3 (0 V)Ã=Ã9+10 1-4 / 5 (PE)Ã=Ã12
Signaling	Status display present: No
Electrical properties	Max. operating voltage U_max: 135 V Nominal voltage U_N: 120 VÃAC 120 VÃDC Rated current, total: 12 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Sensor/actuator connection system: M12 socket Connection method: M23 plug connection Tightening torque slot sensor/actuator cable: 0.4 Nm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 75°C
