Disponibile
| Product properties | Product type: Y-distributor Number of positions: 4 No. of cable outlets: 2 Shielded: no Coding: A Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 10 Gé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 4 A |
| Signaling | Status display: No Status display present: No |

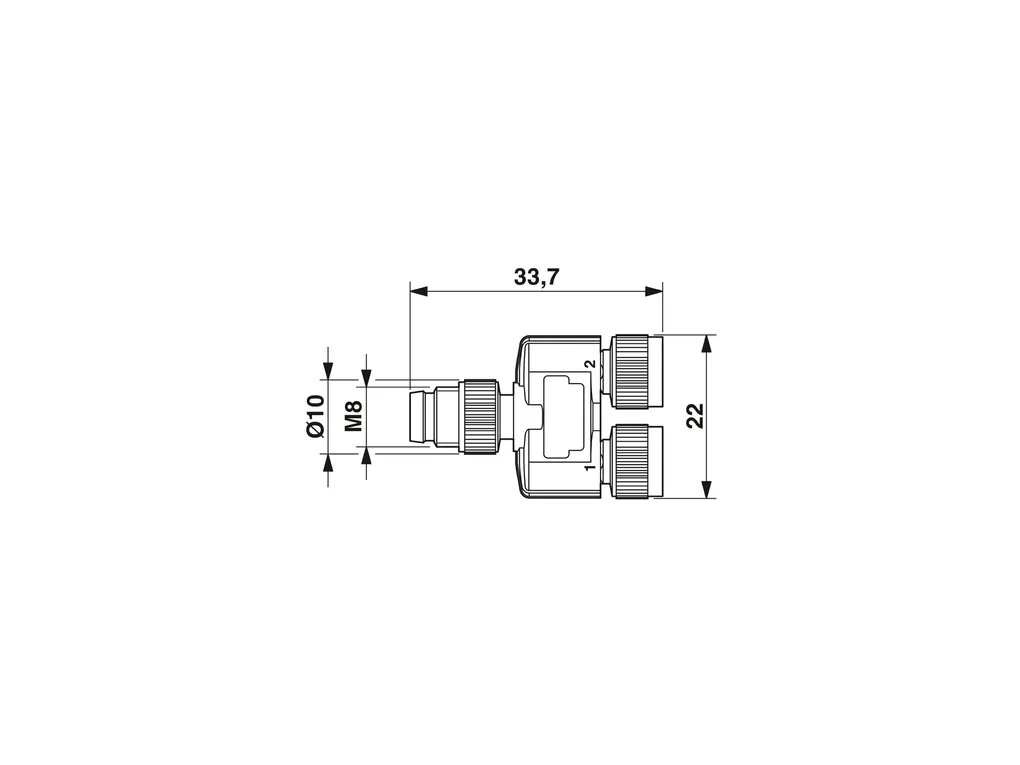

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1b83c62e5d528c48bdbb7362ed2ba1e0/-S204x204-FJPG Width: 22 mm Height: 10 mm Length: 33.7 mm Center distance: 12 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Plug straight M8 Coding type: A Connection 2 Type: Socket straight M8 Coding type: A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
