MK3DS 1,5/ 2-5,08-BC - PCB terminal block

PCB terminal block, number of positions per row: 2, product range: MK3DS 1,5/..- BC, pitch: 5.08 mm, screw head form: L Slotted, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Cod. Articolo: 1706413 copia - copy
Cod. Fornitore: 1706413 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: PC terminal block can be aligned
Product type: Printed circuit board terminal
Product family: MK3DS 1,5/..- BC
Number of positions: 2
Pitch: 5.08 mm
Pin layout: Linear pinning
Electrical propertiesMaximum load current: 17.5 A (with a 2.5 mm² conductor cross section)
Rated voltage (II/2): 630 V
Rated voltage (III/2): 400 V
Rated surge voltage (II/2): 4 kV
Rated surge voltage (III/2): 4 kV
Rated surge voltage (III/3): 4 kV
MountingMounting type: Wave soldering
Pin layout: Linear pinning
Drive form screw head: SlottedÂ(L)
Connection method: Screw connection with tension sleeve
Material specificationsColor: green
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Contact surface: Tin Sn

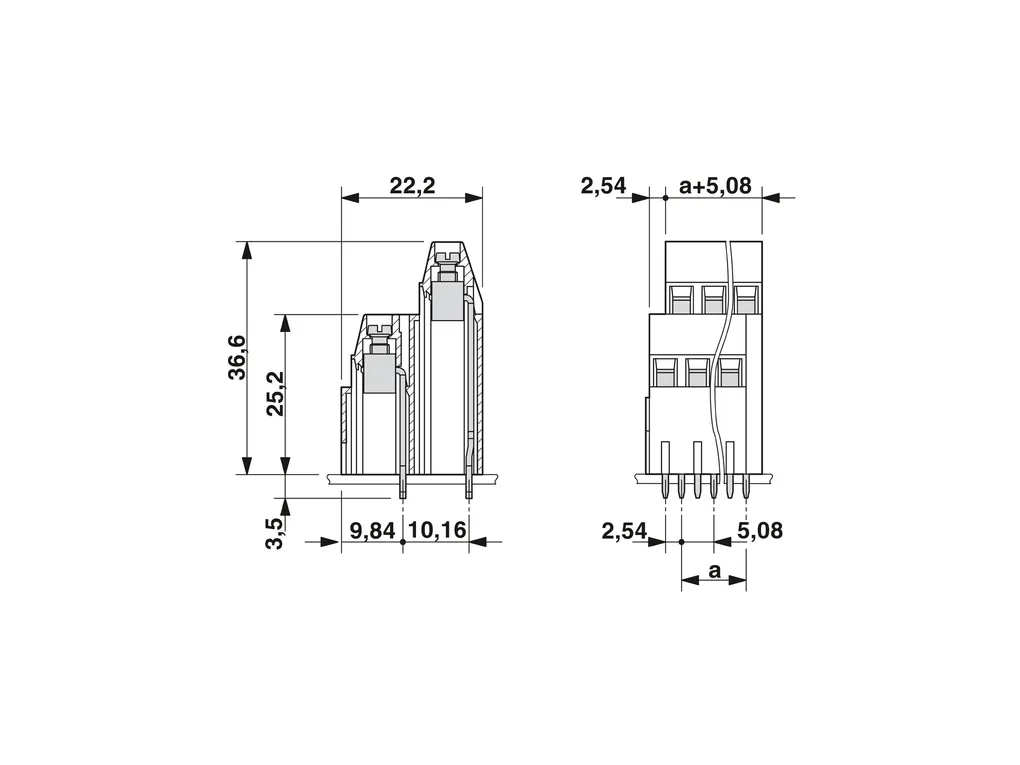

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3164ae78e23e2f45afbb55be7d614b27/-S204x204-FJPG
Width: 12.7 mm
Height: 40.1 mm
Installed height: 36.6 mm
Length of the solder pin: 3.5 mm
Length: 22.2 mm
Hole diameter: 1.3 mm
Pitch: 5.08 mm
PCB design
Pin spacing: 25.4 mm
Packaging specificationsType of packaging: packed in cardboard
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00959.pdf

Approvals_01806.pdf

Manufacturer_declaration_05483.pdf

Technical_drawing_19778.pdf
