SAMPLE MC 0,5/ 4-G-2,54 SMD - PCB header

PCB headers, nominal cross section: 0.5 mm2, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Gold, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MC 0,5/..-G-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin layout: Linear pad geometry, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
Cod. Articolo: 1706630 copia - copy
Cod. Fornitore: 1706630 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Caratteristiche Tecniche
Product propertiesProduct line: COMBICON Connectors XS
Product type: PCB headers
Product family: MC 0,5/..-G-SMD
Number of positions: 4
Pitch: 2.54 mm
Number of connections: 4
Number of rows: 1
Mounting flange: without
Number of potentials: 4
Pin layout: Linear pad geometry
Solder pins per potential: 1
Electrical propertiesNominal current IN: 6 A
Nominal voltage UN: 160 V
Degree of pollution: 3
Contact resistance: 2.6 mΩ
Rated voltage (III/3): 32 V
Rated surge voltage (III/3): 2.5 kV
Rated voltage (III/2): 160 V
Rated surge voltage (III/2): 2.5 kV
Rated voltage (II/2): 160 V
Rated surge voltage (II/2): 2.5 kV
MountingMounting type: SMD soldering
Pin layout: Linear pad geometry
Processing notes
Process: Reflow soldering
Moisture Sensitive Level: MSL 1
Classification temperature Tc: 260°C
Solder cycles in the reflow: 3
Material specificationsMaterial data - contact
Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material: Cu alloy
Surface characteristics: Completely gold-plated
Metal surface contact area (top layer): Gold (0.25 Au)
Metal surface contact area (middle layer): Nickel (2 - 4 µm Ni)
Metal surface soldering area (top layer): Gold (0.25 Au)
Metal surface soldering area (middle layer): Nickel (2 - 4 µm Ni)
Material data - housing
Color (Housing): black (9005)
Insulating material: LCP
Insulating material group: IIIa
CTI according to IEC 60112: 175
Flammability rating according to UL 94: V0

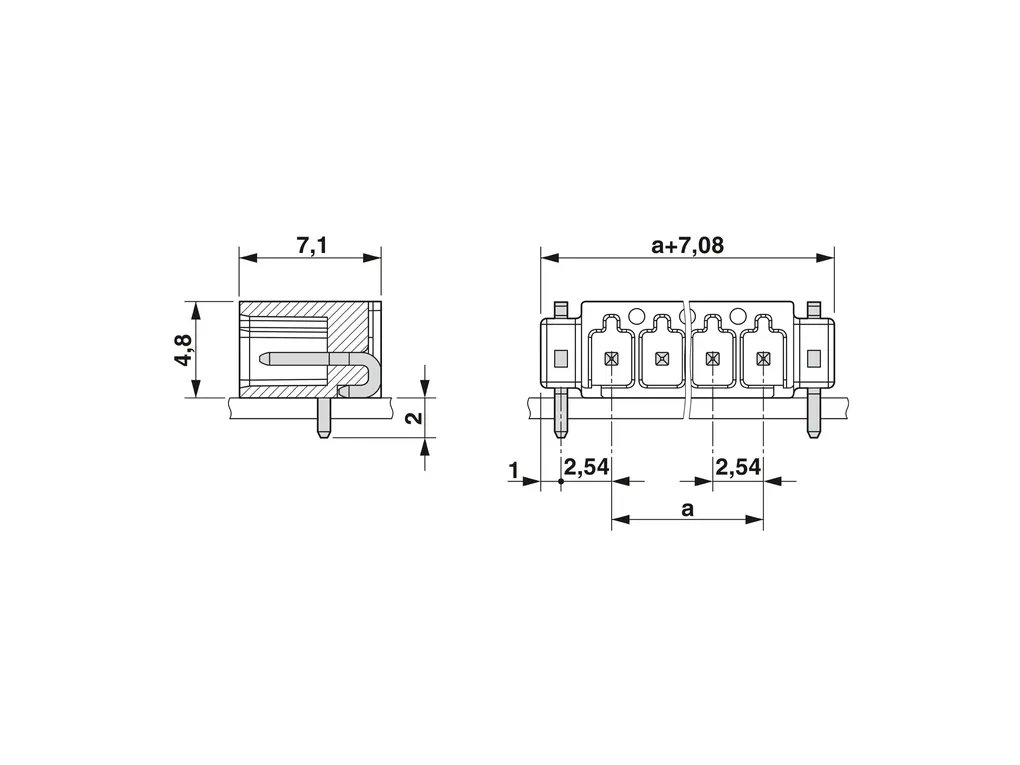

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2464924391ea904289a8463658d8e4b7/-S204x204-FJPG
Pitch: 2.54 mm
Width [w]: 14.74 mm
Height [h]: 4.85 mm
Length [l]: 7.1 mm
Installed height: 4.85 mm
Solder pin length [P]: 2 mm
Pin dimensions: 0.64 x 0.64 mm
PCB design
Pad geometry: 1.2 x 2.06 mm
Hole diameter: 1.2 mm
Mechanical testsVisual inspection
Specification: IEC 60512-1-1:2002-02
Result: Test passed
Dimension check
Specification: IEC 60512-1-2:2002-02
Result: Test passed
Resistance of inscriptions
Specification: IEC 60068-2-70:1995-12
Result: Test passed
Polarization and coding
Specification: IEC 60512-13-5:2006-02
Result: Test passed
Contact holder in insert
Specification: IEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N: Test passed
Insertion and withdrawal forces
Result: Test passed
No. of cycles: 100
Insertion strength per pos. approx.: 2 N
Withdraw strength per pos. approx.: 2 N
Electrical testsThermal test | Test group C
Specification: IEC 60512-5-1:2002-02
Tested number of positions: 16
Insulation resistance
Specification: IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions: >Â5ÂMΩ
Air clearances and creepage distances |
Specification: IEC 60664-1:2007-04
Insulating material group: IIIa
Comparative tracking index (IEC 60112): CTI 175
Rated insulation voltage (III/3): 32 V
Rated surge voltage (III/3): 2.5 kV
minimum clearance value - non-homogenous field (III/3): 1.5 mm
minimum creepage distance (III/3): 1.5 mm
Rated insulation voltage (III/2): 160 V
Rated surge voltage (III/2): 2.5 kV
minimum clearance value - non-homogenous field (III/2): 1.5 mm
minimum creepage distance (III/2): 1.6 mm
Rated insulation voltage (II/2): 160 V
Rated surge voltage (II/2): 2.5 kV
minimum clearance value - non-homogenous field (II/2): 1.5 mm
minimum creepage distance (II/2): 1.6 mm
Environmental and real-life conditionsVibration test
Specification: IEC 60068-2-6:2007-12
Frequency: 10 - 500 - 10 Hz
Sweep speed: 1Âoctave/min
5g (60.1ÂHzÂ...Â500ÂHz)
Amplitude: 0.35Âmm (10ÂHzÂ...Â60.1ÂHz)
Test duration per axis: 2 h
Durability test
Specification: IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level: 2.95 kV
Contact resistance R1: 2.6 mΩ
Contact resistance R2: 2.6 mΩ
Insertion/withdrawal cycles: 100
Insulation resistance, neighboring positions: >Â5ÂMΩ
Climatic test
Specification: DINÂ50018:2013-05
Corrosive stress: 1.0 dm3 SO2 on 300 dm3/40°C/3 cycles
Thermal stress: 100°C/168Âh
Power-frequency withstand voltage: 1.39 kV
Ambient conditions
Ambient temperature (operation): -40°C ... 100°C (dependent on the derating curve)
Ambient temperature (storage/transport): -40°C ... 70°C
Relative humidity (storage/transport): 30 % ... 70 %
Ambient temperature (assembly): -5°C ... 100°C
Packaging specificationsType of packaging: packed in cardboard

Altri prodotti correlati

Di seguito alcuni articoli correlati a quello che stai vedendo

PHOENIX CONTACT 1704170
QC 0,5/ 2-ST-3,81 BK LCBK - Printed-circuit board connector
Cod. Articolo: 1704170
PCB connector, nominal cross section: 0.5 mm2, color: black, nominal current: 6 A, rated voltage (III/2): 200 V, contact surface: Tin, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: QC 0,5/..-ST, pitch: 3.81 mm, connection method: Displacement connection, conductor/PCB connection direction: 0°, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard
Scopri di più →
PHOENIX CONTACT 1821766

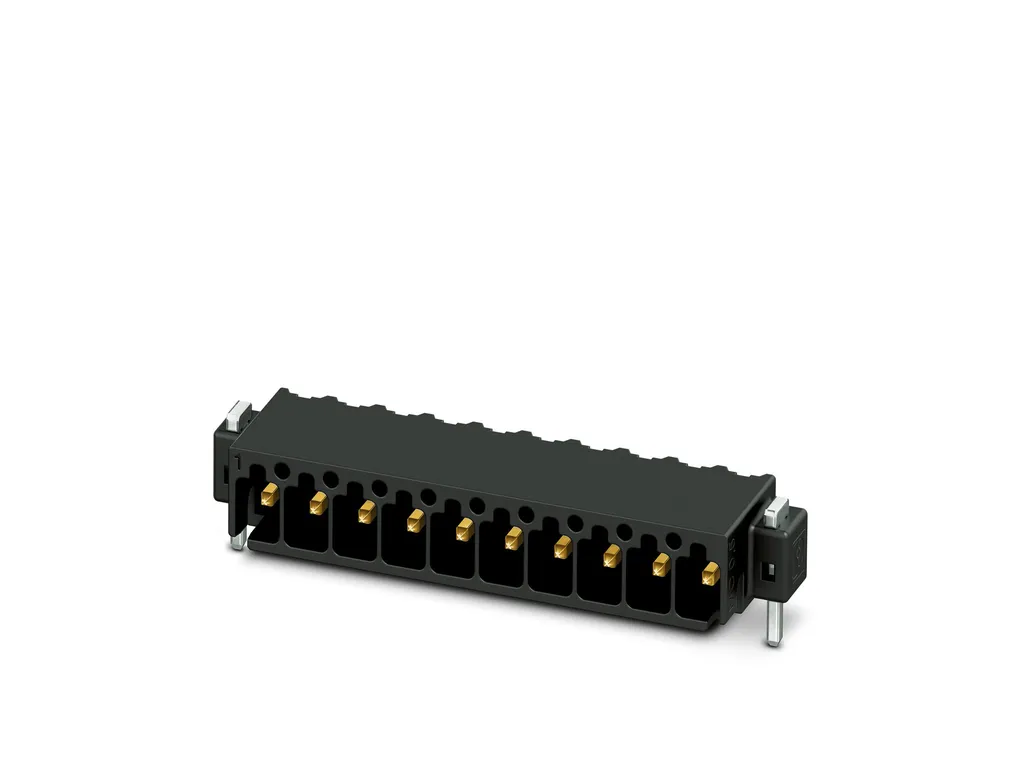

MC 0,5/ 9-G-2,54 SMD R44 - PCB header
