1709472 PHOENIX CONTACT -

FRONT 2,5-V/SA 5-EX- 2 BK - PCB terminal block

PCB terminal block, nominal current: 21 A, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: FRONT 2,5-V-EX, pitch: 5 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 90°, color: black, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2. The article can be aligned to create different nos. of positions!

Cod. Articolo: 1709472 copia - copy

Cod. Fornitore: 1709472 copia - copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals M Product type: Printed circuit board terminal Product family: FRONT 2,5-V-EX Number of positions: 2 Pitch: 5 mm Number of connections: 2 Number of rows: 1 Number of potentials: 2 Pin layout: Linear pinning Solder pins per potential: 2
Electrical properties	Nominal current I_N: 21 A Nominal voltage U_N: 176 V Rated current / conductor cross section: 21 A/2.5 mm² Degree of pollution: 3 Rated voltage (III/3): 176 V
Ex data	Ex approval Identification: 0344Ã¯Ã II 2GD / Ex eb IIC Gb EU-type examination certificate: KEMA 00ATEX2053 U IECEx certificate: IECEx KEM 07.0023 U
Connection data	Connection technology Type: PC terminal block can be aligned Nominal cross section: 2.5 mm² Conductor connection Connection method: Front screw connection Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 0.75 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 0.75 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.34 mm² Stripping length: 9 mm Tightening torque: 0.4 Nm ... 0.5 Nm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Screw connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (4 - 8 Ãµm Sn) Metal surface soldering area (top layer): Tin (4 - 8 Ãµm Sn) Material data - housing Color (Housing): black (9005) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 5 mm Width [w]: 32.5 mm Height [h]: 23 mm Length [l]: 18.5 mm Installed height: 19.5 mm Solder pin length [P]: 3.5 mm Pin dimensions: 0.8 x 0.8 mm PCB design Pin spacing: 5 mm Hole diameter: 1.2 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 2.5 mm² / flexible / > 50 N 2.5 mm² / solid / > 50 N
Electrical tests	Temperature-rise test Specification: IEC 60947-7-4:2013-08 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2013-08 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 176 V minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 3 mm minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm

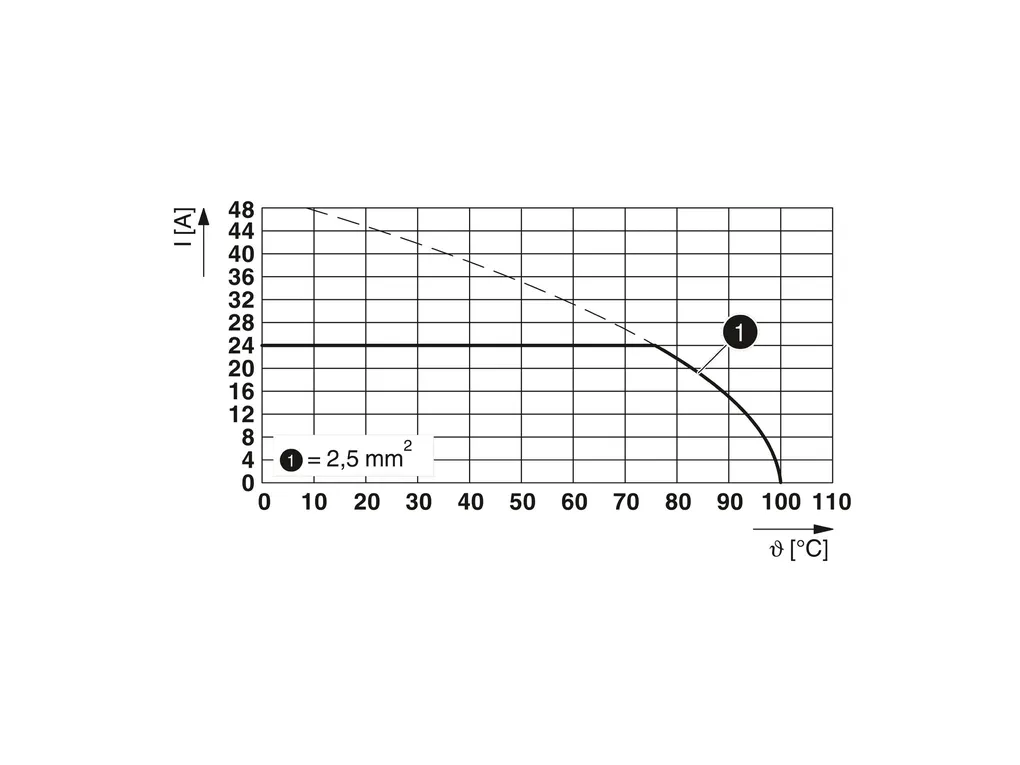

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2013-08 Ambient conditions Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
