1723365 PHOENIX CONTACT -

MC 1,5/ 2-GF-3,81-LR BK - PCB header

PCB headers, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 2, product range: MC 1,5/..-GF-LR, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Lock & release threaded flange, type of packaging: packed in cardboard

Cod. Articolo: 1723365 copia - copy

Cod. Fornitore: 1723365 copia - copy

PHOENIX CONTACT

Product properties	Product type: PCB headers Product family: MC 1,5/..-GF-LR Product line: COMBICON Connectors S Number of positions: 2 Pitch: 3.81 mm Number of rows: 1 Pin layout: Linear pinning Solder pins per potential: 1 Data management status Article revision: 01
Electrical properties	Nominal current I_N: 8 A Nominal voltage U_N: 160 V Contact resistance: 1.3 mÃ© Rated voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 250 V Rated surge voltage (II/2): 2.5 kV
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface contact area (top layer): Tin (3 - 5 Ãµm Sn) Metal surface contact area (middle layer): Nickel (1 - 3 Ãµm Ni) Metal surface soldering area (top layer): Tin (3 - 5 Ãµm Sn) Metal surface soldering area (middle layer): Nickel (1 - 3 Ãµm Ni) Material data - housing Color (Housing): black (9005) Insulating material: PBT Insulating material group: IIIa CTI according to IEC 60112: 225 Flammability rating according to UL 94: V0
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/53110/full/b1500?format=jpg Pitch: 3.81 mm Width [w]: 18.01 mm Height [h]: 10.65 mm Length [l]: 9.2 mm Installed height: 7.25 mm Solder pin length [P]: 3.4 mm Pin dimensions: 0.8 x 0.8 mm PCB design Hole diameter: 1.2 mm
Mechanical tests	Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 25 Insertion strength per pos. approx.: 6 N Withdraw strength per pos. approx.: 4 N
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 20 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: > 5 MÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI 225 Rated insulation voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 2.5 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 250 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 2.5 mm

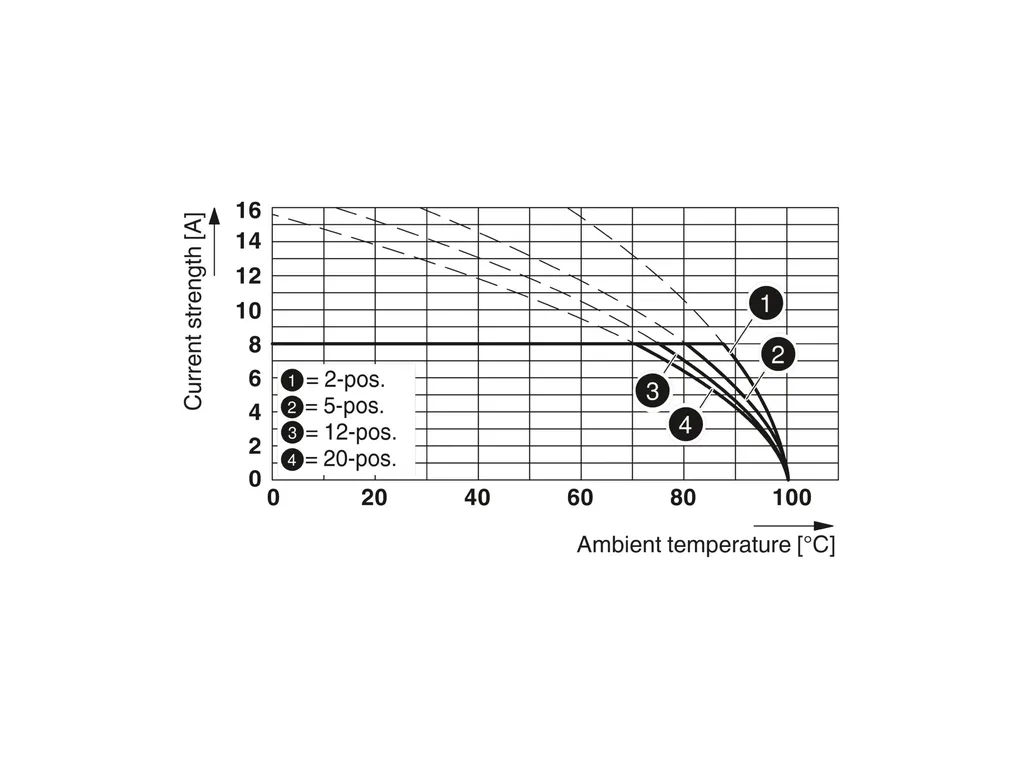

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1 octave/min Amplitude: 0.35 mm (10 Hz ... 60.1 Hz) Acceleration: 5g (60.1 Hz ... 150 Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 1.3 mÃ© Contact resistance R₂: 1.5 mÃ© Insertion/withdrawal cycles: 25 Insulation resistance, neighboring positions: > 5 MÃ© Climatic test Specification: ISO 6988:1985-02 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40 °C/1 cycle Thermal stress: 100 °C/168 h Power-frequency withstand voltage: 1.39 kV Ambient conditions Ambient temperature (operation): -40 °C ... 100 °C (dependent on the derating curve) Ambient temperature (storage/transport): -40 °C ... 70 °C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5 °C ... 100 °C
Packaging specifications	Type of packaging: packed in cardboard
