PTDA 1,5/13-PH-3,5 - PCB connector

PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 240 V, contact surface: Tin, contact connection type: Socket, number of potentials: 13, number of rows: 1, number of positions: 13, number of connections: 26, product range: PTDA 1,5/..-PH, pitch: 3.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 45°, pin layout: Linear double pinning, plug-in system: COMBICON PST 1,0, locking: without, mounting: without, type of packaging: packed in cardboard

Cod. Articolo: 1725250 copia - copy

Cod. Fornitore: 1725250 copia - copy

PHOENIX CONTACT

Product properties	Type: Plug for pin strip Product line: COMBICON Connectors S Product type: PCB connector Product family: PTDA 1,5/..-PH Number of positions: 13 Pitch: 3.5 mm Number of connections: 26 Number of rows: 1 Mounting flange: without Number of potentials: 13 Pin layout: Linear double pinning
Electrical properties	Nominal current I_N: 8 A Nominal voltage U_N: 240 V Degree of pollution: 3 Contact resistance: 1.8 mÃ© Rated voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 240 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 400 V Rated surge voltage (II/2): 2.5 kV
Connection data	Connection technology Type: Plug for pin strip Connector system: COMBICON PST 1,0 Nominal cross section: 1.5 mm² Contact connection type: Socket Interlock Locking type: without Mounting flange: without Conductor connection Connection method: Push-in spring connection Conductor/PCB connection direction: 45° Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve: 0.5 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.5 mm² ... 0.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 0.5 mm² Stripping length: 10 mm
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: hot-dip tin-plated Metal surface terminal point (top layer): Tin (4 - 8 Ãµm Sn) Metal surface contact area (top layer): Tin (4 - 8 Ãµm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C

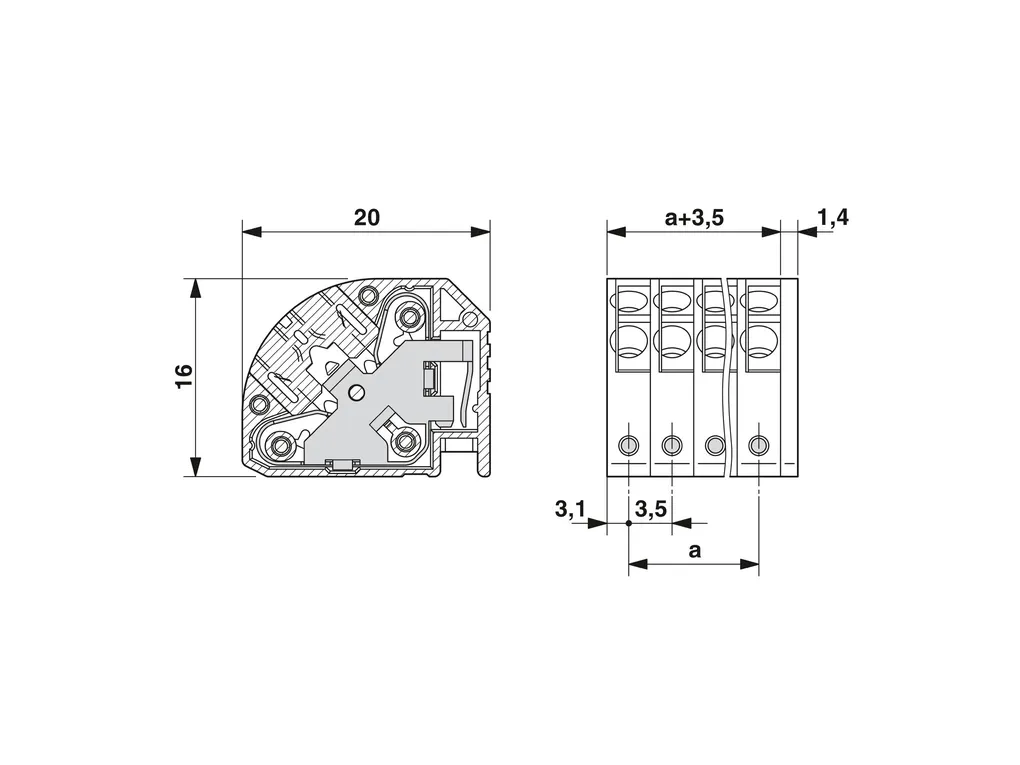

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG Pitch: 3.5 mm Width [w]: 46.9 mm Height [h]: 16 mm Length [l]: 20 mm
Mounting	Pin layout: Linear double pinning Connection method: Push-in spring connection
Mechanical tests	Conductor connection Specification: IEC 60999-1:1999-11 Result: Test passed Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Repeated connection and disconnection Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 1.5 mm² / solid / > 40 N 1.5 mm² / flexible / > 40 N Insertion and withdrawal forces Result: Test passed No. of cycles: 10 Insertion strength per pos. approx.: 6 N Withdraw strength per pos. approx.: 5 N Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed
Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:1995-03 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-5:1992-08 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 1.8 mÃ© Contact resistance R₂: 1.9 mÃ© Insertion/withdrawal cycles: 10 Climatic test Specification: ISOÃ6988:1985-02 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40°C/1 cycle Thermal stress: 100Ã°C/168Ãh Power-frequency withstand voltage: 1.39 kV Ambient conditions Ambient temperature (operation): -40°C ... 100°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 16 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: 10^12ÃÃ© Temperature cycles Specification: IEC 60999-1:1999-11 Result: Test passed Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 2 mm Rated insulation voltage (III/2): 240 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.5 mm Rated insulation voltage (II/2): 400 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 2 mm
Packaging specifications	Type of packaging: packed in cardboard
