1747931 PHOENIX CONTACT -

ZFKDSA 1-W-3,81- 7 - PCB terminal block

PCB terminal block, nominal current: 12 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: ZFKDS(A) 1-W, pitch: 3.81 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Cod. Articolo: 1747931 copia - copy

Cod. Fornitore: 1747931 copia - copy

PHOENIX CONTACT

Product properties	Type: PC terminal block can be aligned Product line: COMBICON Terminals S Product type: Printed circuit board terminal Product family: ZFKDS(A) 1-W Number of positions: 7 Pitch: 3.81 mm Number of connections: 7 Number of rows: 1 Number of potentials: 7 Pin layout: Linear pinning Solder pins per potential: 2
Electrical properties	Nominal current I_N: 12 A Nominal voltage U_N: 200 V Degree of pollution: 3 Rated voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 200 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 400 V Rated surge voltage (II/2): 2.5 kV
Connection data	Connection technology Type: PC terminal block can be aligned Nominal cross section: 1 mm² Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1 mm² Conductor cross section AWG: 26 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 0.5 mm² Stripping length: 7.5 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Spring-cage connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: hot-dip tin-plated Metal surface terminal point (top layer): Tin (10 - 16 Ãµm Sn) Metal surface soldering area (top layer): Tin (10 - 16 Ãµm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C Material data Ã¢Ã¢¬Ã¢ actuating element Color (Actuating element): green (6021)

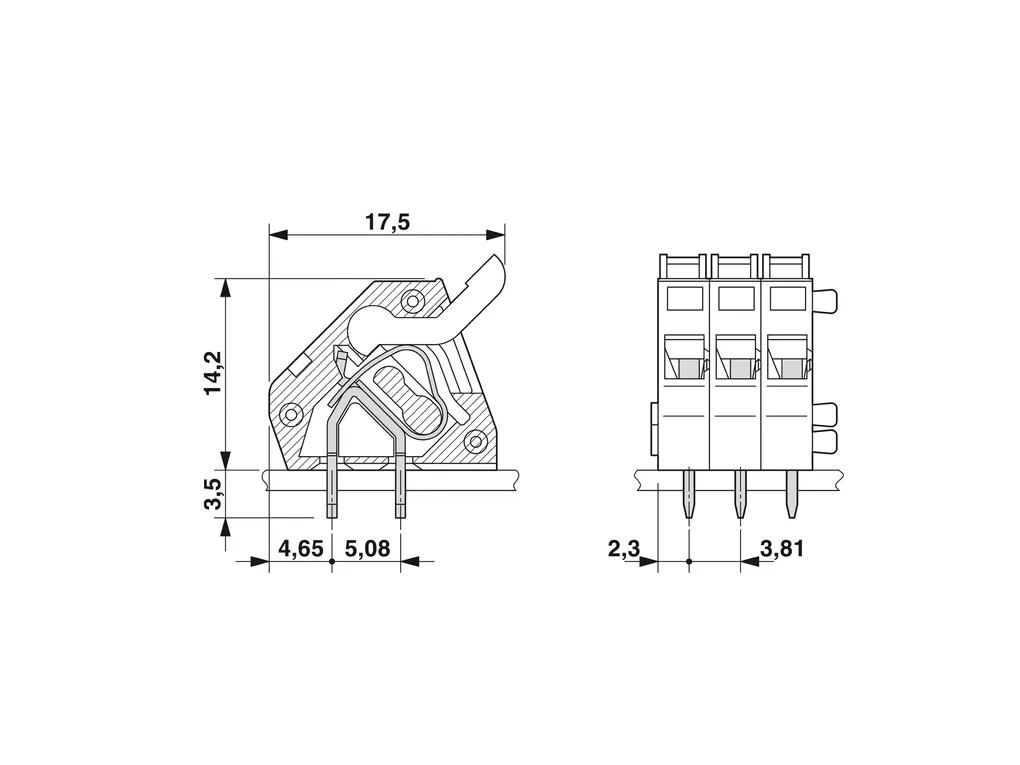

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 3.81 mm Width [w]: 29.71 mm Height [h]: 19.48 mm Length [l]: 17.46 mm Installed height: 15.98 mm Solder pin length [P]: 3.5 mm Pin dimensions: 0.7 x 1 mm PCB design Hole diameter: 1.2 mm
Electrical tests	Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 160 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 2 mm Rated insulation voltage (III/2): 200 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.5 mm Rated insulation voltage (II/2): 400 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 2 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
