1821122 PHOENIX CONTACT -

FMC 0,5/ 5-ST-2,54 - Printed-circuit board connector

PCB connector, nominal cross section: 0.5 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Gold, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: FMC 0,5/..-ST, pitch: 2.54 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0°, plug-in system: COMBICON FMC 0,5, locking: without, mounting: without, type of packaging: packed in cardboard

Cod. Articolo: 1821122 copia - copy

Cod. Fornitore: 1821122 copia - copy

PHOENIX CONTACT

Product properties	Type: Standard Product line: COMBICON Connectors XS Product type: PCB connector Product family: FMC 0,5/..-ST Number of positions: 5 Pitch: 2.54 mm Number of connections: 5 Number of rows: 1 Mounting flange: without Number of potentials: 5
Electrical properties	Nominal current I_N: 6 A Nominal voltage U_N: 160 V Degree of pollution: 3 Contact resistance: 2.7 mÃ© Rated voltage (III/3): 32 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 160 V Rated surge voltage (II/2): 2.5 kV
Connection data	Connection technology Type: Standard Connector system: COMBICON FMC 0,5 Nominal cross section: 0.5 mm² Contact connection type: Socket Interlock Locking type: without Mounting flange: without Conductor connection Connection method: Push-in spring connection Conductor/PCB connection direction: 0° Conductor cross section rigid: 0.14 mm² ... 0.5 mm² Conductor cross section flexible: 0.14 mm² ... 0.5 mm² Conductor cross section AWG: 26 ... 20 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.34 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.14 mm² ... 0.25 mm² Cylindrical gauge a x b / diameter: - / 1.0Ãmm Stripping length: 7 mm
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: partially gold-plated Metal surface terminal point (top layer): Tin (5 - 7 Ãµm Sn) Metal surface terminal point (middle layer): Nickel (2 - 3 Ãµm Ni) Metal surface contact area (top layer): Gold (0.25 Au) Metal surface contact area (middle layer): Nickel (2 - 3 Ãµm Ni) Material data - housing Color (Housing): black (9005) Insulating material: LCP Insulating material group: IIIa CTI according to IEC 60112: 175 Flammability rating according to UL 94: V0 Material data Ã¢Ã¢¬Ã¢ actuating element Insulating material: LCP Insulating material group: IIIa CTI according to IEC 60112: 175 Flammability rating according to UL 94: V0
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG Pitch: 2.54 mm Width [w]: 13.2 mm Height [h]: 5.35 mm Length [l]: 14 mm
Mounting	Connection method: Push-in spring connection
Mechanical tests	Conductor connection Specification: IEC 60999-1:1999-11 Result: Test passed Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Repeated connection and disconnection Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.14 mm² / solid / > 10 N 0.14 mm² / flexible / > 10 N 0.5 mm² / solid / > 20 N 0.5 mm² / flexible / > 20 N Insertion and withdrawal forces Result: Test passed No. of cycles: 100 Insertion strength per pos. approx.: 2 N Withdraw strength per pos. approx.: 2 N Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed

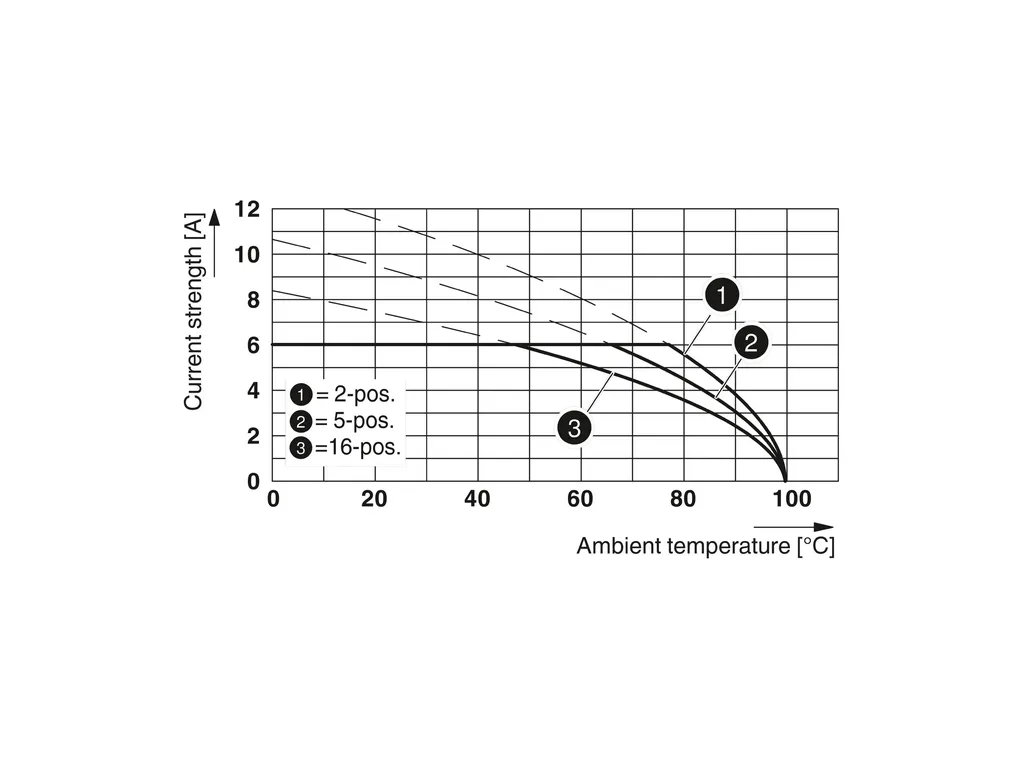

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 500 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã500ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 2.7 mÃ© Contact resistance R₂: 2.6 mÃ© Insertion/withdrawal cycles: 100 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Climatic test Specification: DINÃ50018:2013-05 Corrosive stress: 1.0 dm³ SO₂ on 300 dm³/40°C/3 cycles Thermal stress: 100Ã°C/168Ãh Power-frequency withstand voltage: 1.39 kV Ambient conditions Ambient temperature (operation): -40°C ... 100°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 16 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Temperature cycles Specification: IEC 60999-1:1999-11 Result: Test passed Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI 175 Rated insulation voltage (III/3): 32 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 0.8 mm minimum creepage distance (III/3): 1.3 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 160 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 0.5 mm minimum creepage distance (II/2): 1.6 mm
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
