1829904 PHOENIX CONTACT -

MKDS 1/ 5-3,81 HT BK P1,65 - PCB terminal block

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: MKDS 1/..-HT, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: THR soldering, conductor/PCB connection direction: 0°, color: black, Pin layout: Linear pinning, Solder pin [P]: 1.65 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard

Cod. Articolo: 1829904 copia - copy

Cod. Fornitore: 1829904 copia - copy

PHOENIX CONTACT

Product properties	Type: PC termination block Product line: COMBICON Terminals S Product type: Printed circuit board terminal Product family: MKDS 1/..-HT Number of positions: 5 Pitch: 3.81 mm Number of connections: 5 Number of rows: 1 Number of potentials: 5 Pin layout: Linear pinning Solder pins per potential: 1
Electrical properties	Nominal current I_N: 13.5 A Nominal voltage U_N: 200 V Degree of pollution: 3 Rated voltage (III/3): 63 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 200 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 200 V Rated surge voltage (II/2): 2.5 kV
Connection data	Connection technology Type: PC termination block Nominal cross section: 1.5 mm² Conductor connection Connection method: Screw connection with tension sleeve Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 26 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 0.5 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 0.5 mm² 2 conductors with same cross section, flexible: 0.14 mm² ... 0.34 mm² Stripping length: 5 mm Tightening torque: 0.22 Nm ... 0.25 Nm
Mounting	Mounting type: THR soldering Pin layout: Linear pinning Drive form screw head: SlottedÃ(L) Connection method: Screw connection with tension sleeve Processing notes Process: Reflow/wave soldering Moisture Sensitive Level: MSL 3 Classification temperature T_c: 260°C Solder cycles in the reflow: 3
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (5 - 7 Ãµm Sn) Metal surface terminal point (middle layer): Nickel (2 - 3 Ãµm Ni) Metal surface soldering area (top layer): Tin (5 - 7 Ãµm Sn) Metal surface soldering area (middle layer): Nickel (2 - 3 Ãµm Ni) Material data - housing Color (Housing): black (9005) Insulating material: PA Insulating material group: IIIa CTI according to IEC 60112: 250 - 399 Flammability rating according to UL 94: V0
Notes	Note on application: For safe conductor connection, always adhere to a defined tightening torque. Particularly in the case of PCB terminal blocks with two or three positions, the individual solder pin for each contact point cannot compensate for this. That is why the terminal blocks must be supported during conductor connection (held with one hand, support on the housing).
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 3.81 mm Width [w]: 19.04 mm Height [h]: 10.15 mm Length [l]: 7.3 mm Installed height: 8.5 mm Solder pin length [P]: 1.65 mm Pin dimensions: 0.5 x 0.9 mm PCB design Pin spacing: 3.5 mm Hole diameter: 1.1 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60998-2-1:1990-04 Result: Test passed Pull-out test Specification: IEC 60998-2-1:1990-04 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.14 mm² / solid / > 10 N 0.14 mm² / flexible / > 10 N 1.5 mm² / solid / > 40 N 1 mm² / flexible / > 35 N Torque test Specification: IEC 60998-2-1:1990-04
Electrical tests	Temperature-rise test Specification: IEC 60998-1:2002-12 Requirement temperature-rise test: Increase in temperature Ã¢Ã¢°¤Ã45ÃK Insulation resistance Specification: IEC 60998-2-1:1990-04 Insulation resistance, neighboring positions: 10⁹ÃÃ© Air clearances and creepage distances \| Specification: IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI 250 - 399 Rated insulation voltage (III/3): 63 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 2 mm Rated insulation voltage (III/2): 200 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 2 mm Rated insulation voltage (II/2): 200 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 2 mm

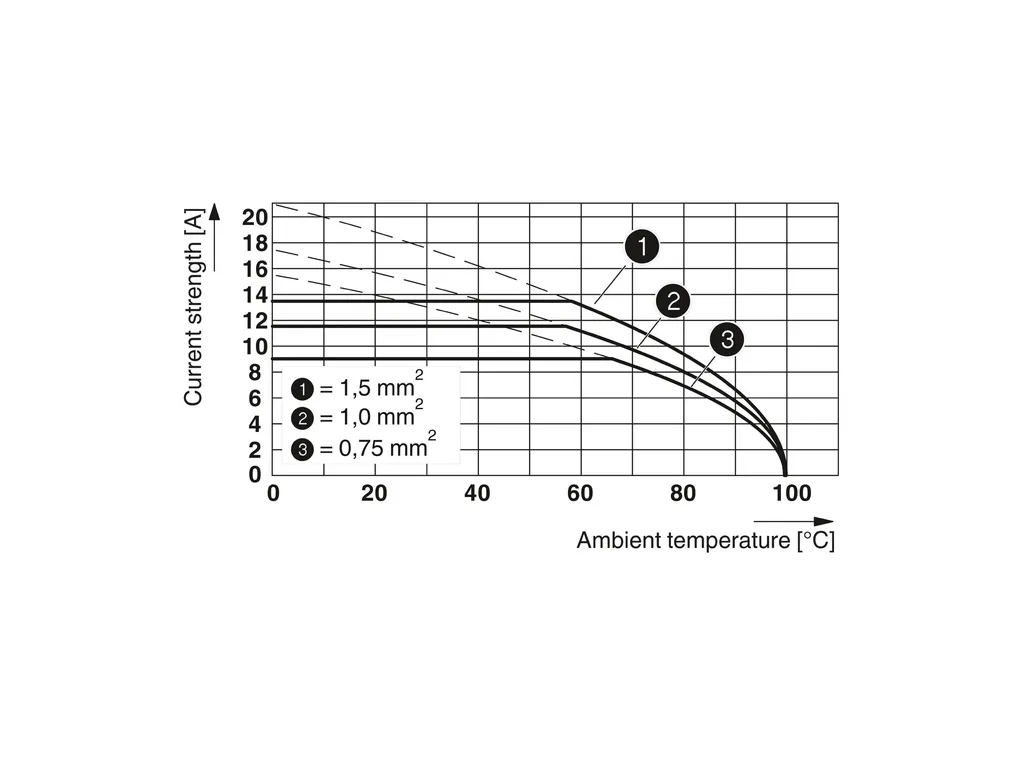

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:1995-03 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60998-2-1:1990-04 Temperature: 850°C Time of exposure: 5 s Ambient conditions Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Dry bag
