1923076 PHOENIX CONTACT -

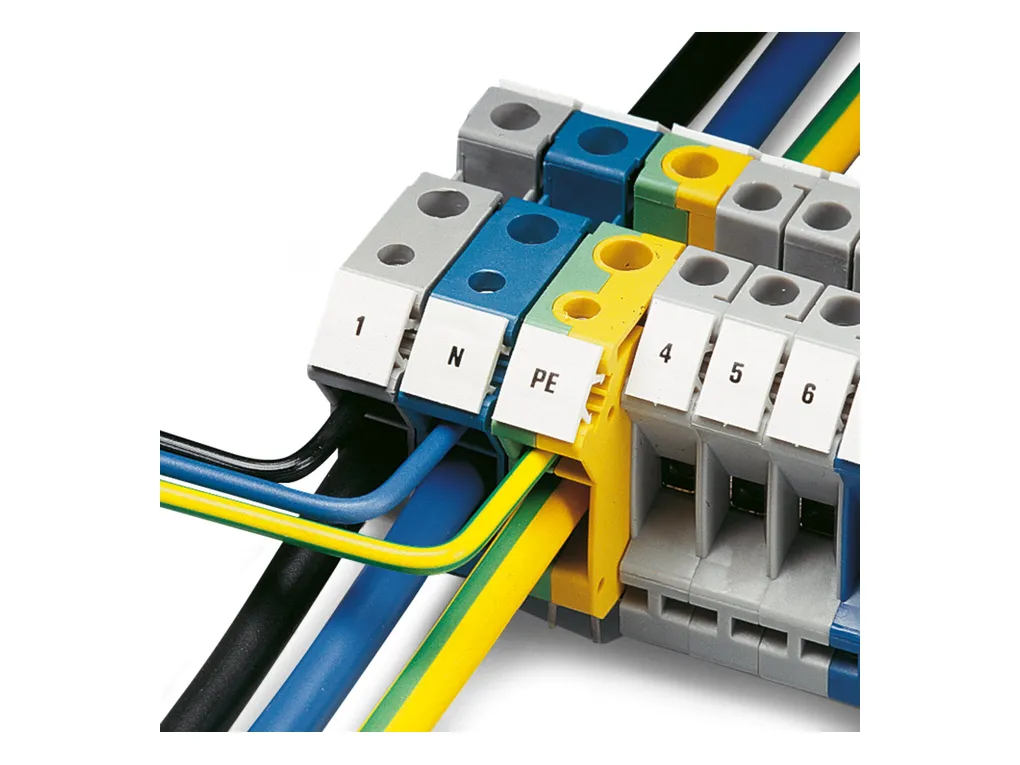

UK 5-TWIN-PE - Ground terminal

1-level ground modular terminal block with single-sided double connection, cross section: 0.2 ... 4 mm², AWG: 24 - 12, width: 6.2 mm, color: green-yellow

Cod. Articolo: 1923076 copia - copy

Cod. Fornitore: 1923076 copia - copy

PHOENIX CONTACT

Product properties	Product type: Ground terminal block Number of connections: 3 Number of rows: 2 Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 1.02 W
Connection data	Grounding foot: Yes Number of connections per level: 3 Nominal cross section: 4 mm² 1 level Screw thread: M3 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 0.6 ... 0.8 Nm Stripping length: 8 mm Connection in acc. with standard: IEC 60947-7-2 Conductor cross section rigid: 0.2 mm² ... 4 mm² Cross section AWG: 24 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 24 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 2.5 mm²
Dimensions	Width: 6.2 mm Height: 50.5 mm Depth on NSÃ32: 52 mm Depth on NSÃ35/7,5: 47 mm Depth on NSÃ35/15: 54.5 mm
Material specifications	Color: green-yellow Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C
Mechanical properties	General Terminal block mounting: 0.6 Nm ... 0.8 Nm (PE foot with mounting screw, M3) Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-2
Mounting	Mounting type: NS 35/7,5 NSÃ35/15 NSÃ32 Terminal block mounting: 0.6 Nm ... 0.8 Nm (PE foot with mounting screw, M3)
