| Product properties | Product line: COMBICON Connectors M Product type: PCB headers Product family: MDSTB 2,5/..-G Number of positions: 16 Pitch: 5.08 mm Number of connections: 32 Number of rows: 2 Mounting flange: without Number of potentials: 32 Pin layout: Linear pinning Solder pins per potential: 1 |
| Electrical properties | Nominal current IN: 10 A Nominal voltage UN: 320 V Degree of pollution: 3 Contact resistance: 2.8 mé Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 400 V Rated surge voltage (II/2): 4 kV |
| Mounting | Mounting type: Wave soldering Pin layout: Linear pinning |
| Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface contact area (top layer): Tin (5 - 7 õm Sn) Metal surface contact area (middle layer): Nickel (2 - 3 õm Ni) Metal surface soldering area (top layer): Tin (5 - 7 õm Sn) Metal surface soldering area (middle layer): Nickel (2 - 3 õm Ni) Material data - housing Color (Housing): green (6021) Insulating material: PBT Insulating material group: IIIa CTI according to IEC 60112: 225 Flammability rating according to UL 94: V0 |
| Notes | Notes on operation: In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2464924391ea904289a8463658d8e4b7/-S204x204-FJPG Pitch: 5.08 mm Width [w]: 83.82 mm Height [h]: 26.9 mm Length [l]: 22.1 mm Installed height: 23.7 mm Solder pin length [P]: 3.2 mm Pin dimensions: 1 x 1 mm PCB design Hole diameter: 1.4 mm |
| Mechanical tests | Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 25 Insertion strength per pos. approx.: 8 N Withdraw strength per pos. approx.: 6 N |
| Electrical tests | Thermal test | Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 12 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMé Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: IIIa Comparative tracking index (IEC 60112): CTI 225 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 4 mm Rated insulation voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 4 mm Rated insulation voltage (II/2): 400 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 4 mm |

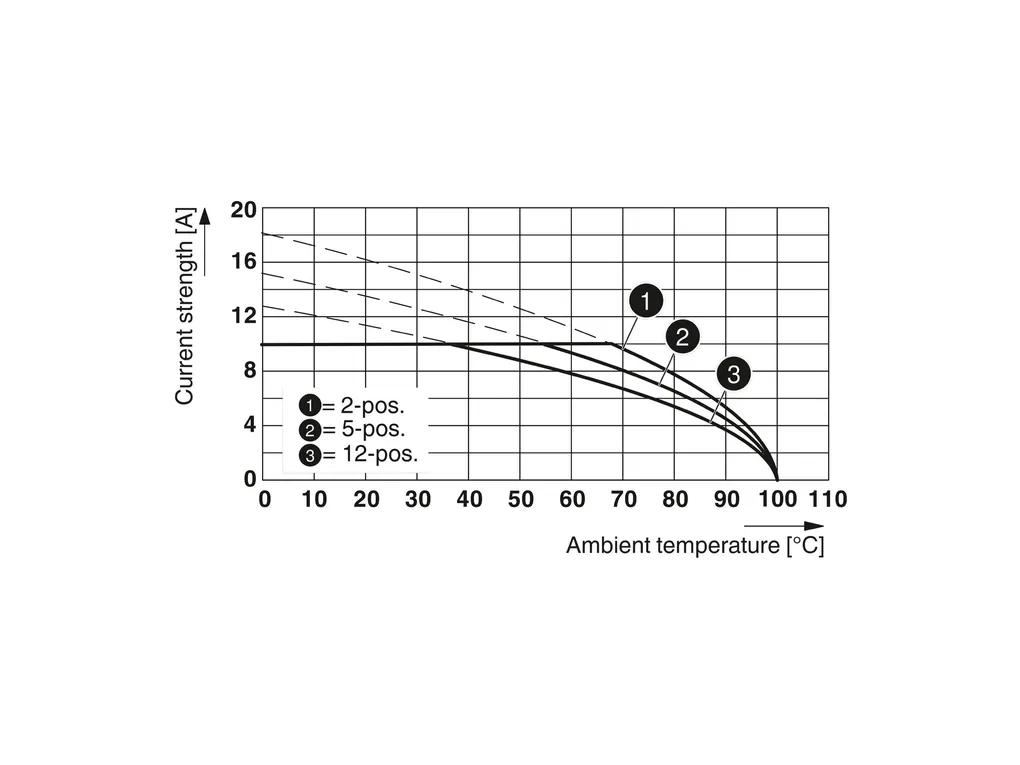

| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 4.8 kV Contact resistance R1: 2.8 mé Contact resistance R2: 2.8 mé Contact resistance R2 2nd level: 2.5 mé Insertion/withdrawal cycles: 25 Insulation resistance, neighboring positions: >Ã5ÃMé Climatic test Specification: ISOÃ6988:1985-02 Corrosive stress: 0.2 dm3 SO2 on 300 dm3/40°C/1 cycle Thermal stress: 100ðC/168Ãh Power-frequency withstand voltage: 2.21 kV Ambient conditions Ambient temperature (operation): -40°C ... 100°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
| Packaging specifications | Type of packaging: packed in cardboard |
