2201526 PHOENIX CONTACT -

EH 90-C CS/ABS GY7035 - Upper part of housing

DIN rail housing, Upper housing part, tall design, no connection opening, width: 90.1 mm, height: 75.27 mm, depth: 36.95 mm, color: light grey (7035)

Cod. Articolo: 2201526 copia - copy

Cod. Fornitore: 2201526 copia - copy

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Product family: EH 90 Type: Upper housing part, tall design, no connection opening Housing type: DIN rail housing Ventilation openings present: no Housing series: EH

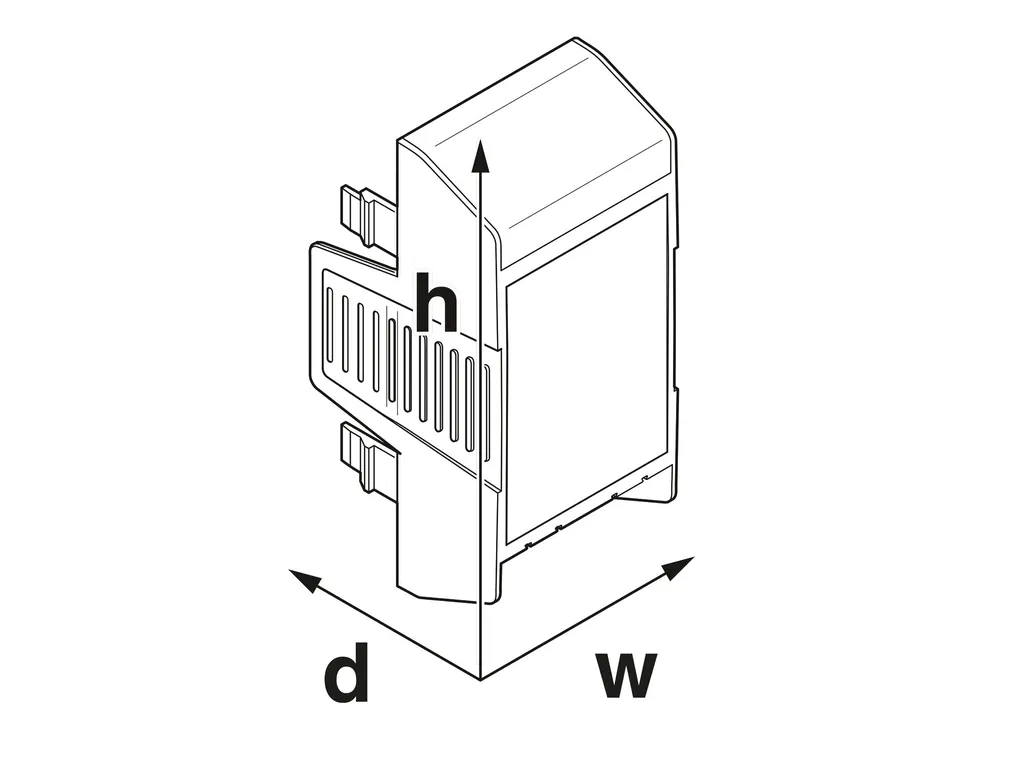

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0af0ef00338de04587d2a8bc62cf44b8/-S204x204-FJPG Width: 90.1 mm Height: 75.27 mm Depth: 36.95 mm Depth from base support surface: 19.95 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 %
PCB data	Type of PCB mount: Latching
Mounting	Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail)
