2202156 PHOENIX CONTACT -

ME MAX GEH-L G 2-2 GY - Housing half shell

DIN rail housing, Housing half shell (left), tall design, width: 6.3 mm, height: 99 mm, depth: 112.85 mm, color: gray (7042)

Cod. Articolo: 2202156 copia - copy

Cod. Fornitore: 2202156 copia - copy

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold)
Product properties	Product type: Housing half shells Type: Housing half shell (left), tall design Housing type: DIN rail housing Housing series: ME-MAX

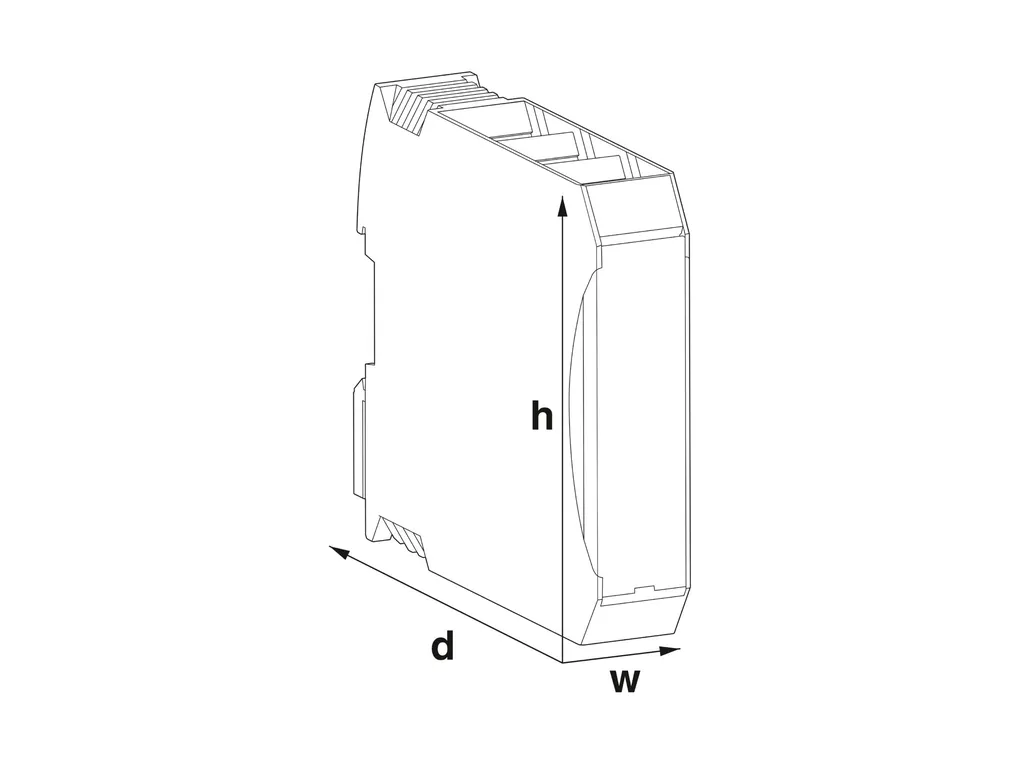

Dimensions	Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 6.3 mm Height: 99 mm Depth: 112.85 mm Depth from top edge of DIN rail: 107 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: gray (7042) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
PCB data	Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail)
