| Notes | Assembly note: Refer to the data sheet for the range in the download area. Recommendation: Material of contact pads for bus connector, galvanic gold (hard gold) |

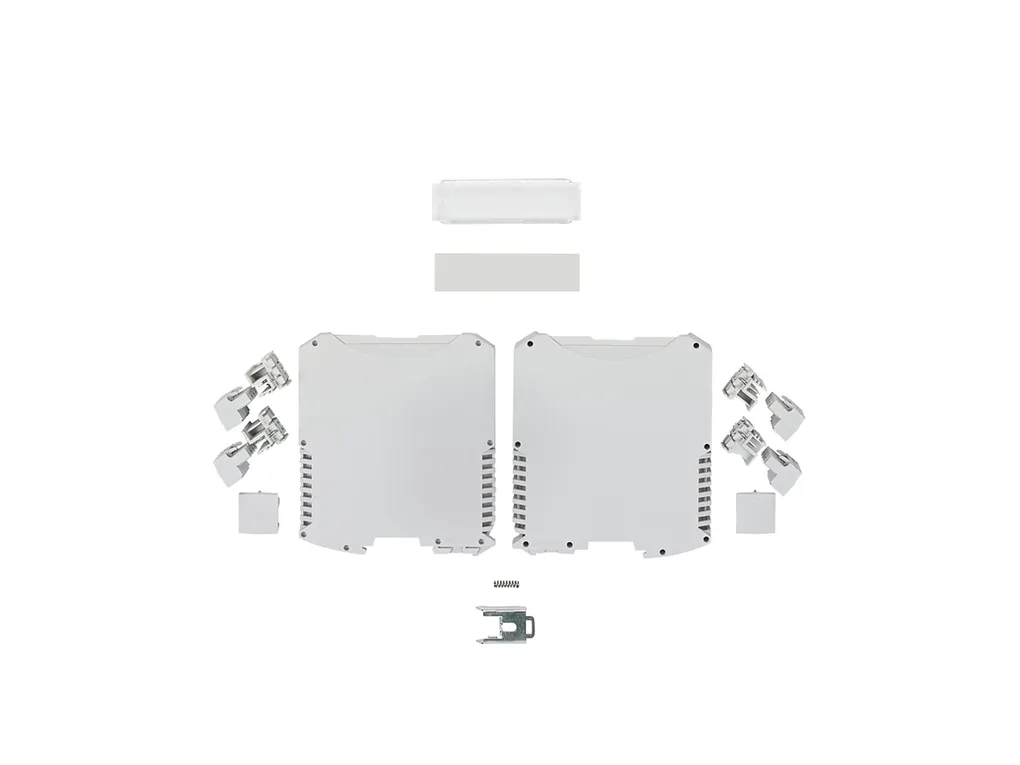

| Product properties | Product type: Stackable housing set Housing type: DIN rail housing Housing series: ME-MAX Product family: ME MAX.. 2-2 Max. number of positions: 16 (pitch: 5 mm) Number of rows: 2 Type: Set consisting of upper housing part and connection technology Ventilation openings present: yes Data management status Article revision: 04 |
| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/22580/full/b1500?format=jpg Width: 22.6 mm Height: 99 mm Depth: 113.65 mm Depth from top edge of DIN rail: 107 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color (Housing): light gray (RAL 7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide Surface characteristics: untreated |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) |
| PCB data | Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: DIN rail mounting |
