2202528 PHOENIX CONTACT -

UM-BASIC 108 100MM DEV-KIT KMGY - Housing set

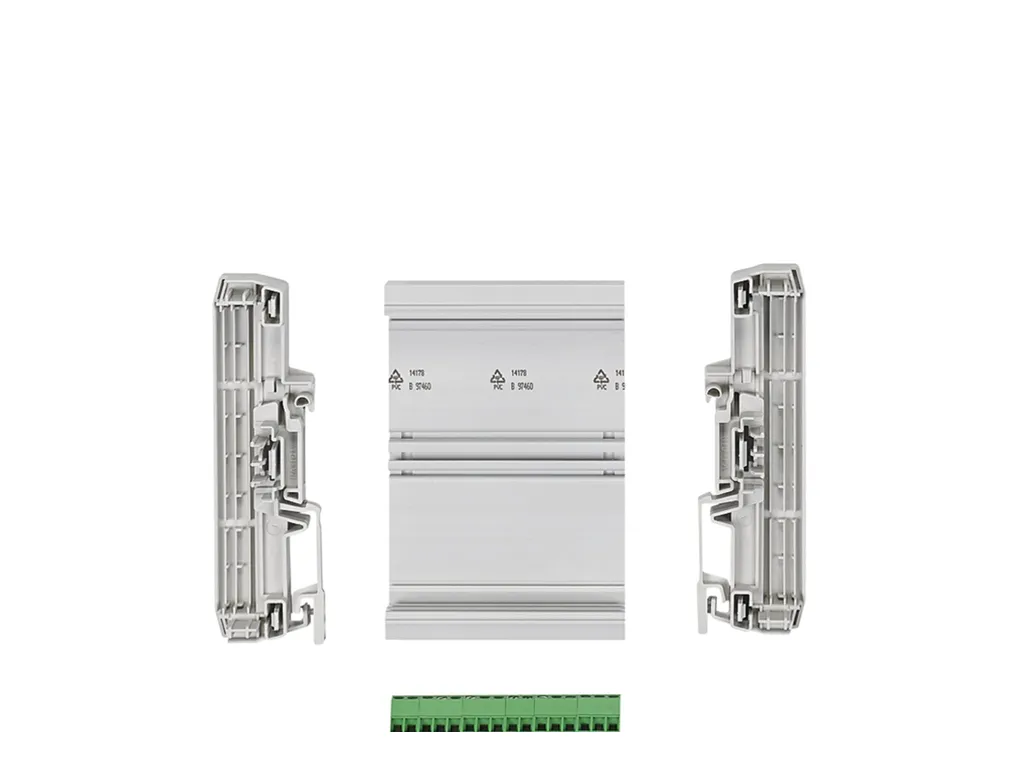

DEV-KIT UM-BASIC: contains 1 x UM-BASIC 100MM profile housing and PCB terminal blocks (SMKDS), supplied in individual parts

Cod. Articolo: 2202528 copia - copy

Cod. Fornitore: 2202528 copia - copy

PHOENIX CONTACT

Notes	General: Please observe the assembly instructions available in the download area.
Product properties	Product type: Stackable housing set Type: incl. 2 lateral elements Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-BASIC
Dimensions	Width: 104 mm Height: 127.8 mm Depth from top edge of DIN rail: 32.45 mm Dimensions: 108 mm x 100 mm (PCB dimensions) PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 Insulating material: PVC Surface characteristics: untreated Housing material: PVC / PA
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -15°C ... 50°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 50°C Ambient temperature (assembly): -5°C ... 50°C Relative humidity (storage/transport): 95 %
PCB data	Number of PCB holders: 3 Type of PCB mount: Insertion/securing with additional elements Total PCB surface: 8630 mm² Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting Mounting position: parallel to the DIN rail
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
