PHOENIX CONTACT 2202583
PHOENIX CONTACT 2202583
PHOENIX CONTACTNon disponibile

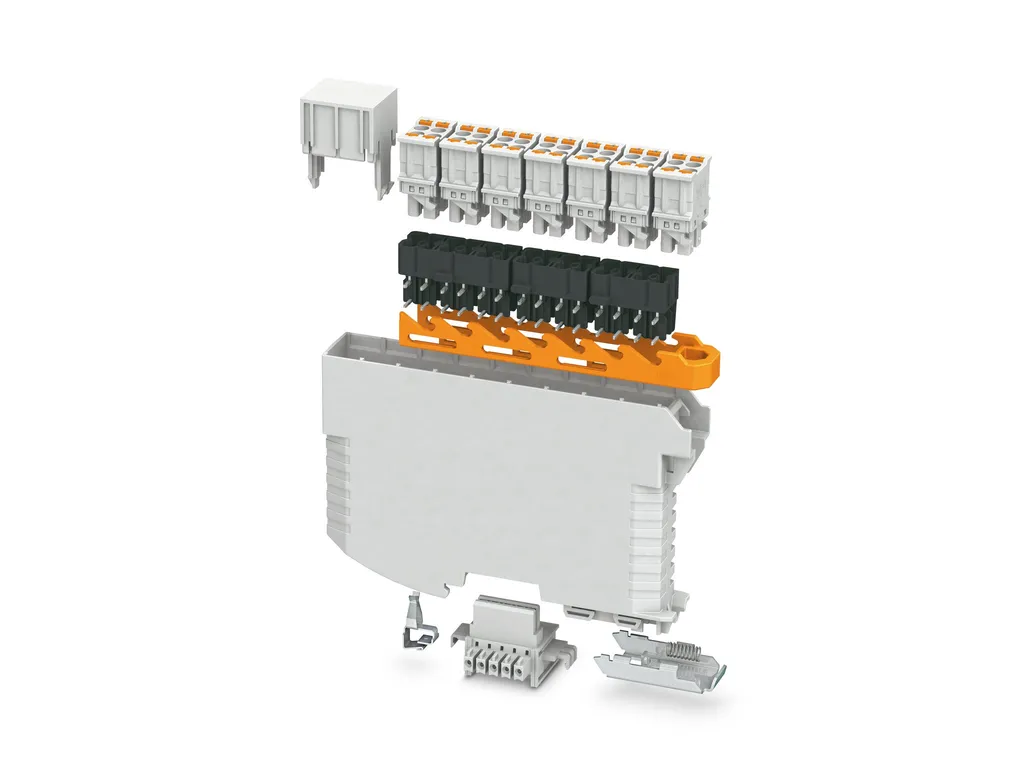

ME-IO 75,2 C 10U 7035 - Housing cover

DIN rail housing, 10U, Housing cover, width: 75.87 mm, height: 109.8 mm, depth: 29.5 mm, color: light grey (7035)
Cod. Articolo: 2202583 copia - copy
Cod. Fornitore: 2202583 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Refer to the data sheet for the range in the download area.
Product propertiesProduct type: Upper housing part
Type: 10U
Housing type: DIN rail housing
Ventilation openings present: no
Housing series: ME-IO
DimensionsWidth: 75.87 mm
Height: 109.8 mm
Depth: 29.5 mm
Material specificationsColor: light grey (7035)
Flammability rating according to UL 94: V0
CTI according to IEC 60112: 600
Surface characteristics: untreated
Housing material: Polyamide
Environmental and real-life conditionsVibration test
Specification: IEC 60068-2-6:2007-12
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1Âoctave/min
Amplitude: 0.15Âmm (10ÂHzÂ...Â58.1ÂHz)
Acceleration: 2g (58.1ÂHzÂ...Â150ÂHz)
Test duration per axis: 2.5 h
Test directions: X-, Y- and Z-axis
Glow-wire test
Specification: IEC 60695-2-11:2014-02
Temperature: 850°C
Time of exposure: 30 s
Thermal stability / ball thrust test
Specification: IEC 60695-10-2:2014-02
Temperature: 125°C
Test duration: 1 h
Force: 20 N
Mechanical strength / tumbling barrel
Specification: IEC 60068-2-31:2008-05
Height of fall: 50Âcm
Frequency: 50
Shocks
Specification: IEC 60068-2-27:2008-02
Pulse shape: Semi-sinusoidal
Acceleration: 15g
Shock duration: 11Âms
Number of shocks per direction: 3
Test directions: X-, Y- and Z-axis (pos. and neg.)
Test for substances that would hinder coating with paint or varnish
Specification: VDMAÂ24364:2018-05
Degree of protection (IP code)
Specification: IEC 60529:1989-11 + AMDÂ1:1999-11 + AMDÂ2:2013-08
Ambient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 55°C
Ambient temperature (assembly): -5°C ... 100°C
Relative humidity (storage/transport): 80 %
MountingMounting type: Snap in
Mounting position: Vertical (horizontal DIN rail)
Packaging specificationsType of packaging: packed in cardboard
Outer packaging type: Carton
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Data_sheet_00251.pdf

Material_description_00001.pdf

Technical_drawing_36280.pdf
