| Product properties | Product type: Stackable housing set Type: Housing set Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Ventilation openings present: yes Housing series: BC |

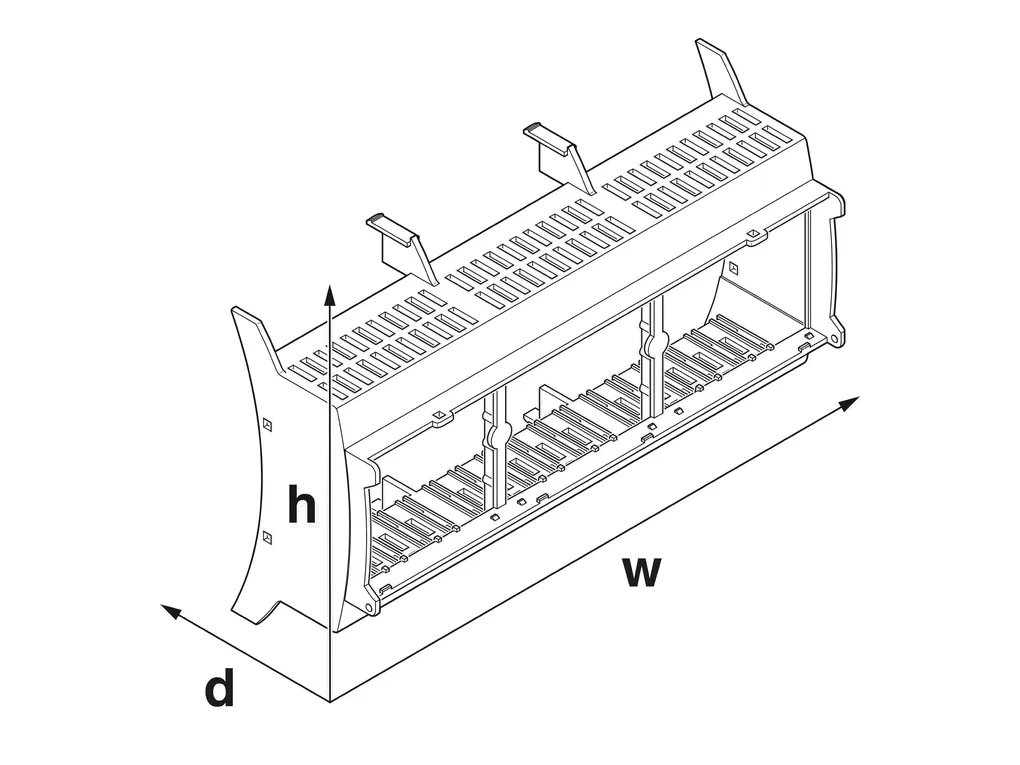

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5bbeb30e7209884fb76db1a26f2f02b4/-S204x204-FJPG Width: 107.6 mm Height: 89.7 mm Depth: 62.2 mm |
| Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 Housing material: Polycarbonate |
| Environmental and real-life conditions | Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.84 Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.72 Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.6 Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.48 Power dissipation single housing for 70°C Ambient temperature: 70°C Reduction factor: 0.38 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C |
| PCB data | Type of PCB mount: Latching |
| Mounting | Mounting type: Snap in |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
