PHOENIX CONTACT 2276625
PHOENIX CONTACT 2276625
PHOENIX CONTACTNon disponibile

PACT-FAST-MNT-W13-L65 - Mounting material

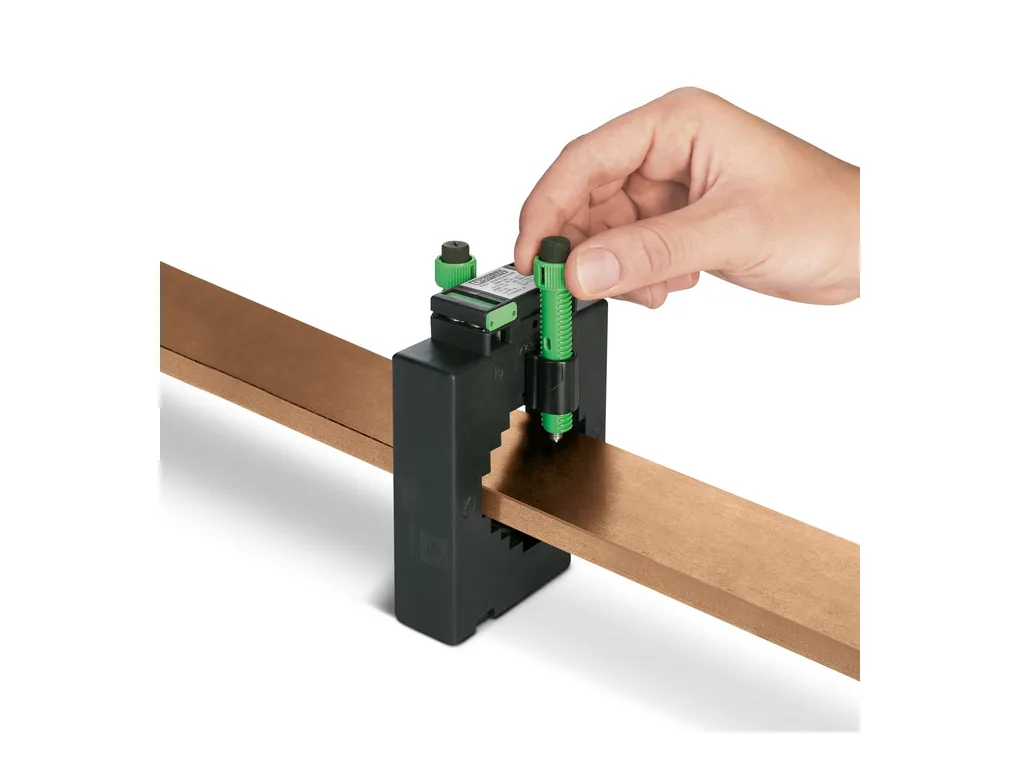

The transformer quick-action mechanism enables the lightning-fast mounting of PACT current transformers on the power rail. The installation can be completed easily by hand without the use of tools. Fixing pins: 65 mm, holding latches: 13 mm
Cod. Articolo: 2276625 copia - copy
Cod. Fornitore: 2276625 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The 16 mm wide converter attachment can also be used for larger current transformers if the length of the fixing pins is sufficient.
Product propertiesProduct type: Mounting material
Connection dataTightening torque: 0.4 Nm
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c4f4cee2c2477d478d8ac67148987b84/-S204x204-FJPG
Width: 13 mm
Depth: 65 mm
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -25°C ... 120°C
