PACT MCR-V1-21-44-400-5A-1 - Current transformer

Bus-bar current transformer, 400 A AC primary current; 5 A AC secondary current; accuracy class 1; 5 VA rated power

Cod. Articolo: 2277051 copia - copy

Cod. Fornitore: 2277051 copia - copy

PHOENIX CONTACT

Product properties	Product type: Current transformer
Electrical properties	Rated insulation voltage: 1 kV (Phase/neutral conductor) General Can be calibrated: no Converter type: Bus-bar current transformer
Input data	Current transformers Rated power: 5 VA Thermal rated short-time current: I_th = 60 * I_n Thermal rated continuous current: I_d = 1.2 * I_n Rated surge current: I_dyn = 2.5 * I_th Rated frequency f_n: 50 Hz 60 Hz Primary rated current I_pn: 0 A AC ... 400 A AC Primary rated current range: 1 A AC ... 4000 A AC (depends on type) Can be calibrated: no Converter type: Bus-bar current transformer
Output data	Signal Designation: Current output Secondary rated current I_sn: 5 A AC Surge current limitation factor: FS 5 Accuracy class: 1
Connection data	Connection method: Screw connection Conductor cross section flexible: 2x 2.5 mm² ... 4 mm² (Secondary terminals)

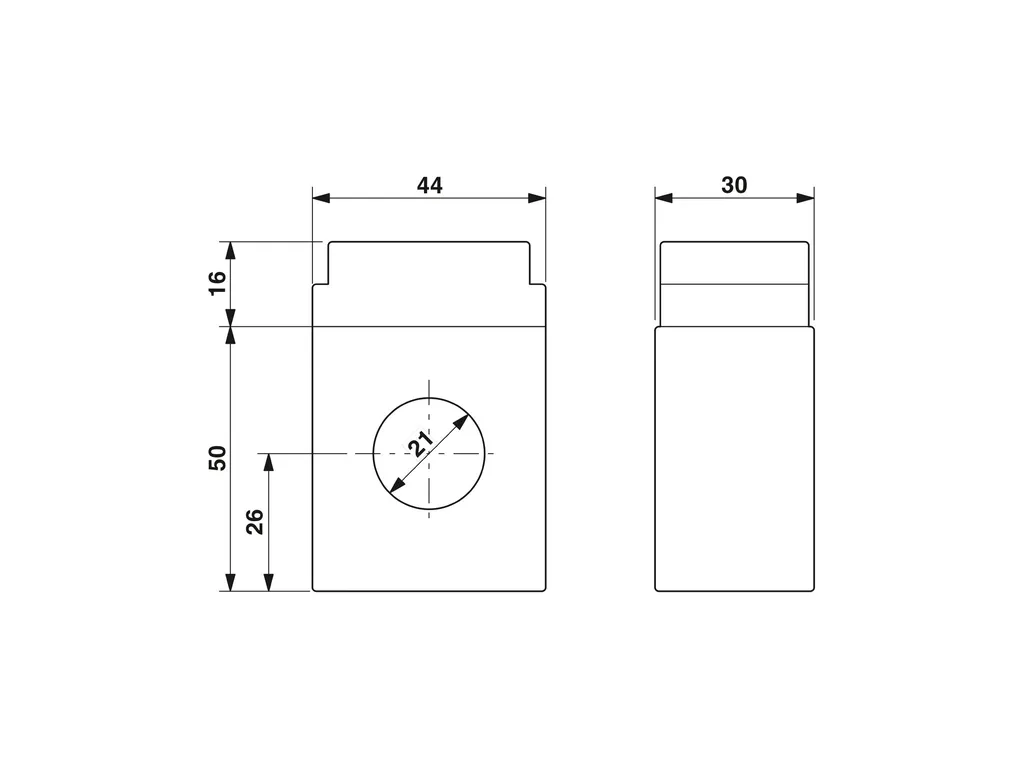

Dimensions	Item dimensions Width: 30 mm Height: 66 mm Depth: 44 mm Item dimensions with alternative mounting Width: 44 mm Height: 66 mm Depth: 30 mm Circular conductor Diameter: 21 mm
Material specifications	Housing material: PA 6.6
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 40°C Ambient temperature (storage/transport): -25°C ... 40°C Altitude: Ã¢Ã¢°¤ 1000 m Permissible humidity (operation): Use only indoors, non-condensing
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: XODW8.E323953 UL data Primary rated current range: 50 A AC ... 400 A AC 500 A AC ... 800 A AC 1000 A AC ... 1600 A AC Temperature increase: 55°C (At a primary rated current of 50ÃAÃACÃ...Ã400ÃAÃAC) 65°C (At a primary rated current of 500ÃAÃACÃ...Ã800ÃAÃAC) 80°C (At a primary rated current of 1000ÃAÃACÃ...1600ÃAÃAC) Ambient temperature (operation): -25°C ... 30°C (Up to a primary rated current of 1600ÃAÃAC)
Standards and regulations	Standards/regulations: ENÃ61869
Mounting	Mounting type: DIN rail mounting
