| Product properties | Product type: Current transformer |
| Electrical properties | Rated insulation voltage: 1 kV (Phase/neutral conductor) General Can be calibrated: no Converter type: Window-type current transformer |
| Input data | Current transformers Rated power: 5 VA Thermal rated short-time current: Ith = 60 * In Thermal rated continuous current: Id = 1.2 * In Rated surge current: Idyn = 2.5 * Ith Rated frequency fn: 50 Hz 60 Hz Primary rated current Ipn: 0 A AC ... 500 A AC Primary rated current range: 1 A AC ... 4000 A AC (depends on type) Can be calibrated: no Converter type: Window-type current transformer |
| Output data | Signal Designation: Current output Secondary rated current Isn: 5 A AC Surge current limitation factor: FS 5 Accuracy class: 1 |
| Connection data | Connection method: Screw connection Conductor cross section flexible: 2x 2.5 mm² ... 4 mm² (Secondary terminals) |

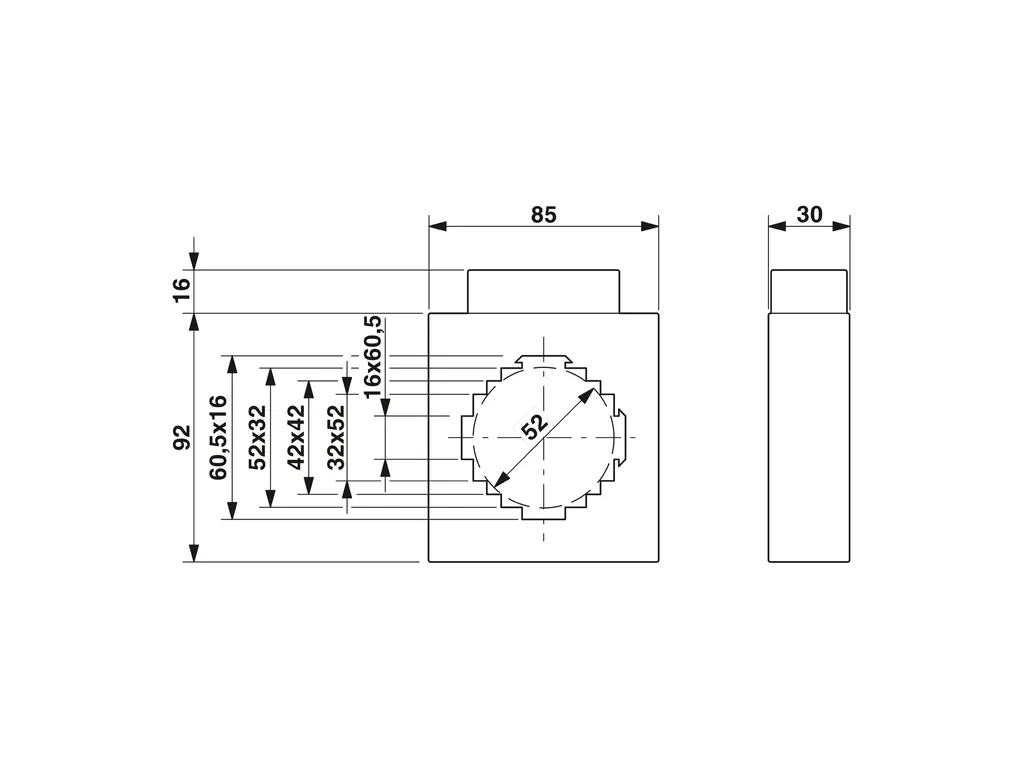

| Dimensions | Item dimensions Width: 30 mm Height: 108 mm Depth: 85 mm Item dimensions with alternative mounting Width: 85 mm Height: 108 mm Depth: 30 mm Copper rail Width: 60 mm Height: 15 mm Copper railÃ2 Width: 50 mm Height: 10 mm Copper railÃ3 Width: 40 mm Height: 40 mm Circular conductor Diameter: 52 mm |
| Material specifications | Housing material: PA 6.6 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 40°C Ambient temperature (storage/transport): -25°C ... 40°C Altitude: ââ°¤ 1000 m Permissible humidity (operation): Use only indoors, non-condensing |
| Approvals | UL, USA/Canada Identification: XODW8.E323953 |
| Standards and regulations | Standards/regulations: ENÃ61869 |
| Mounting | Mounting type: DIN rail mounting |
