MCR-SL-CUC-400-I - Universal current transducer

Universal current transducer, for measuring DC, AC, and distorted currents, 0 ... 400 A input current, 4 ... 20 mA output

Cod. Articolo: 2308072 copia - copy

Cod. Fornitore: 2308072 copia - copy

PHOENIX CONTACT

Product properties	Product type: Current transducer Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Linearity error: <Ã± 1 % (From the range end value) Maximum power dissipation for nominal condition: 1 W Step response (10-90%): 150 ms Temperature coefficient, typical: 0.02 %/K (0Ã°CÃ...Ã60Ã°C) 0.04 %/K (-40Ã°CÃ...Ã65Ã°C) Maximum transmission error: <Ã± 1 % (of final value) Rated insulation voltage: 300 VÃAC Electrical isolation Input/output Test voltage: 3.5 kV AC (50ÃHz, 60Ãs) Electrical isolation Input/power supply Test voltage: 3.5 kV AC (50ÃHz, 60Ãs) General Accuracy class: 1 Supply Nominal supply voltage: 24 VÃDC Supply voltage range: 20 VÃDC ... 30 VÃDC Max. current consumption: (30 + I_OUT) mA Power consumption: 1.65 W
Input data	Measurement Number of inputs: 1 Input current range: 0 A AC/DC ... 400 A AC/DC Overload capacity: 2.5 x I_IN Frequency measuring range: 20 Hz ... 6000 Hz (0ÃHz) Curve type: AC, DC or distorted currents Current transformers Rated frequency: Standard converter: 20 Hz ... 6000 Hz Primary rated current I_pn: 400 A Accuracy class: 1
Output data	Signal: Current Current output signal: 4 mA ... 20 mA Max. current output signal: < 25 mA Load/output load current output: < 300 Ã©
Connection data	Connection method: Push-in connection Through connection Stripping length: 10 mm Conductor cross section rigid: 0.25 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12

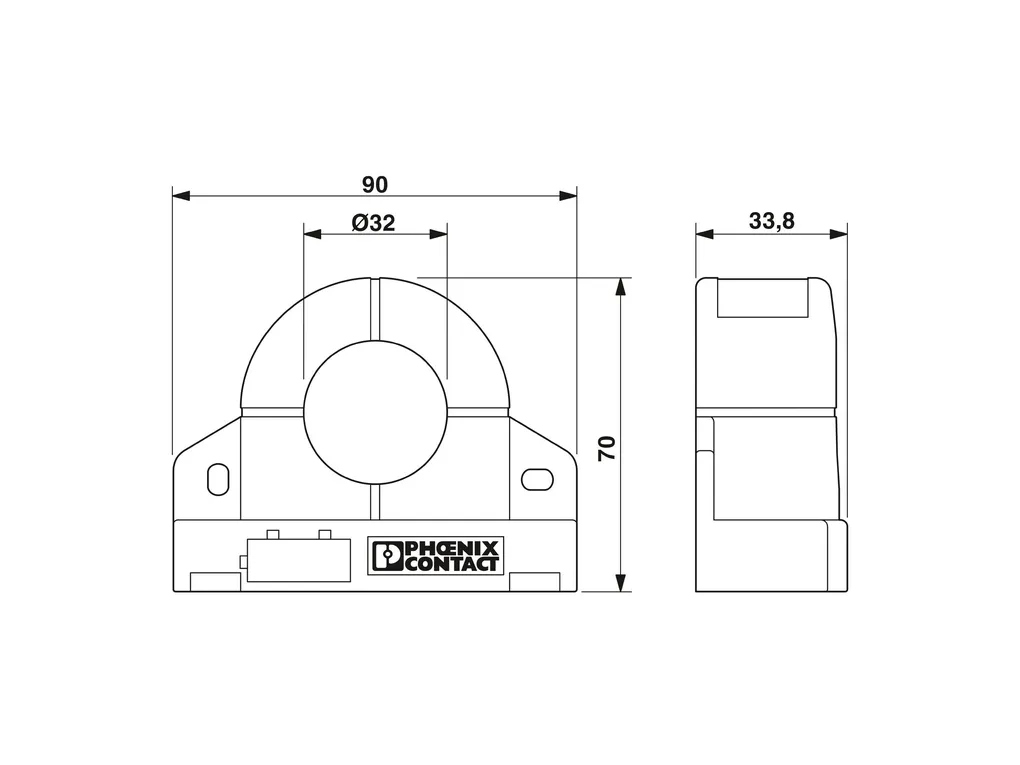

Dimensions	Item dimensions Width: 90 mm Height: 33.8 mm Depth: 85 mm Circular conductor Diameter: 32 mm
Material specifications	Housing material: Frianyl B63 V0 GV30
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 65°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508
EMC data	Noise immunity: EN 61000-6-2 Noise emission: EN 61000-6-4
Mounting	Mounting type: DIN rail mounting
