| Product properties | Product type: Current transducer Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Linearity error: <ñ 1 % (From the range end value) Maximum power dissipation for nominal condition: 1 W Step response (10-90%): 150 ms Temperature coefficient, typical: 0.02 %/K (0ðCÃ...Ã60ðC) 0.04 %/K (-40ðCÃ...Ã65ðC) Maximum transmission error: <ñ 1 % (of final value) Rated insulation voltage: 300 VÃAC Electrical isolation Input/output Test voltage: 3.5 kV AC (50ÃHz, 60Ãs) Electrical isolation Input/power supply Test voltage: 3.5 kV AC (50ÃHz, 60Ãs) Supply Nominal supply voltage: 24 VÃDC Supply voltage range: 20 VÃDC ... 30 VÃDC Max. current consumption: 30 mA |
| Input data | Measurement Number of inputs: 1 Configurable/programmable: no Input current range: 0 A AC/DC ... 200 A AC/DC Overload capacity: 3 x IIN Frequency measuring range: 20 Hz ... 6000 Hz (0ÃHz) Curve type: AC, DC or distorted currents |
| Output data | Signal: Voltage Voltage output signal: 0 V ... 10 V Load/output load voltage output: ââ°¥ 10 ké |
| Connection data | Connection method: Push-in connection Through connection Stripping length: 10 mm Conductor cross section rigid: 0.25 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |

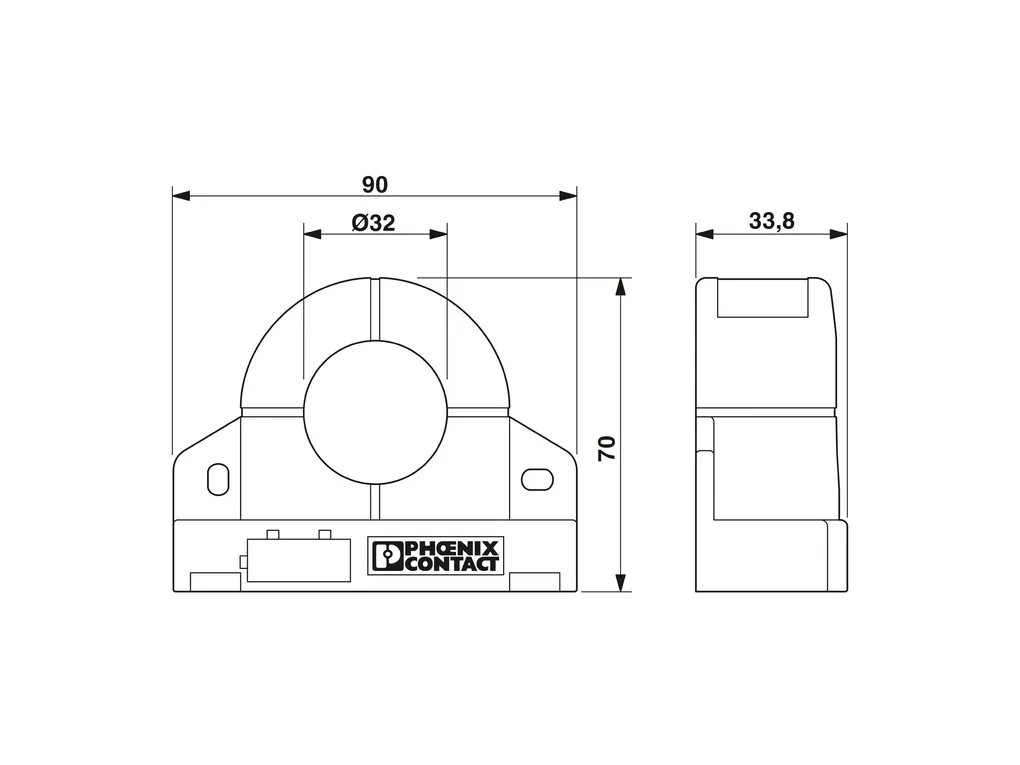

| Dimensions | Item dimensions Width: 90 mm Height: 33.8 mm Depth: 85 mm Circular conductor Diameter: 32 mm |
| Material specifications | Housing material: Frianyl B63 V0 GV30 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 65°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508 |
| Mounting | Mounting type: DIN rail mounting |
