2688491 PHOENIX CONTACT -

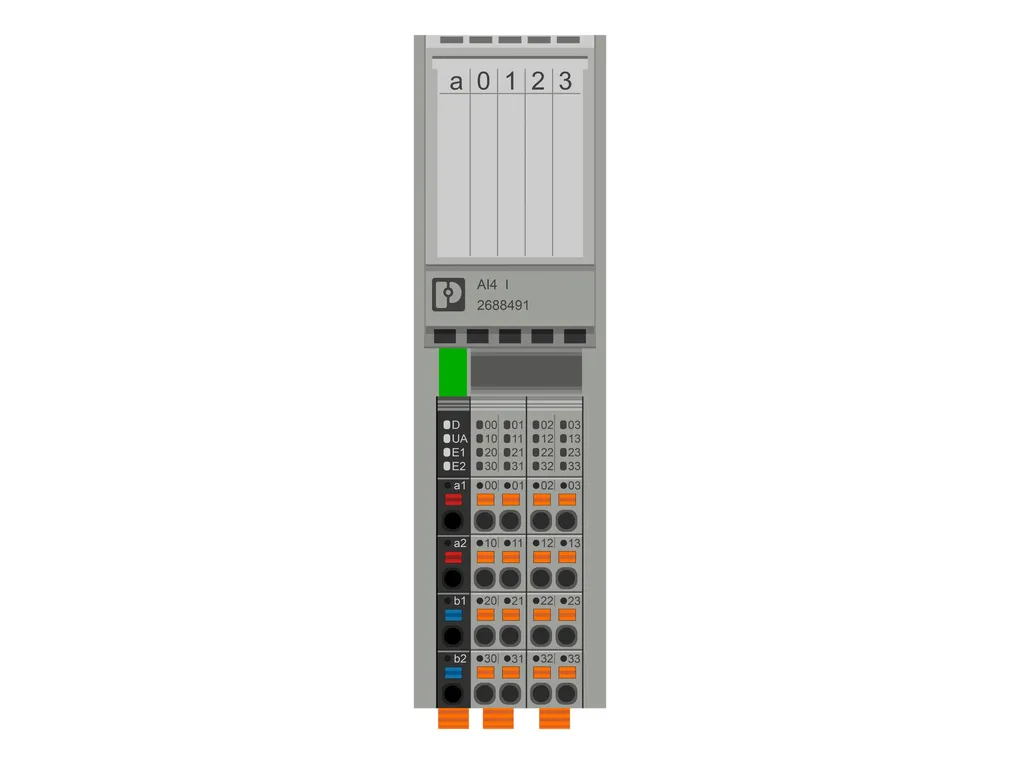

AXL F AI4 I 1H - Analog module

AxiolineF, Analog input module, Analog inputs: 4, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-, 3-, 4-conductor, transmission speed in the local bus: 100 Mbps, integrated sensor supply, degree of protection: IP20, including bus base module and AxiolineF connectors

Cod. Articolo: 2688491 copia - copy

Cod. Fornitore: 2688491 copia - copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/172c7c5767999646b422d3edebda44f8/-S204x204-FJPG Width: 35 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715).
Interfaces	AxiolineÃFÃlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps
System properties	Module Input address area: 8 Byte Output address area: 8 Byte Required parameter data: 7 Byte Required configuration data: 6 Byte
Input data	Analog Input name: Analog inputs Description of the input: Differential inputs, current Number of inputs: 4 A/D conversion time: 31.25 Ãµs A/D converter resolution: 16 bit Connection method: Push-in connection Connection technology: 2-, 3-, 4-conductor Note regarding the connection technology: shielded Current input signal: 0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA Input resistance current input: 104 Ã© (typical) Data formats: IB IL, S7-compatible Input filter: 30 Hz, 12 kHz and mean-value generation (can be parameterized) Limit frequency (3 dB): 30 Hz 12 kHz Measured value representation: 16 bits (15 bits + sign bit) Protective circuit: Transient protection of inputs; Suppressor diode Overload protection of the inputs; No; Ã±5.2ÃVÃDC, maximum, I_max = 50ÃmA
Product properties	Type: block modular Product type: I/O component Product family: AxiolineÃF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineÃF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, ENÃ60664-1) Pollution degree: 2 (IEC 60664-1, ENÃ60664-1)
Electrical properties	Maximum power dissipation for nominal condition: 4.08 W Potentials Power consumption: typ. 1.51 W (Device, total, plus the power consumption of the external sensors) max. 1.83 W (Device, total, plus the power consumption of the external sensors) Potentials: AxiolineÃF local bus supply (U Supply voltage: 5 VÃDC (via bus base module) Current draw: max. 150 mA typ. 120 mA Power consumption: max. 0.75 W typ. 0.6 W Potentials: Supply for analog modules (U Supply voltage: 24 VÃDC (I/O supply and sensor supply) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 245 mA (I_iS = 4 x 50 mA (full load)) max. 45 mA (I_iS = 0 mA) typ. 118 mA (I_iS = 4 x 20 mA (nominal load)) max. 125 mA (I_iS = 4 x 20 mA (nominal load)) typ. 238 mA (I_iS = 4 x 50 mA (full load)) Power consumption: max. 5.88 W (Full load) Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; up to HWÃ02: polarity protection diodefrom HWÃ03: parallel diode; with external 5ÃA fuse (for startup only) Transient protection; Suppressor diode Supply: Designation: Sensor supply U_iS Supply voltage: 24 VÃDC (from U_A) Current consumption: max. 50 mA (per channel) Electrical isolation/isolation of the voltage ranges Test voltage: 5ÃV supply of the local bus (U_Bus) / 24ÃV supply (I/Os): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (U_Bus)/analog inputs: 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (U_Bus) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (I/O)/analog inputs: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: Analog inputs/functional ground: 500 VÃAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: AxiolineÃF connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineÃF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)
