2700453 PHOENIX CONTACT -

NLC-055-024D-08I-04QTP-00A - Base unit

24VDC Nanoline base unit. Equipped with 8 digital inputs, 2analog (0-10V) inputs and 4PNP digital output channels. Additional I/O channels can be added using a maximum of three I/O extension modules. Optional communication modules provide network or serial connectivity. Optional Operator Panel provides user interface. Programming is via nanoNavigator.

Cod. Articolo: 2700453 copia - copy

Cod. Fornitore: 2700453 copia - copy

PHOENIX CONTACT

Product properties	Product type: Base unit Product family: Nanoline
System properties	System requirements Engineering tool: nanoNavigator 3 or above
Electrical properties	Supply Supply voltage: 24 VÃDC (Power available to the I/O and Communications modules) Supply voltage range: 19.2 VÃDC ... 30 VÃDC Power supply connection: Screw connection Max. current consumption: 250 mA Typical current consumption: 100 mA Real-time clock Realtime clock: Yes (battery-backed) Description realtime clock: Ã±2 s/day @ 25°C Ã±4 s/day @ -20°C ... +60°C Lithium BR2330
Input data	Analog Description of the input: Analog input Number of inputs: 2 A/D converter resolution: 12 bit (monotonic) Connection technology: Screw connection Voltage input signal: 0 VÃDC ... 10 VÃDC Input resistance of voltage input: 20 kÃ© Input filter: Digital Limit frequency (3 dB): 1 Hz (3 dB) Measuring principle: Successive approximation Protective circuit: Transient voltage suppression Digital Input name: Digital inputs Description of the input: EN 61131-2 type 1 NPN/PNP Number of inputs: 8 Connection method: Screw connection Input voltage range "0" signal: 0 VÃDC ... 5 VÃDC Input voltage range "1" signal: 15 VÃDC ... 30 VÃDC Nominal input voltage U_IN: 24 VÃDC Nominal input current at U_IN: 5 mA DC (On) < 100 mA (Off) Typical response time: 60 Ãµs (on) 70 Ãµs (OFF) Counter Number of inputs: 2 Input frequency: 6 kHz
Output data	Digital Output name: Digital outputs Output description: PNP outputs Connection method: Screw connection Number of outputs: 4 Protective circuit: Short-circuit and overload protection Maximum output current per channel: 500 mA Maximum output current per module / terminal block: 2 A Nominal output voltage: 24 VÃDC Nominal load, inductive: 12 VA Nominal load, lamp: 12 W Nominal load, ohmic: 12 W Maximum operating frequency with ohmic nominal load: 100 Hz
Connection data	Connection method: Screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Interfaces	Operator Panel Connection method: RJ45 / COMBICON RS-232 Connection method: Slot 1 USB Connection method: Slot 1

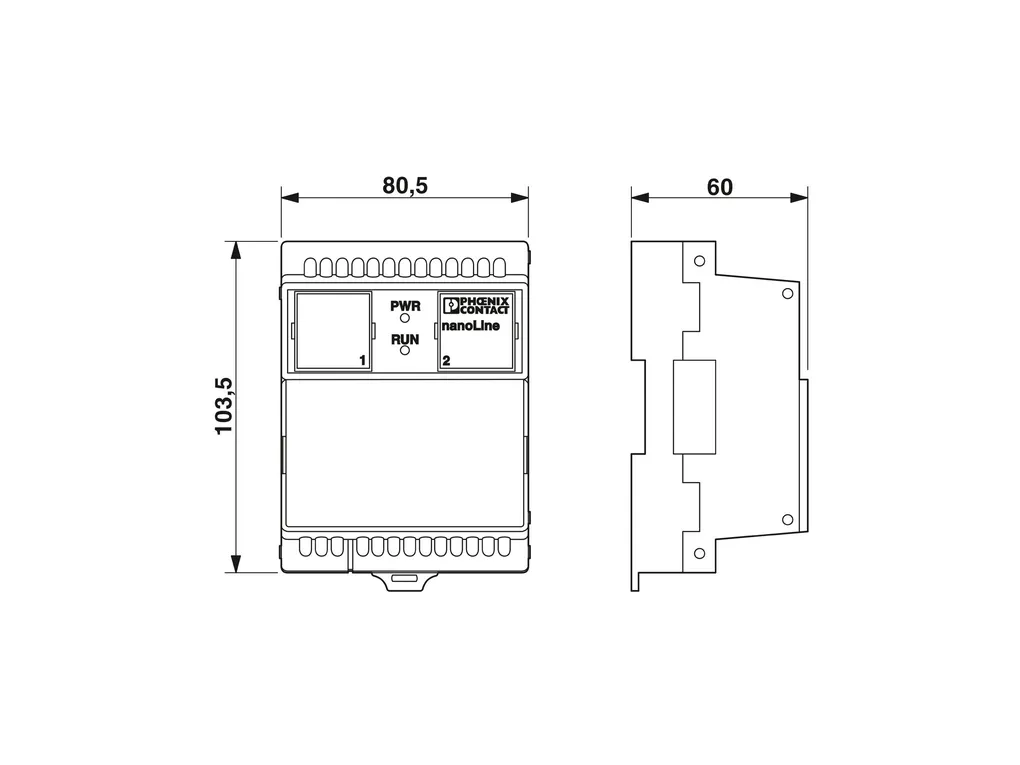

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f10889ffa636a459d335e433f48a7b7/-S204x204-FJPG Width: 80.5 mm Height: 103.5 mm Depth: 60 mm
Material specifications	Color: white
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 90 % Permissible humidity (storage/transport): 90 %
Mounting	Mounting type: DIN rail mounting
