| Product properties | Product type: Coaxial cable |
| Electrical properties | Frequency range: 0.3 GHz ... 6 GHz Impedance: 50 é |

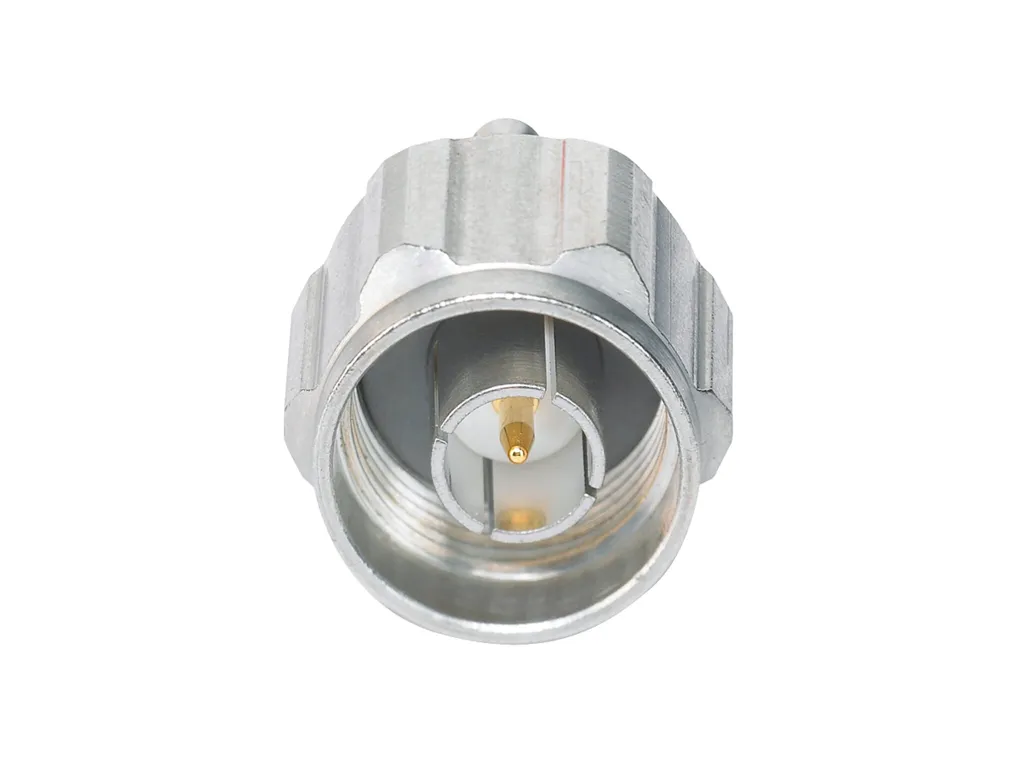

| Connection data | Connection method: N (male) |
| Material specifications | Outer sheath, material: RADOXî(LSFH) |
| Cable/line | Cable length: 0.5 m Cable type: EF 142 External cable diameter: 5 mm Outer sheath, material: RADOXî(LSFH) External sheath, color: black Bending radius, long-term: 30 mm 868 / 900 MHz: ~ 0.3 dB (Attenuation of entire cable) 2.4 GHz: ~ 0.5 dB (Attenuation of entire cable) 5.8 GHz: ~ 0.8 dB (Attenuation of entire cable) Resistance to oil: very good oil and chemical resistance |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C Ambient temperature (storage/transport): -40°C ... 105°C Ambient temperature (assembly): -20°C ... 60°C Resistance to oil: very good oil and chemical resistance |
| Approvals | CE Certificate: CE-compliant |
| Standards and regulations | Resistance to oil: very good oil and chemical resistance Standard designation: Flame retardancy Halogen-free UV resistance Standards/specifications: DINÃENÃ60332-1-2 ULÃ1581 IEC 60754 IEC 60068-2-5 |
| Mounting | Assembly instructions: Outdoors and indoors |
