2701493 PHOENIX CONTACT -

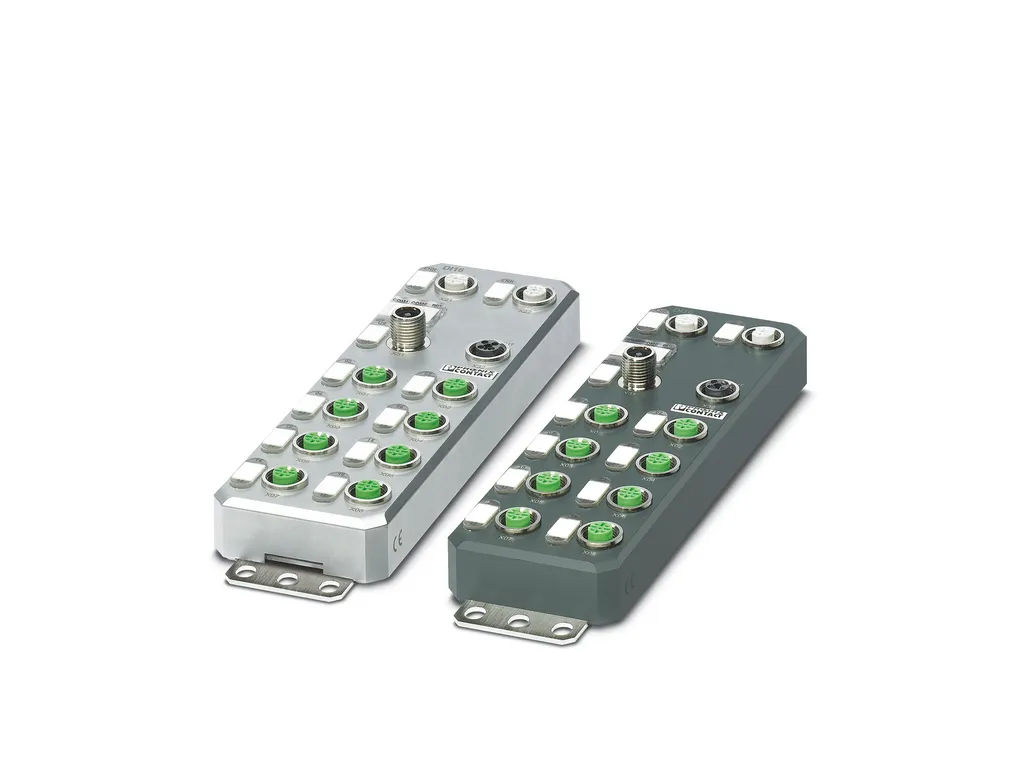

AXL E EIP DI16 M12 6P - Digital module

AxiolineE, Digital input device, EtherNet/IPÃ¢â¢, M12 fast connection technology, Digital inputs: 16, 24 VDC, connection technology: 4-conductor, Plastic housing, degree of protection: IP65/IP67

Cod. Articolo: 2701493 copia - copy

Cod. Fornitore: 2701493 copia - copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b1c003a181894d4f8ddc9482edbf941e/-S204x204-FJPG Width: 60 mm Height: 185 mm Depth: 30.5 mm Drill hole spacing: 198.5 mm Note on dimensions: The height is 212 mm including fixing clips.
Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Material specifications	Housing material: Pocan^Ã® Color: anthracite
Interfaces	EtherNet/IPÃ¢Ã¢¢ Number of interfaces: 2 No. of channels: 2 Connection method: M12 fast connection technology Note on the connection method: D-coded Number of positions: 4 Transmission speed: 10/100 Mbps (with auto negotiation) EtherNet/IPÃ¢Ã¢¢Ã¢Ã¢¬Ã¢¹ Equipment type: EtherNet/IPÃ¢Ã¢¢ device System-specific protocols: EtherNet/IPÃ¢Ã¢¢ protocols ACD EtherNet/IPÃ¢Ã¢¢ protocols DLR EtherNet/IPÃ¢Ã¢¢ protocols IGMP v2 Protocols supported: SNMP v1 HTTP TFTP FTP BootP DHCP Specification: CIP Edition 3.11 EIP adaptation of CIP 1.12
Input data	Digital Input name: Digital inputs Description of the input: EN 61131-2 types 1 and 3 Number of inputs: 16 Cable length: max. 30 m (to the sensor) Connection method: M12 connector, double occupancy Connection technology: 4-conductor Input voltage range "0" signal: 0 V ... 5 VÃDC Input voltage range "1" signal: 11 VÃDC ... 30 VÃDC Nominal input voltage U_IN: 24 VÃDC Nominal input current at U_IN: typ. 3 mA Sensor current per channel: typ. 75 mA (from U_S) Total sensor current: max. 1.2 A (per device) Input filter time: < 1000 Ãµs Protective circuit: Overload protection, short-circuit protection of sensor supply
Product properties	Type: Stand-Alone Product type: I/O component Product family: AxiolineÃE
Electrical properties	Potentials Voltage supply U_S: 24 VÃDC Power supply at U_S: max. 4 A Current consumption from U_S: typ. 8 mA max. 1.2 A Supply: Module electronics and sensors Designation: Supply of module electronics and sensors (U_S) Connection method: M12 connector (T-coded) Number of positions: 4 Supply voltage: 24 VÃDC Supply voltage range: 18 VÃDC ... 31.2 VÃDC (including all tolerances, including ripple) Current consumption: typ. 190 mA Ã±15Ã% (at 24 V DC) max. 12 A Supply: Actuators Designation: Supply of actuators (U_A) for additional devices Connection method: M12 connector (T-coded) Number of positions: 4 Supply voltage: 24 VÃDC Supply voltage range: 18 VÃDC ... 31.2 VÃDC (including all tolerances, including ripple) Current consumption: typ. 3 mA Ã±15Ã% (at 24 V DC) max. 12 A Electrical isolation/isolation of the voltage ranges Test voltage: 24 V supply (communications power and sensor supply, digital inputs)/bus connection (EthernetÃ1): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (communications power and sensor supply, digital inputs)/bus connection (EthernetÃ2): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (communications power and sensor supply, digital inputs)/FE: 500 VÃAC, 50 Hz, 1 min. Test voltage: Bus connection (EthernetÃ1)/FE: 500 VÃAC, 50 Hz, 1 min. Test voltage: Bus connection (EthernetÃ2)/FE: 500 VÃAC, 50 Hz, 1 min. Test voltage: Bus connection (EthernetÃ1)/bus connection (EthernetÃ2): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/24 V supply (communications power and sensor supply, digital inputs): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/bus connection (EthernetÃ1): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/bus connection (EthernetÃ2): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/FE: 500 VÃAC, 50 Hz, 1 min.
Connection data	Connection method: M12 connector
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP65/IP67 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 5 % ... 95 % Permissible humidity (storage/transport): 5 % ... 95 %
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Mounting	Mounting type: Wall mounting
