| Product properties | Type: Stand-Alone Product type: Wireless module Application: Ethernet Insulation characteristics Pollution degree: 2 Wireless card Number: 1 Type: IEEE 802.11 a/b/g/n 2.4ÃGHz and 5ÃGHz to 300 Mbps Assembly instructions: Permanently installed |
| Electrical properties | Maximum power dissipation for nominal condition: 3.6 W Supply: Module electronics Connection technology: COMBICON Connection method: Push-in spring connection Note on the connection method: Recommended conductor cross section: 0.75 mm² Recommended ferrule: connection length 10 mm Recommended crimping pliers: trapezoidal or square Designation: 1128752 FMC 1,5/ 3-ST-3,5-RF GY35BD1-3 Number of positions: 3 Cross section range AWG: 24 ... 16 (Use copper wires rated 75° C (UL)) Supply voltage: 24 VÃDC (SELV) Supply voltage range: 9 VÃDC ... 32 VÃDC (PELV/SELV) Supply current: typ. 150 mA (at 24 V DC) Current consumption: max. 550 mA (at 9 V DC) |
| Connection data | 1128752 FMC 1,5/ 3-ST-3,5-RF GY35BD1-3 Connection method: Push-in spring connection Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 10 mm |
| Interfaces | Antenna Number: 2 Functions Configuration: Web-based management, automated CLI Quality of service (QoS): Yes Security: 802.11i WPA PSK (preshared key) WPA2 AES TKIP MAC filter Supports 802.1X/RADIUS Wireless licenses: EU, more countries in e-shop Country support: Belgium Bulgaria Denmark Germany Estonia Finland France Greece Great Britain Ireland Italy Latvia Liechtenstein Lithuania Luxembourg Malta Netherlands Norway Austria Poland Portugal Romania Sweden Switzerland Slovakia Slovenia Spain Czech Republic Hungary Cyprus (rep.) China Japan South Korea Russia Ethernet (RJ45) Number of interfaces: 1 Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps Transmission physics: Copper Transmission length: 100 m (per segment) No. of channels: 1 (RJ45 ports) Wireless Designation: Wireless LAN Antenna connection method: RSMA (female) Frequency band: 2.4 GHz 5 GHz Wireless standard: WLAN IEEE 802.11 a b g n Transmission power: max. 19 dBm (with two antennas) Number of wireless interfaces: 1 IEEE 802. 11 a/b/g/n Wireless modules that can be connected: 10 (In Access Point mode max. 2 SSIDs) |

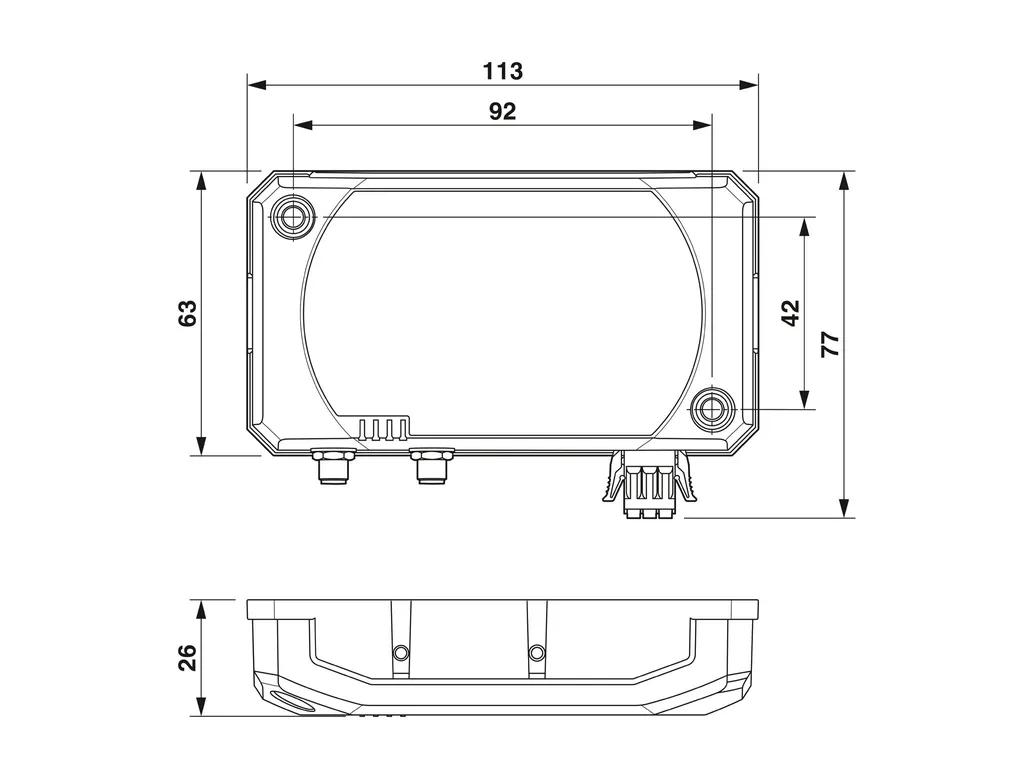

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9d75b70be04d93409dfca9659338ba01/-S204x204-FJPG Width: 63 mm Height: 26 mm Depth: 113 mm Note on dimensions: Installed dimensions without connector |
| Material specifications | Material base plate: Die-cast zinc, nickel-plated Housing material: Polycarbonate, PC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): 0°C ... 60°C Air pressure (operation): 800 hPa ... 1080 hPa (up to 2000Ãm above sea level) Air pressure (storage/transport): 660 hPa ... 1080 hPa (up to 3500Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
| Approvals | CE Certificate: CE-compliant Wireless approval, Europe Note: RED 2014/53/EU |
| EMC data | Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeââ¬Ã¢¹ Contact discharge: ñ 4 kV Indirect discharge: ñ 6 kV Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldââ¬Ã¢¹ Frequency range: 80 MHz ... 100 MHz 1000 MHz ... 6000 MHz Test field strength: 10 V/m 3 V/m Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)ââ¬Ã¢¹ Comments: ñ2.2ÃkV Surge current load (surge) Standards/regulations: ENÃ61000-4-5 Surge current load (surge)ââ¬Ã¢¹ Signal: ñ 0.5 kV (symmetrical) ñ 1 kV (asymmetrical) Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceââ¬Ã¢¹ Frequency range: 0.15 MHz ... 80 MHz Voltage: 10 V Emitted interference Standards/regulations: ENÃ55022 Test result: ClassÃB |
| Mounting | Mounting type: Wall mounting, optional DIN rail adapter Assembly instructions: Antennas not included in scope of supply |
