2716732 PHOENIX CONTACT -

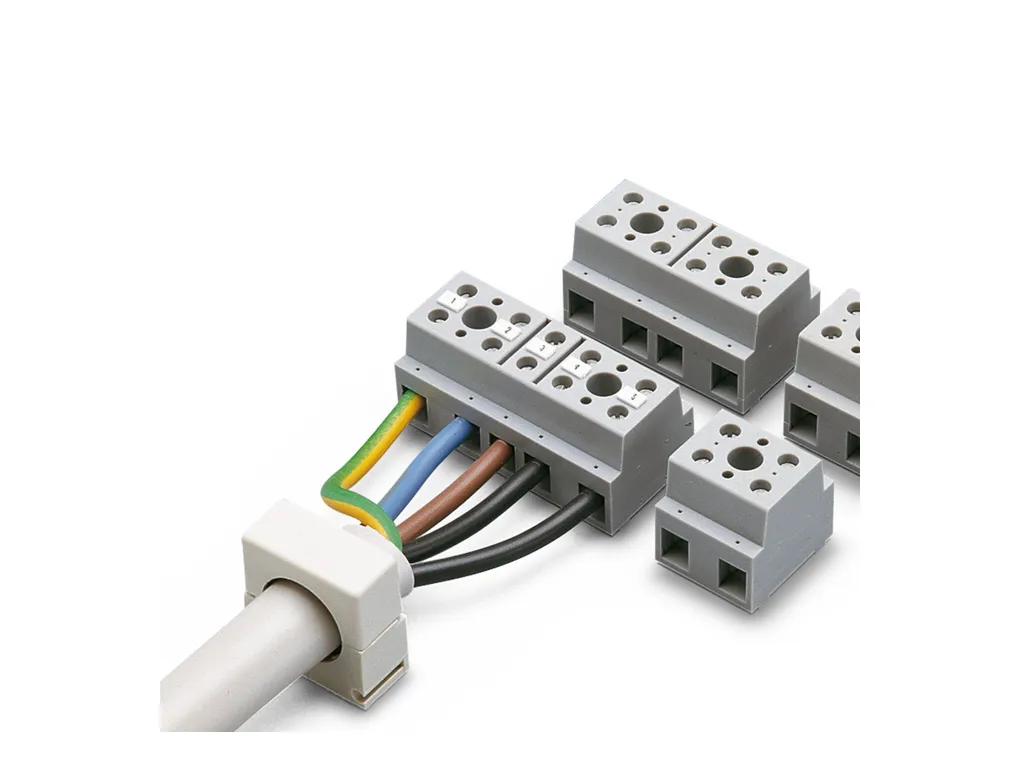

G 10/ 5 - Device terminal block

Device terminal block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 10, number of positions: 5, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: direct screw connection, color: gray

Cod. Articolo: 2716732 copia - copy

Cod. Fornitore: 2716732 copia - copy

PHOENIX CONTACT

Product properties	Product type: Feed-through terminal block Number of positions: 5 Number of connections: 10 Number of rows: 1 Potentials: 5 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.82 W
Connection data	Number of connections per level: 10 Nominal cross section: 10 mm² Screw thread: M4 Tightening torque: 1.5 ... 1.8 Nm Stripping length: 12 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 16 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 6 mm² 2 conductors with same cross section, flexible: 0.5 mm² ... 6 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.5 mm² ... 6 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 6 mm² Nominal current: 57 A Maximum load current: 76 A (with 16 mm² conductor cross section) Nominal voltage: 800 V
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/52f61839b704aa47908e04f1b5412804/-S204x204-FJPG Width: 68 mm Height: 33 mm Depth: 31 mm Hole diameter: 4.2 mm
Material specifications	Color: gray Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C
Electrical tests	Surge voltage test Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢Ã¢°¤Ã45ÃK Result: Test passed Short-time withstand current 10 mm²: 1.2 kA Power-frequency withstand voltage Test voltage setpoint: 2 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: No
Mechanical tests	Mechanical strength Result: Test passed
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Shocks Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: direct screw connection
