| Product properties | Type: Connection system integrated, housing closed Product type: Complete housing Product family: UEGH Number of positions: 12 Pitch: 5 mm Number of rows: 2 Housing type: Complete housing Housing series: UEG Pin layout: Linear pinning |
| Electrical properties | Nominal voltage UN: 500 V Nominal current IN: 10 A |

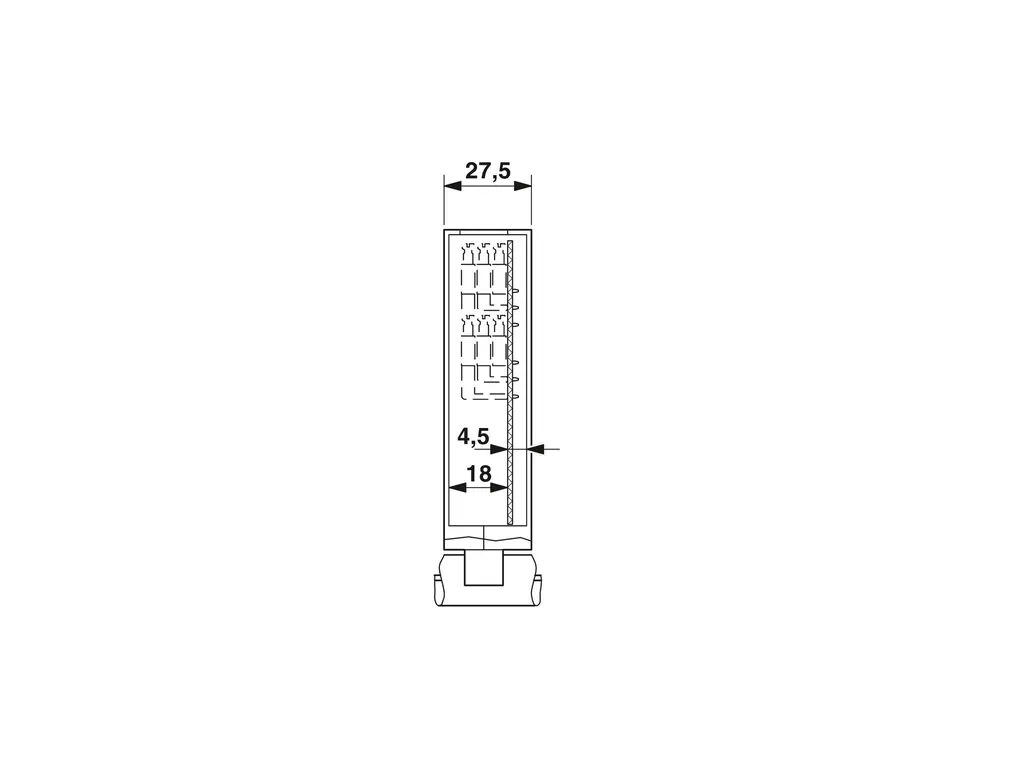

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/74bc570a66bebc428d420179cfb88e6c/-S204x204-FJPG Width: 27.5 mm Installed height: 106.7 mm Height NS 35/7,5: 106.7 mm Depth: 79 mm Length: 79 mm Pitch: 5 mm |
| Material specifications | Color: green Flammability rating according to UL 94: V2 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C |
| Mounting | Mounting type: Soldering Pin layout: Linear pinning Connection method: Screw connection |
