| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Current transducer Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Total error: ââ°¤ 1.5 % (Temperature range) Maximum power dissipation for nominal condition: 2.2 W Measuring category: III Test voltage output/power supply: 500 VÃAC (50ÃHz, 60Ãs) Test voltage input/output: 4 kV AC (50ÃHz, 60Ãs) Test voltage input/power supply: 4 kV AC (50ÃHz, 60Ãs) Protective circuit: Surge protection; 33ÃV suppressor diode Step response (10-90%): 330 ms (AC) 40 ms (DC) Temperature coefficient, typical: < 0.025 %/K Maximum transmission error: < 0.5 % (of nominal range value under nominal conditions) Rated insulation voltage: 300 VÃAC (to earth) Supply Supply voltage range: 20 VÃDC ... 30 VÃDC Max. current consumption: < 50 mA (without load) |
| Input data | Measurement Number of inputs: 3 Configurable/programmable: Yes, unconfigured Input current range: 0 A AC/DC ... 11 A AC/DC (Permitted continuous overload: 120%) Current measuring range: 0 A AC/DC ... 1 A AC/DC 0 A AC/DC ... 5 A AC/DC 0 A AC/DC ... 10 A AC/DC Setting range for min. input current: 0 mA AC/DC ... 200 mA AC/DC Setting range for max. input current: 0 A AC/DC ... 11 A AC/DC LSB: Current: 1 õA (1ÃA) 2 õA (2ÃA) 5 õA (5ÃA) 10 õA (10ÃA) 50 õA (50ÃA) 100 õA (100ÃA) Overload capacity: 2 x IN (continuous) Surge strength: 20 x IN (1 s) Frequency measuring range: 15 Hz ... 400 Hz Curve type: AC, DC or distorted currents Operate threshold: 2 % (of measuring range nominal value 1/5/10 A) |
| Output data | Switching: Relay Contact switching type: 1Ãchangeover contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC 250 VÃAC Limiting continuous current: 50 mA (for gold layer, 30 V AC/ 36 V DC) 2 A (in case of a destroyed gold layer, 250 V AC) Switching: Transistor Continuous load current: 80 mA (Not short-circuit proof) Output voltage range: 19 V ... 29 V (supply voltage - 1 V) Setting range of the threshold value: 1 % ... 110 % Setting range of the response delay: 0.1 s ... 20 s Status display: Yellow LED Signal: Voltage/current Configurable/programmable: Yes, unconfigured Voltage output signal: 0 V ... 5 V 1 V ... 5 V 0 V ... 10 V 2 V ... 10 V -5 V ... 5 V -10 V ... 10 V 10 V ... 0 V 10 V ... 2 V 10 V ... -10 V 5 V ... 0 V 5 V ... 1 V 5 V ... -5 V Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA 20 mA ... 0 mA 20 mA ... 4 mA Load/output load voltage output: > 10 ké Load/output load current output: < 500 é |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 |
| Signaling | Status display: Green LED |

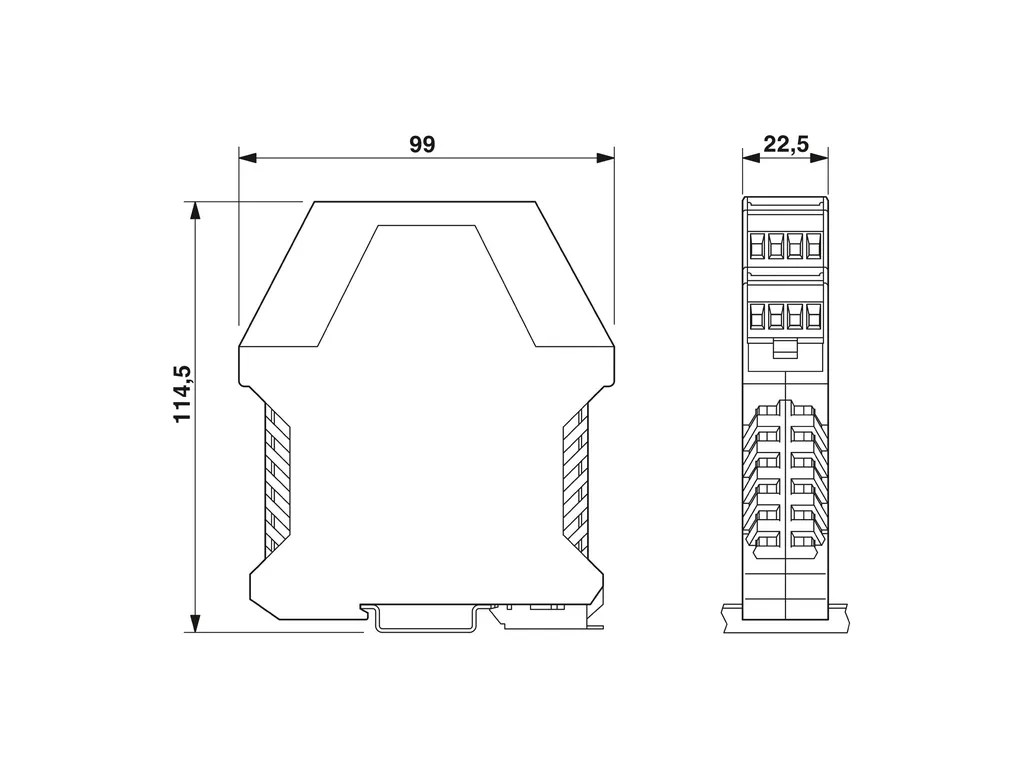

| Dimensions | Item dimensions Width: 22.5 mm Height: 99 mm Depth: 114.5 mm |
| Material specifications | Housing material: Polyamide PA non-reinforced |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: < 2000 m Permissible humidity (operation): 10 % ... 95 % (non-condensing) |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: Class I, Zone 2, AEx nA nC IIC T4, Ex nA nC IIC T4 Gc X Class I, Div. 2, Groups A, B, C and D or Non-Hazardous Locations Only |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4 |
| Standards and regulations | Standards/regulations: IEC 61010-2-030 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
