2854199 PHOENIX CONTACT -

ME 17,5 UT/FE BUS/10+2 GN - Mounting base housing

DIN rail housing, Lower housing part with metal foot catch, with FE contact, tall design, with vents, width: 17.6 mm, height: 99 mm, depth: 107.3 mm, color: green (6021), cross connection: integrated bus connector, number of positions cross connector: 10+2, Bus connector: 10parallel contacts, 2serial contacts

Cod. Articolo: 2854199 copia - copy

Cod. Fornitore: 2854199 copia - copy

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold)
Product properties	Type: Lower housing parts with vents, housing cover necessary to complete the module Lower housing part with metal foot catch, with FE contact, tall design Product type: Enclosure bottom part Product family: ME UT FE BUS Housing type: DIN rail housing Ventilation openings present: yes Housing series: ME

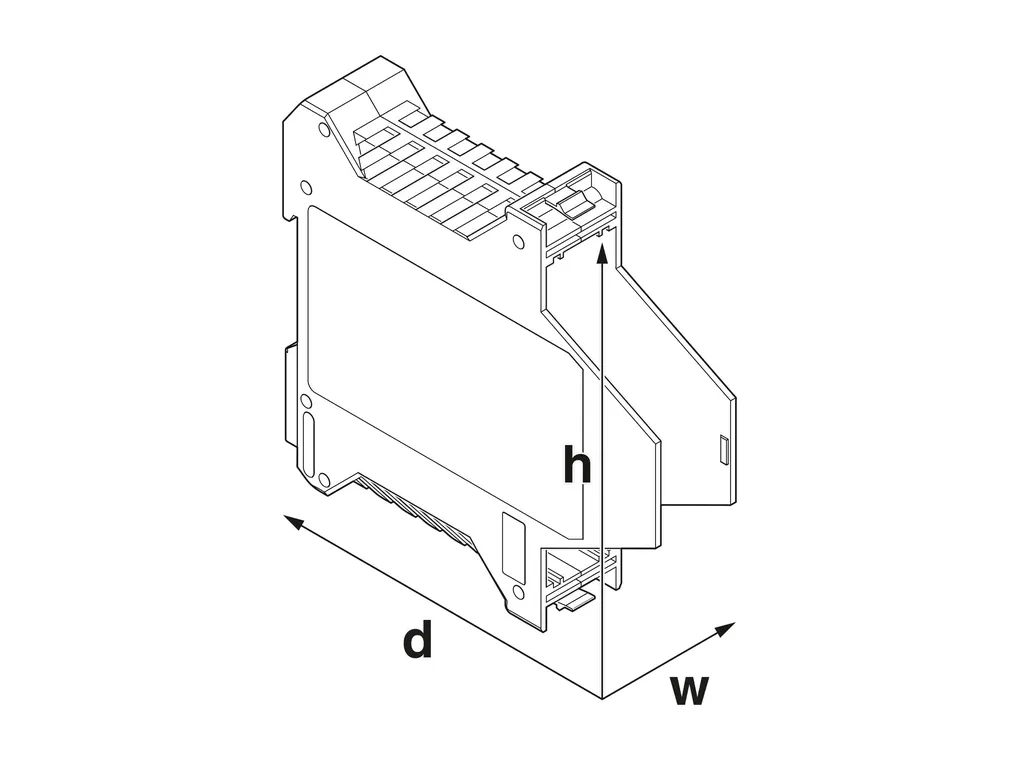

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f7cb8d787f84004f8d1011c43706dd99/-S204x204-FJPG Width: 17.6 mm Height: 99 mm Depth: 107.3 mm Depth from top edge of DIN rail: 100.7 mm Depth from top edge of DIN rail to support point on upper part: 68.5 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: green (6021) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Mounting position: vertical Power dissipation: 5.2 W Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.91 Mounting position: vertical Power dissipation: 4.7 W Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.81 Mounting position: vertical Power dissipation: 4.2 W Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.7 Mounting position: vertical Power dissipation: 3.6 W Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.57 Mounting position: vertical Power dissipation: 3 W Power dissipation single housing for 70°C Ambient temperature: 70°C Reduction factor: 0.49 Mounting position: vertical Power dissipation: 2.5 W Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min Amplitude: 0.15Ãmm (10ÃHzÃ...Ã58.1ÃHz) Acceleration: 2g (58.1ÃHzÃ...Ã150ÃHz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 125°C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60998-1:2002-12 Height of fall: 50Ãcm Frequency: 10 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMDÃ1:1999-11 + AMDÃ2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
PCB data	Number of PCB holders: 1 Type of PCB mount: Insertion (optional latching by PCB stop) Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
