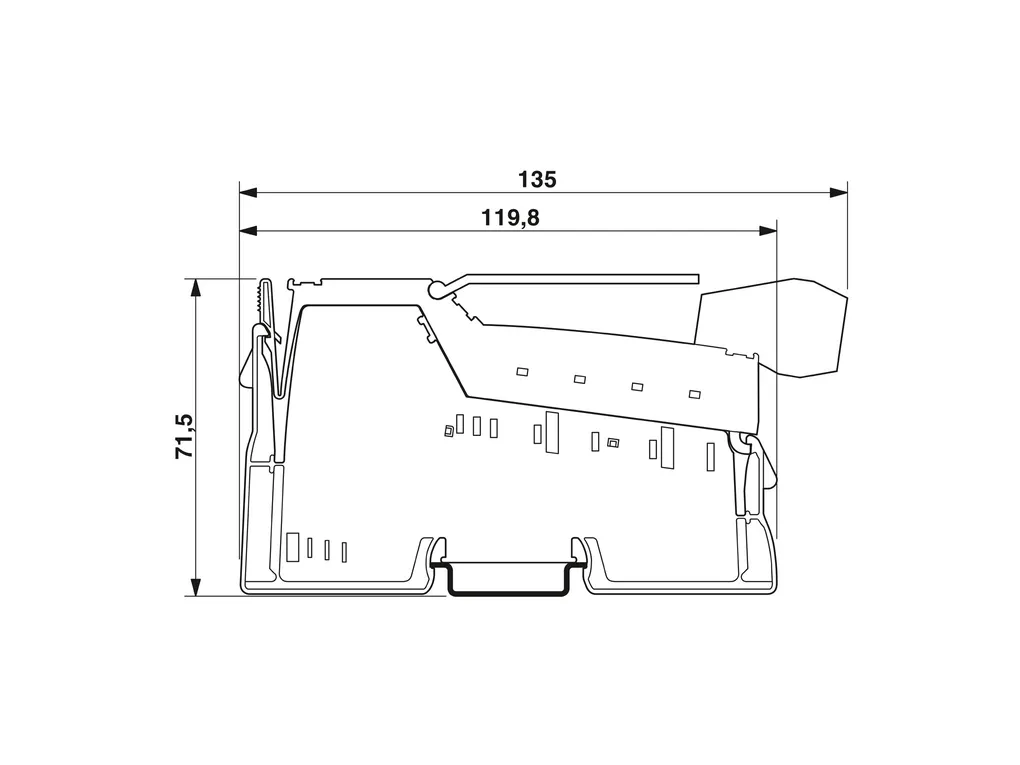

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/20a984302842e949b5ce7beb58df3766/-S204x204-FJPG Width: 12.2 mm Height: 135 mm Depth: 71.5 mm |
| Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
| Interfaces | INTERBUS Connection method: Inline data jumper Transmission speed: 500 kbps INTERBUSââ¬Ã¢¹ Connection method: Inline shield connector Transmission speed: 500 kbps Transmission physics: RS-485 Inline local bus Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper |
| System properties | System limits Number of local bus devices that can be connected: max. 63 (Consider the logic current consumed by the devices; the branch terminal does not count as an Inline station device.) Module ID code (dec.): 04 ID code (hex): 04 Length code (hex): 0 Length code (dec): 0 Process data channel: 0 bit Input address area: 0 Byte Output address area: 0 Byte Register length: 0 bit |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connector and labeling field |
| Electrical properties | Maximum power dissipation for nominal condition: 696 mW Potentials: Supply of analog modules (U Supply voltage: 24 VÃDC (via voltage jumper) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: typ. 29 mA Electrical isolation/isolation of the voltage ranges Test voltage: 5 V supply, incoming remote bus, 5 V supply outgoing remote bus, 5 V supply logic: 500 VÃAC, 50 Hz, 1 min. Test voltage: Remote bus branch: 500 VÃAC, 50 Hz, 1 min. Test voltage: Functional ground: 500 VÃAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINÃENÃ61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINÃENÃ61131-2) |
| Standards and regulations | Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1) |
| Mounting | Mounting type: DIN rail mounting |
