2891057 PHOENIX CONTACT -

FL SWITCH 1924 - Industrial Ethernet Switch

Ethernet switch, 24 Ethernet ports on the front in RJ45 format, automatic detection of 10, 100 or 1000 Mbps data transmission rate, coupling of network segments with different transmission speeds, auto crossing function, installs in 19-in. (482mm) rack

Cod. Articolo: 2891057 copia - copy

Cod. Fornitore: 2891057 copia - copy

PHOENIX CONTACT

Dimensions	Width: 482 mm Height: 44 mm Depth: 210 mm
Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area

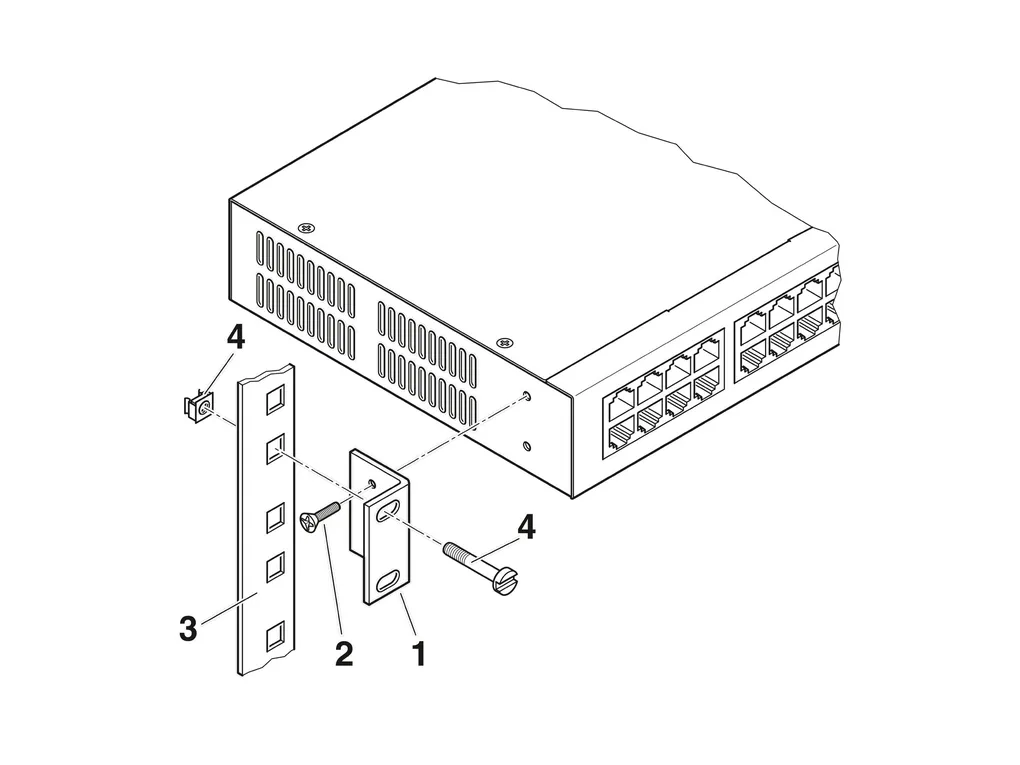

Mounting	Mounting type: Rack mount, includes brackets Connection method: RJ45
Interfaces	Ethernet Connection method: RJ45 Transmission speed: 10/100/1000 Mbps Transmission physics: Twisted pair connection Transmission length: 100 m (per segment) Signal LEDs: Activity, link status No. of channels: 24 (RJ45 ports)
Product properties	Type: Stand-Alone Product type: Switch Product family: Unmanaged Switch 1900 MTTF: 30.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) Switch functions Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode MAC address table: 8192 Status and diagnostic indicators: LEDs: U_S, link and activity per port Additional functions: Autonegotiation Security functions Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Electrical properties	Local diagnostics: US Power present Green LED Maximum power dissipation for nominal condition: 88 W Transmission medium: Copper Supply Supply voltage (AC): 120 VÃAC 220 VÃAC Supply voltage range: 100 VÃAC ... 240 VÃAC (50/60ÃHz) Inrush current: 23 A (200 Ãµs @ 230 V AC) Max. current consumption: 0.4 A (maximum) Typical current consumption: 312 mA (100ÃVÃAC) Supply: Module electronics Supply voltage range: 100 VÃAC ... 240 VÃAC Current consumption: 1 A (maximum)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): 0°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Air pressure (operation): 86 kPa ... 108 kPa (2000Ãm above sea level)
EMC data	Conformance with EMC directives: IEC 61000-6-2 EN 61000-4-2 (ESD) Criterion B EN 61000-4-3 (radiated noise immunity) Criterion A EN 61000-4-4 (EFT burst) Criterion B EN 61000-4-5 (surge) Criterion B EN 61000-4-6 (line noise immunity) Criterion A EN 61000-4-8 (electromagnetic fields) Criterion A EN 61000-4-11 ENÃ61000-6-3 Noise immunity: EN 61000-6-2:2005 Electromagnetic compatibility: Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC Noise emission: EN 61000-6-4
System properties	Functionality Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Signaling	Status display: LEDs: U_S, link and activity per port
