2891079 PHOENIX CONTACT -

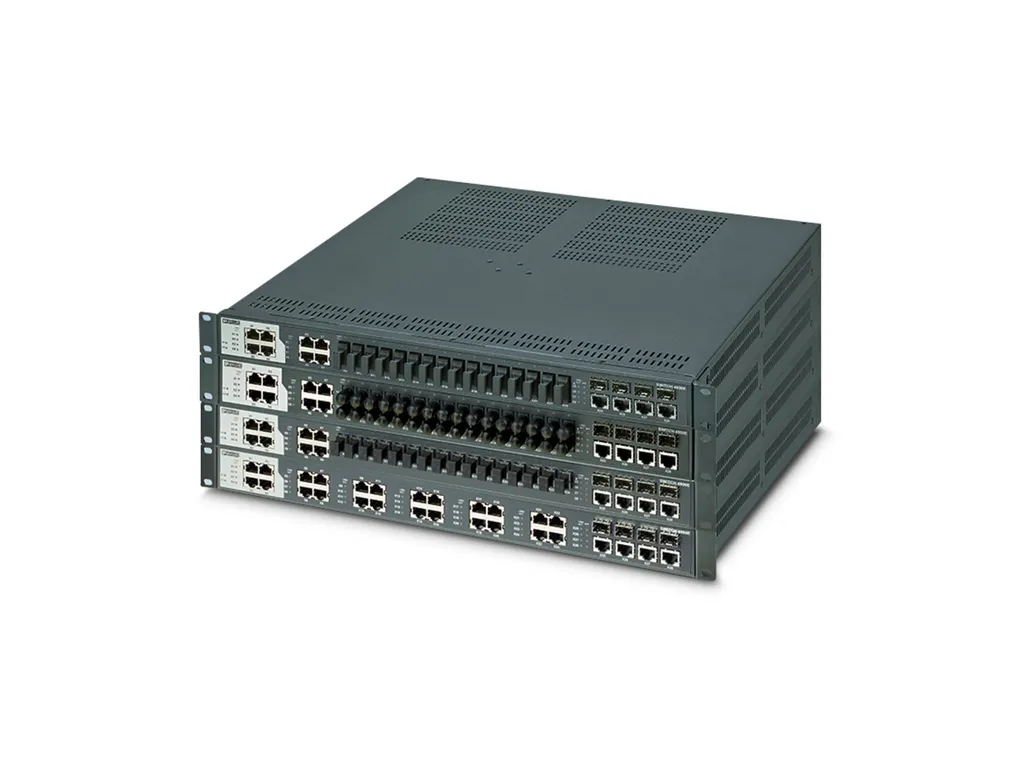

FL SWITCH 4808E-16FX-4GC - Industrial Ethernet Switch

Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE1613. Provides eight RJ45 ports at 10/100Mbps, 16 SC-D MM fiber ports at 100Mbps and four gigabit combo ports (10/100/1000Mbps RJ45 connection; 1000Mbps fiber optic connection requires 1000Mbps SFP module).

Cod. Articolo: 2891079 copia - copy

Cod. Fornitore: 2891079 copia - copy

PHOENIX CONTACT

Dimensions	Width: 442 mm Height: 44 mm Depth: 375 mm
Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Mounting	Mounting type: Rack mount, includes brackets
Interfaces	Ethernet (RJ45) Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps Transmission physics: Ethernet in RJ45 twisted pair Transmission length: 100 m No. of channels: 8 (RJ45 ports) Fiber optic interface Connection method: SC Transmission speed: 100 Mbps (Full duplex) Transmission physics: multi-mode fiberglass Transmission length: 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000) 3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600) 9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200) 5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800) Wavelength: 1300/1310 nm No. of channels: 16 (Multi mode) Ethernet (RJ45/FO combo) Connection method: SFP/RJ45 Note on the connection method: Auto negotiation and autocrossing (RJ45 interface) Transmission speed: 10/100/1000 Mbps Transmission physics: Ethernet RJ45 (10/100/1000ÃMbps) or SFP (1000ÃMbps) No. of channels: 4 (Combo ports)
Product properties	Type: Block design Product type: Switch Product family: Managed Switch 4000 MTTF: 7.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) 41.2 Years (SNÃ29500 standard, temperatureÃ25°C, operating cycleÃ21%) 19.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) Switch functions Basic functions: Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts Redundancy: ERR (Extended ring redundancy) Status and diagnostic indicators: LEDs: U_S1, U_S2 (redundant voltage supply), link and activity per port Security functions Basic functions: Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Electrical properties	Transmission medium: Copper FO Supply Power supply connection: From FLÃSWITCH 4800E-P...
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) Air pressure (operation): 57 kPa ... 108 kPa (up to 4850 m above mean sea level) Air pressure (storage/transport): 57 kPa ... 108 kPa (up to 4850 m above mean sea level)
EMC data	Noise immunity: IEC 61850-3, IEEEÃ1613, ENÃ61000-6-2: 2005 Noise emission: EN 61000-6-4
System properties	Functionality Basic functions: Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Signaling	Status display: LEDs: U_S1, U_S2 (redundant voltage supply), link and activity per port
