ME 22,5 OT-MSTBO KMGY VPE200 - Upper part of housing

DIN rail housing, Upper housing part for connectors with header, width: 22.6 mm, height: 99 mm, depth: 45.85 mm, color: light grey (7035)

Cod. Articolo: 2896801 copia - copy

Cod. Fornitore: 2896801 copia - copy

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Product family: ME...OT-MSTBO Max. number of positions: 20 (pitch: 3.5 mm) 16 (pitch: 5 mm) 12 (pitch: 7.25 mm) Number of rows: 2 Type: Upper housing part for connectors with header Housing type: DIN rail housing Ventilation openings present: no Housing series: ME

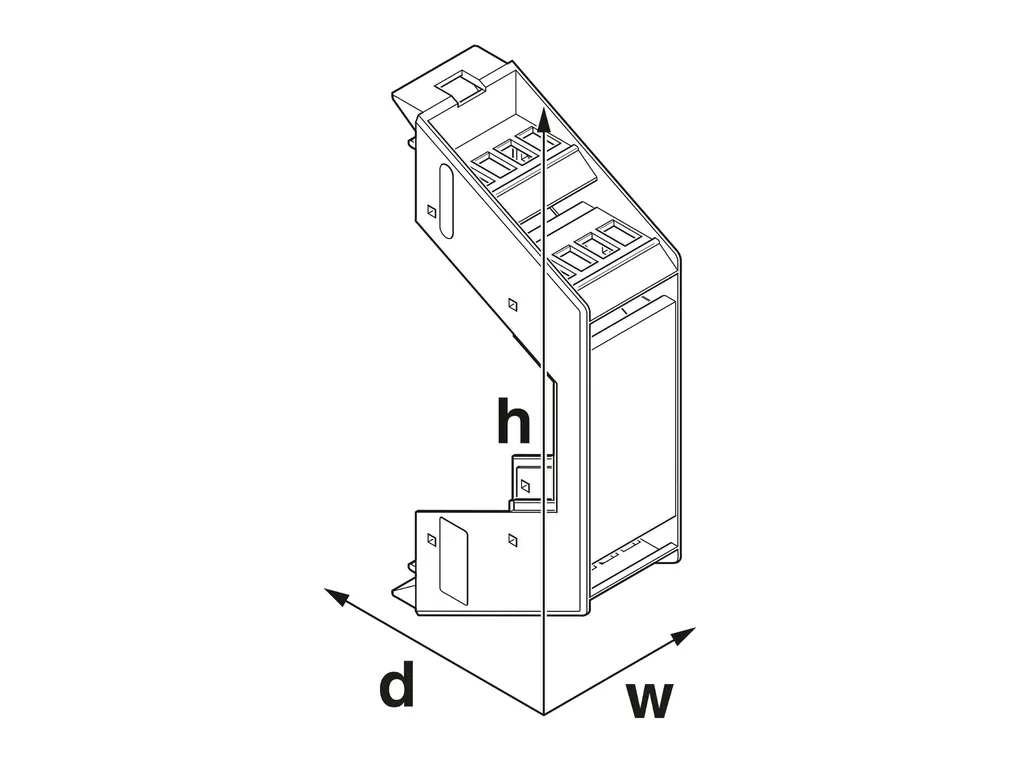

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b65c9a8a4e64604ea95a41df5597e7c4/-S204x204-FJPG Width: 22.6 mm Height: 99 mm Depth: 45.85 mm Depth from base support surface: 38.5 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min Amplitude: 0.15Ãmm (10ÃHzÃ...Ã58.1ÃHz) Acceleration: 2g (58.1ÃHzÃ...Ã150ÃHz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 125°C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60998-1:2002-12 Height of fall: 50Ãcm Frequency: 10 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMDÃ1:1999-11 + AMDÃ2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
PCB data	Number of PCB holders: 1 Type of PCB mount: Slot Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: Latching with lower housing part Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
