2900398 PHOENIX CONTACT -

PLC-OPT- 24DC/ 24DC/10/R - Solid-state relay module

PLC-INTERFACE with confirmation contact, consisting of basic terminal block with push-in connection and integrated miniature solid-state relay, for mounting on DIN rail NS 35/7,5, 1 N/O contact, input: 24 V DC, output: 3 - 33 V DC/10 A

Cod. Articolo: 2900398 copia - copy

Cod. Fornitore: 2900398 copia - copy

PHOENIX CONTACT

Notes	General: The PLC-ATP partition plate must be installed for voltages greater than 250ÃV (L1, L2, L3) between identical terminal blocks on adjacent modules. The PLC-ATP separating plate should be installed for safe isolation between adjacent modules Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. At least one functional insulation against adjacent modules is complied with in the support rail direction. If the application has higher requirements on the insulation (basic or reinforced insulation), then these must be realized through suitable measures (e.Ãg., partition plates). Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed.
Product properties	Product type: Solid-state relay module Product family: PLC-INTERFACE Application: With integrated solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.07 W Air clearances and creepage distances between the power circuits Rated insulation voltage: 50 VÃDC Rated surge voltage: 0.5 kV
Input data	Rated actuating voltage U_C: 24 VÃDC Rated actuating current I_C: 3.5 mA Switching threshold "0" signal in reference to U_N: < 0.4 Switching threshold "1" signal in reference to U_N: > 0.8 Typical response time: 100 Ãµs Typical turn-off time: 500 Ãµs Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Surge voltage protection: > 33 V Transmission frequency: 100 Hz

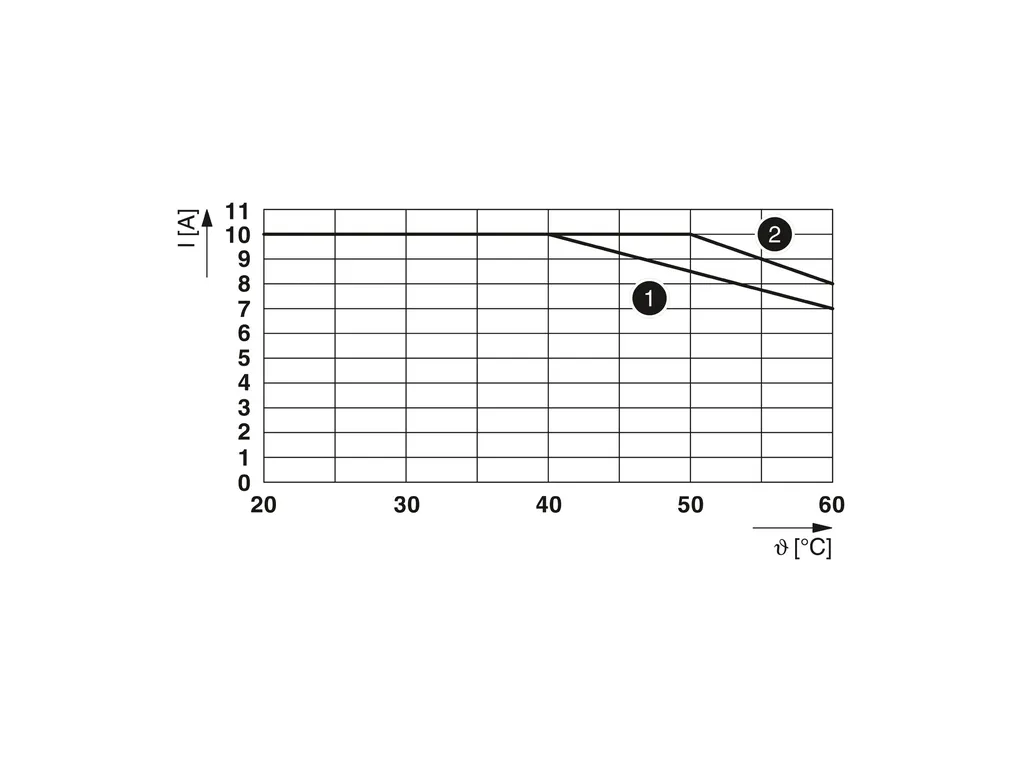

Output data	Designation: DC voltage output Alarm output Contact switching type: 1 N/O contact Design of digital output: electronic Contact connection type: Power contact Output voltage range: 8 VÃDC ... 33 VÃDC 3 VÃDC ... 33 VÃDC Limiting continuous current: 10 A (see derating curve) 100 mA Quiescent current: 5.2 mA Voltage drop at max. limiting continuous current: < 50 mV < 1.2 V Output circuit: 3-conductor, ground-referenced 2-conductor, floating Protective circuit: Inverse diode Surge protection Reverse polarity protection; Polarity protection diode Surge protection; Suppressor diode Surge voltage protection: > 33 V Error indication: Red LED
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 86 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
