| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area Utilization restrictionââ¬Ã¢¹ CCCex note: Use in potentially explosive areas is not permitted in China. |

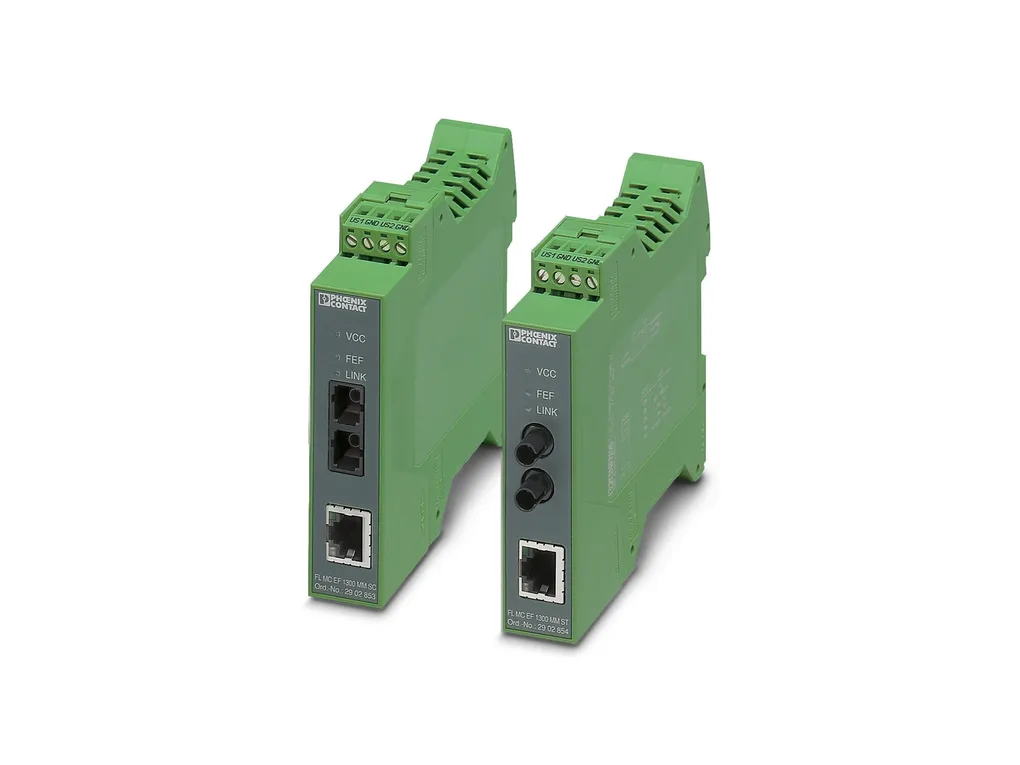

| Product properties | Product type: Media converter MTTF: 1400 Years (SNÃ29500 standard, temperatureÃ25°C, operating cycleÃ21%) 599 Years (SNÃ29500 standard, temperatureÃ40°C, operating cycleÃ34.25%) 101 Years (SNÃ29500 standard, temperatureÃ40°C, operating cycleÃ100%) MTBF: 479 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) 140 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) Signal delay: ñ 1.3 õs (Store and Forward mode, 10/100 Mbps, depending on the frame size) |
| System properties | Functionality Basic functions: Store-and-forward media converter |
| Electrical properties | Electrical isolation: according to IEEE 802.3 VCC // FE // Ethernet Maximum power dissipation for nominal condition: 2.4 W Test voltage data interface/power supply: 0.5 kVrms (50ÃHz, 1Ãmin.) Supply Supply voltage range: 18 VÃDC ... 30 VÃDC (Screw connection) 18 VÃDC ... 30 VÃDC (as an alternative or redundant, via backplane bus contact and system current supply) Typical current consumption: < 100 mA (24ÃVÃDC) Protective circuit: Reverse polarity protection |
| Connection data | Supply Connection method: Plug-in screw terminal block (COMBICON), redundancy possible Single conductor/terminal point, rigid: 0.2 mm² ... 2.5 mm² Single-wire/terminal point, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible [AWG]: 24 ... 14 Tightening torque: 0.56 Nm ... 0.79 Nm |
| Interfaces | Signal: Ethernet Basic functions: Store-and-forward media converter Data: optical FO Transmit capacity, minimum: ââ°¥ -23.5 dBm ((50/125Ãõm) dynamic in link mode (average)) ââ°¥ -20 dBm ((62,5/125Ãõm) dynamic in link mode (average)) Transmit capacity, maximum: ââ°¤ -14 dBm ((50/125Ãõm) dynamic in link mode (average)) ââ°¤ -14 dBm ((62,5/125Ãõm) dynamic in link mode (average)) Transmission length incl. 3 dB system reserve: 6.4 km (F-G 50/125 0.7ÃdB/km F 1000) 2.8 km (F-G 50/125 1.6ÃdB/km F 800) 10 km (F-G 62.5/125 0.7ÃdB/km F 1000) 3 km (F-G 62.5/125 2.6ÃdB/km F 600) Connection method: SC duplex Wavelength: 1300 nm Minimum receiver sensitivity: -31 dBm (dynamic in link mode (average)) Maximum receiver sensitivity: -14 dBm (dynamic in link mode (average)) Transmission medium: Multi-mode fiberglass GI-HCS fiber Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 Transmission speed: 10/100 Mbps Connection method: RJ45 jack, shielded No. of channels: 1 Transmission length: 100 m (shielded twisted pair) Transmission medium: Copper Signal LEDs: Activity, link status, 10/100 Mbps Auto-negotiation modes: Auto Link through: Link fault pass through MDI-/MDI-X switchover: Auto-MDI(X) |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a676a27eef491e4597eb4a01cc11921e/-S204x204-FJPG Width: 22.5 mm Height: 99 mm Depth: 114.5 mm |
| Material specifications | Material: PA 6.6-FR |
| Cable/line | FO cable Fiber types: 50/125 õm 62.5/125 õm Fiberglass |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 65°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) ââ°¤ 2000 m (in acc. with UL) Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
| Approvals | CE Certificate: CE-compliant EAC Identification: EAC ATEX Identification: ïà II 3 G Ex nA IIC T4 Gc X Note: Please follow the special installation instructions in the documentation! ATEX, FO interface Identification: ïà II (2) D [Ex op is Db] IIIC ïà II (2) G [Ex op is Gb] IIC Certificate: PTBÃ06ÃATEXÃ2042ÃU Note: Please follow the special installation instructions in the documentation! UL, USA/Canada Identification: 508 Listed Class I, Zone 2, AEx nA IIC T4 Class I, Zone 2, Ex nA IIC T4 Gc X Class I, Div. 2, Groups A, B, C, D KC approval for South Korea Certificate: MSIP-REI-PCK-2902853 Corrosive gas test Identification: ISA-S71.04-1985 G3 Harsh Group A Shipbuilding Identification: DNV GL DNV GL data Temperature: B Humidity: A Vibration: A EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board |
| EMC data | Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeââ¬Ã¢¹ Contact discharge: ñ 6 kV (Test Level 3) Discharge in air: ñ 8 kV (Test Level 3) Indirect discharge: ñ 6 kV Comments: Criterion B Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldââ¬Ã¢¹ Frequency range: 80 MHz ... 3 GHz (Test Level 3) Field intensity: 10 V/m Comments: Criterion A Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)ââ¬Ã¢¹ Input: ñ 2 kV (Test Level 3) Signal: ñ 2 kV (Test Level 3) Comments: Criterion B Surge current load (surge) Standards/regulations: ENÃ61000-4-5 Surge current load (surge)ââ¬Ã¢¹ Input: ñ 0.5 kV (DC supply) Signal: ñ 1 kV (Data line, asymmetrical) Comments: Criterion B Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceââ¬Ã¢¹ Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V Emitted interference Standards/regulations: ENÃ55032 Comments: Class A, industrial applications Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself. |
| Standards and regulations | Free from substances that could impair the application of coating: in accordance with VW-AUDI-Seat central standard P-VW 3.10.7 57 65 0 Electrical isolation: according to IEEE 802.3 |
| Mounting | Mounting type: DIN rail mounting |
