2903159 PHOENIX CONTACT -

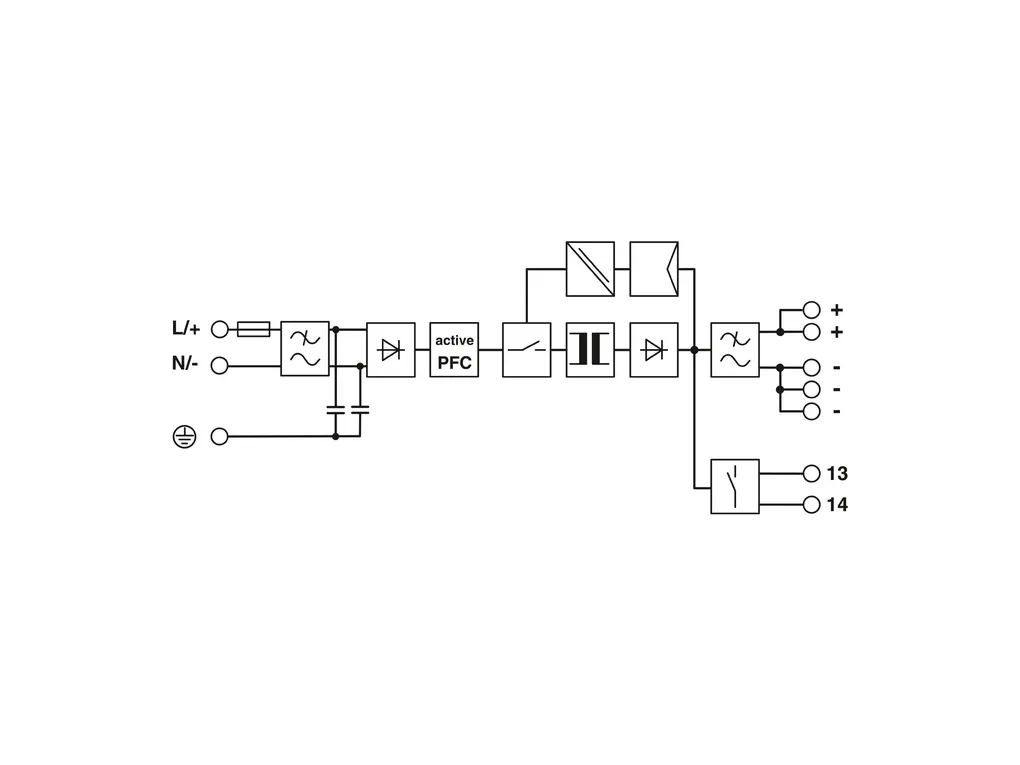

Input data	AC operation Network type: Star network Nominal input voltage range: 100 VÃAC ... 240 VÃAC Input voltage range: 100 VÃAC ... 240 VÃAC -15Ã%Ã...Ã+10Ã% Electric strength, max.: Ã¢Ã¢°¤ 300 VÃAC 15 s Typical national grid voltage: 120 VÃAC 230 VÃAC Voltage type of supply voltage: AC/DC Inrush current integral (I²t): < 0.3 A²s Inrush current limitation: 15 A (after 1Ãms) AC frequency range: 50 Hz ... 60 Hz Ã±10Ã% Frequency range (f_N): 50 Hz ... 60 Hz Ã±5ÃHz Mains buffering time: typ. 15 ms (120ÃVÃAC) typ. 15 ms (230 V AC) Current consumption: 2.9 A (100ÃVÃAC) 2.3 A (120ÃVÃAC) 1.2 A (230 V AC) 1.2 A (240ÃVÃAC) Nominal power consumption: 285.7 VA Power factor (cos phi): 0.91 Input fuse: 6.3 A (internal (device protection)) Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K) Discharge current to PE: < 3.5 mA < 1.7 mA (264ÃVÃAC, 60ÃHz) POWER factor: > 0.9 (120ÃVÃAC) > 0.9 (230 V AC) DC operation Nominal input voltage range: 110 VÃDC ... 250 VÃDC Input voltage range: 110 VÃDC ... 250 VÃDC Ã±10Ã% Extended input voltage range in operation: > 88 VÃDC (Derating <99 V DC: 2Ã%/V) Derating: < 99 VÃDC (2 %/V) Switch-on voltage: 90 VÃDC Shut-down voltage: 70 VÃDC Voltage type of supply voltage: AC/DC Mains buffering time: > 20 ms (230 V AC) Current consumption: 2.5 A (110ÃVÃDC) 1.1 A (250ÃVÃDC)
Output data	Efficiency: typ. 90.5 % (120ÃVÃAC) typ. 91 % (230 V AC) Output characteristic: U/I with dynamic load reserve Nominal output voltage: 48 VÃDC Ã±1Ã% Setting range of the output voltage (U_Set): 36 VÃDC ... 55 VÃDC (> 48ÃVÃDC, constant capacity restricted) Nominal output current (I_N): 5 A Dynamic Boost (I_Dyn.Boost): 7.5 A (5 s) Derating: > 60°C ... 70°C (2.5%/K) POWER factor: > 0.9 (120ÃVÃAC) > 0.9 (230 V AC) Feedback voltage resistance: Ã¢Ã¢°¤ 60 VÃDC Protection against overvoltage at the output (OVP): Ã¢Ã¢°¤ 60 VÃDC Control deviation: < 1 % (change in load, static 10 % ... 90 %) < 3 % (Dynamic load change 10 % ... 90 %, 10 Hz) < 0.1 % (change in input voltage Ã±10 %) Residual ripple: < 20 mV_PP (with nominal values) Short-circuit-proof: yes No-load proof: yes Output power: 240 W 360 W Peak switching voltages nominal load: < 15 mV_PP Maximum no-load power dissipation: typ. 4 W (120ÃVÃAC) typ. 4.1 W (230 V AC) Power loss nominal load max.: typ. 24.5 W (120ÃVÃAC) typ. 20.1 W (230 V AC) Short-circuit current: < 7 AÃDC (Permanent) Rise time: 20 ms (U_OUT (10 % ... 90 %)) Connection in parallel: yes, for redundancy and increased capacity Connection in series: yes Signal: DC OK Continuous load current: 100 mA Signal relay 13/14 Default: closed Digital: 30 VÃAC 30 VÃDC 100 mA
Connection data	Input Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 4 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Single conductor/terminal point, stranded, with ferrule, min.: 0.2 mm² Single conductor/terminal point, stranded, with ferrule, max.: 2.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 12 Stripping length: 10 mm Output Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 4 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Single conductor/terminal point, stranded, with ferrule, min.: 0.2 mm² Single conductor/terminal point, stranded, with ferrule, max.: 2.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 12 Stripping length: 8 mm Signal Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 1.5 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 1.5 mm² Single conductor/terminal point, stranded, with ferrule, min.: 0.2 mm² Single conductor/terminal point, stranded, with ferrule, max.: 1.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 16 Stripping length: 8 mm
Signaling	Types of signaling: LED Floating signal contact Signal output: LED status indicator Signalization designation: DC OK Status display: LED Color: green DC OK: U_OUT > 0.7 x U_N (U_N = 48ÃVÃDC)
Electrical properties	Number of phases: 1.00 Insulation voltage input/output: 3 kV AC (type test) 1.5 kV AC (routine test)
Product properties	Product type: Power supply Product family: TRIO POWER MTBF (IEC 61709, SN 29500): > 2000000 h (25Ã°C) > 1200000 h (40Ã°C) > 620000 h (60Ã°C) Insulation characteristics Protection class: I (in closed control cabinet) Degree of pollution: 2
Dimensions	Width: 42 mm Height: 130 mm Depth: 160 mm Installation dimensions Installation distance right/left: 0 mm / 0 mm Installation distance top/bottom: 50 mm / 50 mm
Mounting	Mounting type: DIN rail mounting Assembly instructions: alignable: horizontally 0 mm (Ã¢Ã¢°¤ 40°C) 10 mm (Ã¢Ã¢°¤ 70°C), vertically 50 mm Mounting position: horizontal DIN rail NS 35, EN 60715 With protective coating: No
Material specifications	Flammability rating according to ULÃ94 (housing / terminal blocks): V0 Housing material: Metal Type of housing: Aluminum (AlMg3) Hood version: Polycarbonate
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (>Ã60Ã°C Derating: 2,5Ã%/K) Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (start-up type tested): -40°C Maximum altitude: Ã¢Ã¢°¤ 5000 m (>Ã2000Ãm, Derating: 10Ã%/1000Ãm) Climatic class: 3K3 (in acc. with EN 60721) Max. permissible relative humidity (operation): Ã¢Ã¢°¤ 95 % (at 25°C, non-condensing) Shock: 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation): < 15 Hz, amplitude Ã±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 4g, 90 min. DNVÃGL CG-0339 / Class B 2 Hz - 100 Hz resonance search, 90 min. in resonance, 2 Hz - 25 Hz, Ã±1.6 mm amplitude, 25 Hz - 100 Hz, 4g acceleration
Standards and regulations	Rail applications: ENÃ50121-4 Standard Ã¢Ã¢¬Ã¢ Limitation of mains harmonic currents: ENÃ61000-3-2 Standard - Electrical safety: IEC 62368-1Ã(SELV) Standard Ã¢Ã¢¬Ã¢ Safety extra-low voltage: IEC 60950-1 (SELV) and ENÃ60204-1 (PELV) Standard - Safe isolation: DINÃVDEÃ0100-410 Standard - Safety of power supply units up to 1100 V (insulation distances): DINÃENÃ61558-2-16 Overvoltage category EN 60950-1: II EN 62477-1: III
Approvals	UL approvals: UL Listed ULÃ508 UL/C-UL Recognized ULÃ60950-1 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) Conformity/Approvals SIL in accordance with IEC 61508: 0
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC EMC requirements for noise emission: ENÃ61000-6-3 ENÃ61000-6-4 EMC requirements for noise immunity: ENÃ61000-6-1 ENÃ61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Conducted noise emission: ENÃ55016 ENÃ61000-6-3 (Class B) Noise emission: EN 55011 (EN 55022) ENÃ55016 ENÃ61000-6-3 (Class B) Harmonic currents Frequency range: ClassÃA Flicker Frequency range: 0 kHz ... 2 kHz Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeÃ¢Ã¢¬Ã¢¹ Contact discharge: 6 kV (Test Level 4) Discharge in air: 8 kV (Test Level 4) Comments: Criterion A Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldÃ¢Ã¢¬Ã¢¹ Frequency range: 80 MHz ... 1 GHz 1 GHz ... 2 GHz 2 GHz ... 6 GHz Test field strength: 10 V/m (Test Level 3) Comments: Criterion A Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)Ã¢Ã¢¬Ã¢¹ Input: 4 kV (Test Level 4 - asymmetrical) Output: 2 kV (Test Level 3 - asymmetrical) Signal: 2 kV (Test Level 4 - asymmetrical) Comments: Criterion A Surge voltage load (surge) Standards/regulations: ENÃ61000-4-5 Input: 2 kV (Test Level 4 - symmetrical) 4 kV (Test Level 4 - asymmetrical) Output: 1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical) Signal: 1 kV (Test Level 2 - asymmetrical) Comments: Criterion A Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceÃ¢Ã¢¬Ã¢¹ I/O/S: asymmetrical Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Voltage dips Standards/regulations: ENÃ61000-4-11 Voltage: 230 VÃAC Frequency: 50 Hz Voltage dip: 70 % 40 % 0 % Number of periods: 25 periods 10 periods 1 period Additional text: Test Level 2 Comments: Criterion A Emitted interference Standards/regulations: ENÃ61000-6-3 Radio interference voltage in acc. with EN 55011: ENÃ55011 (ENÃ55022) ClassÃB, area of application: Industry and residential Emitted radio interference in acc. with EN 55011: EN 55011 (EN 55022) Class B, area of application: Industry and residential Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself. Criterion C: Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
