| Product properties | Product type: Current transducer Product family: SOLARCHECK Insulation characteristics Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 1.15 W Protective circuit: Surge protection; 33ÃV suppressor diode Supply Supply voltage range: via the SOLARCHECK communication module Own current consumption: 43 mA (typical) 50 mA (maximum) |

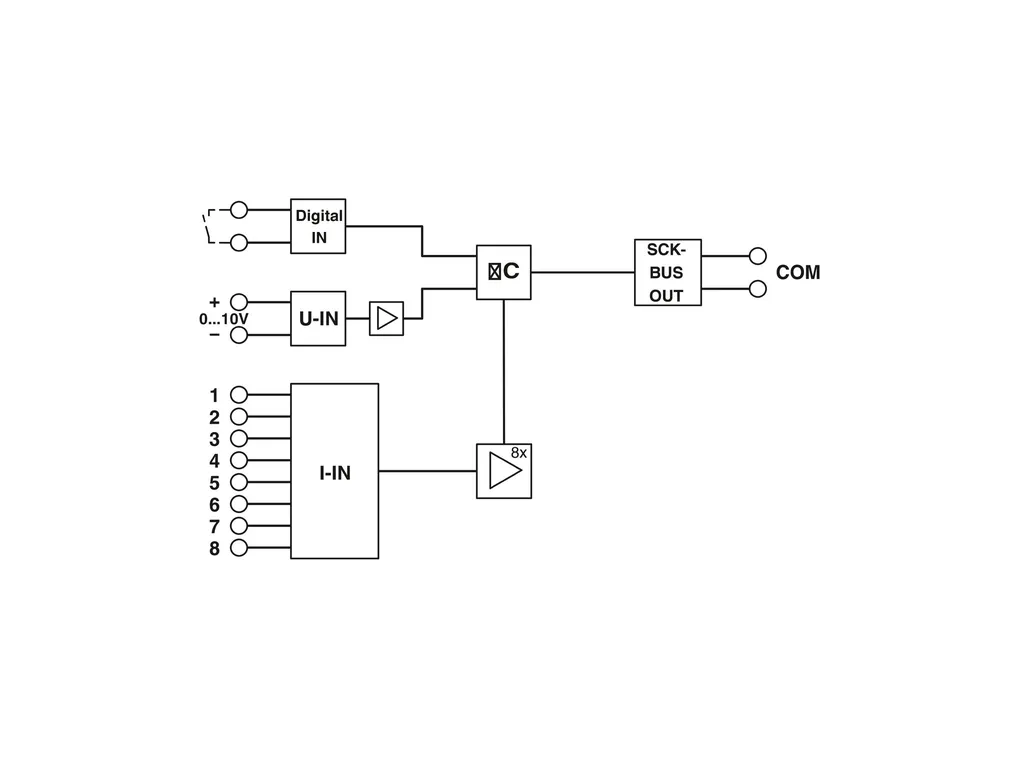

| Input data | Signal: digital Description of the input: Digital input Available input sources: Floating switch contacts Cable length: ââ°¤ 30 m Signal: analog Description of the input: Analog input Voltage input signal: 0 V ... 10 V Measurement Number of inputs: 8 Input current range: 0 AÃDC ... 20 AÃDC (UL: 0 A DC...25 A DC) Reverse current detection: -1 AÃDC ... 0 mA LSB: Current: 20 mA Overload capacity: 5 x IN Temperature coefficient, typical: 0.02 %/K (TK20) Maximum transmission error: ñ 1 % (From the measuring range final value) |
| Connection data | Connection method: Screw connection Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Tightening torque: 0.5 Nm ... 0.6 Nm |
| Interfaces | Data: Data interface to SCK-C-MODBUS Transmission length: ââ°¤ 300 m (0.14Ãmm²) ââ°¤ 500 m (1.5Ãmm²) Protocols supported: Proprietary |
| Dimensions | Item dimensions Width: 22.5 mm Height: 102 mm Depth: 128.5 mm Circular conductor Diameter: 9.5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m Permissible humidity (operation): ââ°¤ 95 % (non-condensing) |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: 508 Listed UL, USA Identification: 1741 Recognized |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Note: When being exposed to interference, there may be minimal deviations. Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4 |
| Standards and regulations | Standards/regulations: ENÃ61010-1 |
| Mounting | Mounting type: DIN rail: 35 mm DIN rail mounting |
