| Product properties | Product type: Relay Module Product family: RIFLINEÃcomplete Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 1.01 W Test voltage (Winding/contact): 2.5 kVrms (50ÃHz, 1Ãmin., winding/contact) Test voltage (Contact/contact): 2 kVrms (50ÃHz, 1Ãmin., contact/contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 2.5 kV |

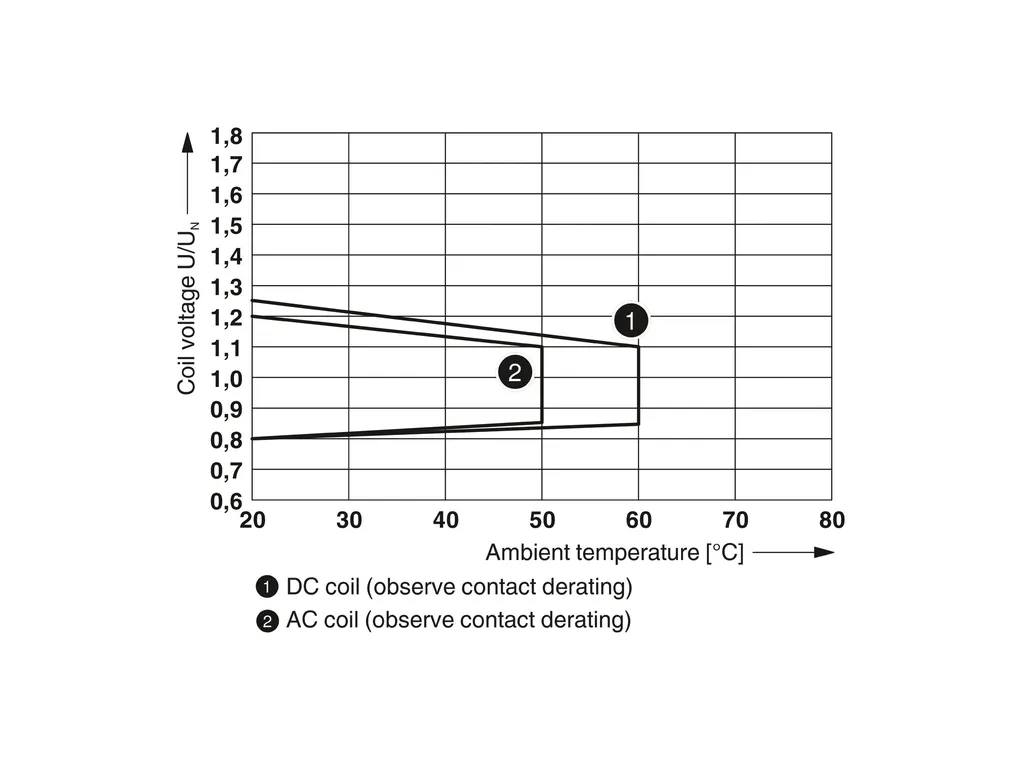

| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 19.2 VÃDC ... 30 VÃDC (20ðC) Input voltage range in reference to UN: see diagram Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 42 mA Typical response time: 13 ms Typical release time: 14 ms Coil voltage: 24 VÃDC Protective circuit: Freewheeling diode Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 4 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (At 24 mA) Limiting continuous current: 6 A (see diagram) Maximum inrush current: 16 A (20 ms, N/O contacts) Min. switching current: 5 mA (24ÃV) Interrupting rating (ohmic load) max.: 144 W (at 24 V DC) 124 W (at 48 V DC) 108 W (at 60 V DC) 52 W (at 110 V DC) 48 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.22 A (at 120 V, DC13) 0.11 A (at 250 V, DC13) 1.5 A (at 24 V, AC15) 1.5 A (at 120 V, AC15) 1 A (at 240ÃV, AC15) |
| Connection data | Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) Conductor cross section AWG: 26 ... 16 (solid) 26 ... 16 (flexible) |
| Dimensions | Drill hole Diameter: 3.2 mm Width: 31 mm Height: 96 mm Depth: 75 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT I (Relay) Ambient temperature (operation): -40°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
