2904605 PHOENIX CONTACT -

Input data	AC operation Input voltage range: 100 VÃAC ... 240 VÃAC -15Ã%Ã...Ã+10Ã% Electric strength, max.: 300 VÃAC 60 s Typical national grid voltage: 120 VÃAC 230 VÃAC Voltage type of supply voltage: AC/DC Inrush current: typ. 11.3 A (at 25Ã°C) Inrush current integral (I²t): < 0.1 A²s Inrush current limitation: < 11.3 A Frequency range (f_N): 50 Hz ... 60 Hz -10Ã%Ã...Ã+10Ã% Mains buffering time: typ. 54 ms (120ÃVÃAC) typ. 54 ms (230 V AC) Current consumption: 0.44 A (100ÃVÃAC) 0.35 A (120ÃVÃAC) 0.19 A (230 V AC) 0.2 A (240ÃVÃAC) Nominal power consumption: 32.8 VA Protective circuit: Transient surge protection; Varistor Typical response time: 500 ms Input fuse: 3.15 A (slow-blow, internal) Recommended breaker for input protection: 6 A ... 16 A (Characteristic B, C or comparable) Discharge current to PE: < 0.25 mA (264ÃVÃAC, 60ÃHz) < 0.16 mA DC operation Input voltage range: 110 VÃDC ... 250 VÃDC -20Ã%Ã...Ã+40Ã% Voltage type of supply voltage: AC/DC Current consumption: 0.4 A (110ÃVÃDC) 0.17 A (250ÃVÃDC)
Output data	Efficiency: typ. 89.5 % (120ÃVÃAC) typ. 90.9 % (230 V AC) Nominal output voltage: 12 VÃDC Setting range of the output voltage (U_Set): 12 VÃDC ... 15 VÃDC (constant capacity) Nominal output current (I_N): 2.5 A Static Boost (I_Stat.Boost): 3.125 A (Ã¢Ã¢°¤Ã40Ã°C) Dynamic Boost (I_Dyn.Boost): 4.5 A (Ã¢Ã¢°¤Ã60Ã°C (5Ãs)) Feedback voltage resistance: Ã¢Ã¢°¤ 25 VÃDC Protection against overvoltage at the output (OVP): Ã¢Ã¢°¤ 18 VÃDC Control deviation: < 0.2 % (Static load change 10Ã% ... 90Ã%) < 2 % (Dynamic load change 10Ã% ... 90Ã%, (10 Hz)) < 0.1 % (change in input voltage Ã±10 %) Residual ripple: < 30 mV_PP (with nominal values) Short-circuit-proof: yes No-load proof: yes Output power: 30 W 38 W 54 W Maximum no-load power dissipation: < 0.4 W (230 V AC) < 0.5 W (120ÃVÃAC) Power loss nominal load max.: < 3.5 W (120ÃVÃAC) < 3 W (230 V AC) Crest factor: typ. 1.89 (120ÃVÃAC) typ. 1.97 (230 V AC) Rise time: 50 ms (U_OutÃ=Ã10Ã%Ã...Ã90Ã%) Connection in parallel: yes, for redundancy and increased capacity Connection in series: yes Signal (configurable) Digital: 0 VÃDC 12 VÃDC 24 mA Default: 12 VÃDC 24 mA 12ÃVÃDC for U_Out >Ã0.9ÃxÃU_Set
Connection data	Input Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 2.5 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Single conductor/terminal point, stranded, with ferrule, min.: 0.25 mm² Single conductor/terminal point, stranded, with ferrule, max.: 2.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 14 Stripping length: 10 mm Output Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 2.5 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Single conductor/terminal point, stranded, with ferrule, min.: 0.25 mm² Single conductor/terminal point, stranded, with ferrule, max.: 2.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 14 Stripping length: 10 mm Signal Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 2.5 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Single conductor/terminal point, stranded, with ferrule, min.: 0.25 mm² Single conductor/terminal point, stranded, with ferrule, max.: 2.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 14 Stripping length: 10 mm
Signaling	Types of signaling: LED Signal output P_Out: > P_Thr (LED lights up yellow, output power > P_Thr, depending on the rotary selector switch setting) U_Out: > 0.9ÃxÃU_Set (LED lights up green) < 0.9ÃxÃU_Set (LED flashes green)

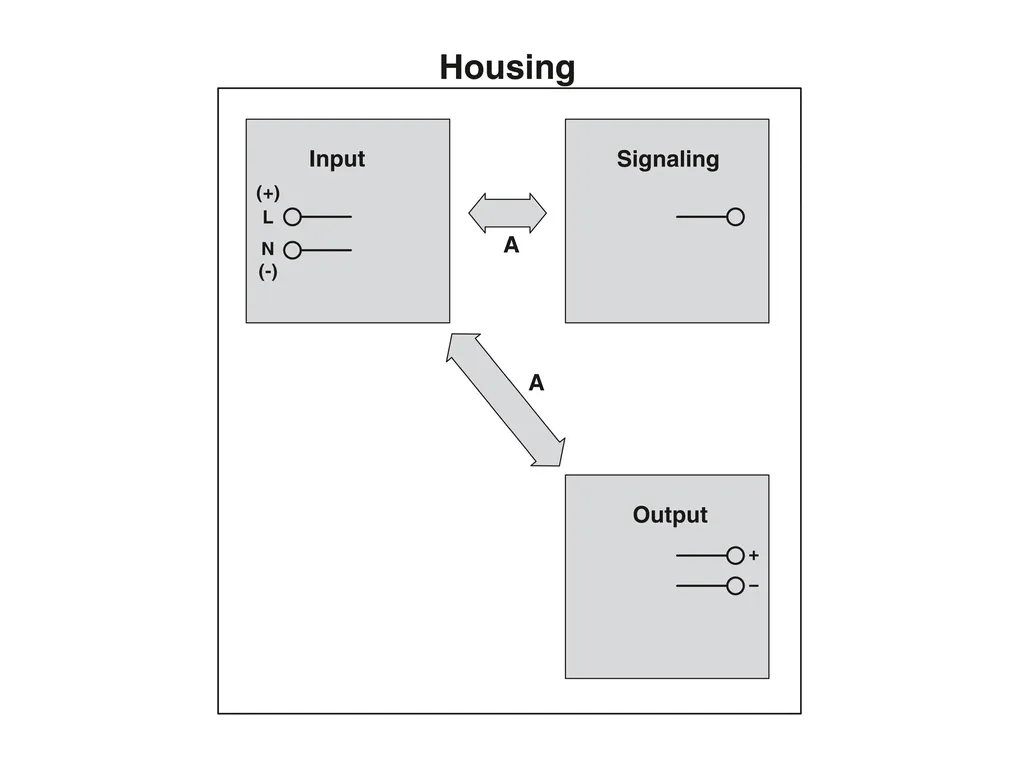

Electrical properties	Number of phases: 1.00 Insulation voltage input/output: 4 kV AC (type test) 3 kV AC (routine test) Switching frequency: 4 kHz ... 70 kHz (Auxiliary converter stage) 80 kHz ... 190 kHz (Main converter stage) 30 kHz ... 150 kHz (PFC stage)
Product properties	Product type: Power supply Product family: QUINT POWER MTBF (IEC 61709, SN 29500): > 1848000 h (25Ã°C) > 1060000 h (40Ã°C) > 459000 h (60Ã°C) Insulation characteristics Protection class: II Degree of pollution: 2 Life expectancy (electrolytic capacitors) Current: 2.5 A Temperature: 40°C Time: 149000 h Additional text: 120ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹ Current: 2.5 A Temperature: 40°C Time: 211000 h Additional text: 230ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Current: 2.5 A Temperature: 25°C Time: 424000 h Additional text: 120ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Current: 2.5 A Temperature: 25°C Time: 609000 h Additional text: 230ÃVÃAC
Dimensions	Width: 22.5 mm Height: 106 mm Depth: 90 mm Installation dimensions Installation distance right/left (active): 15 mm / 15 mm (P_OutÃÃ¢Ã¢°¥50%Ã) Installation distance right/left (passive): 5 mm / 5 mm (P_OutÃÃ¢Ã¢°¥50%Ã) Installation distance right/left (active, passive): 0 mm / 0 mm (P_OutÃÃ¢Ã¢°¤50Ã%) Installation distance top/bottom (active): 30 mm / 30 mm (P_OutÃÃ¢Ã¢°¥50%Ã) Installation distance top/bottom (passive): 30 mm / 30 mm (P_OutÃÃ¢Ã¢°¥50%Ã) Installation distance top/bottom (active, passive): 30 mm / 30 mm (P_OutÃÃ¢Ã¢°¤50Ã%)
Mounting	Mounting type: DIN rail mounting With protective coating: No
Material specifications	Flammability rating according to ULÃ94 (housing / terminal blocks): V0 Housing material: Plastic Type of housing: Polycarbonate Hood version: Polycarbonate
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (>Ã60Ã°C Derating: 2,5Ã%/K) Ambient temperature (storage/transport): -40°C ... 85°C Maximum altitude: Ã¢Ã¢°¤ 5000 m (> 2000 m, observe derating) Climatic class: 3K3 (in acc. with EN 60721) Max. permissible relative humidity (operation): Ã¢Ã¢°¤ 95 % (at 25°C, non-condensing) Shock: 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation): < 15ÃHz, Ã±2.5Ãmm amplitude; 15ÃHz ... 100ÃHz: 2.3Ãg 90ÃMin. (in accordance with IEC 60068-2-6)
Standards and regulations	Standard Ã¢Ã¢¬Ã¢ Limitation of mains harmonic currents: ENÃ61000-3-2 Standard Ã¢Ã¢¬Ã¢ Safety extra-low voltage: IEC 61010-1 (SELV) IEC 61010-2-201 (PELV) Standard - Safe isolation: IEC 61558-2-16 IEC 61010-2-201 Standard - safety for equipment for measurement, control, and laboratory use: IEC 61010-1 IEC 61010-2-201Ã(SELV) Standard - Safety of transformers: ENÃ61558-2-16 Overvoltage category EN 61010-1: IIÃ(Ã¢Ã¢°¤Ã5000Ãm) EN 62477-1: IIIÃ(Ã¢Ã¢°¤Ã2000Ãm)
Approvals	SIQ: CB-Scheme (IEC 61010-1, IEC 61010-2-201) UL approvals: UL Listed ULÃ61010-1 UL Listed ULÃ61010-2-201 UL 1310 Class 2 Power Units ANSI/ULÃ121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
EMC data	EMC requirements for noise emission: ENÃ61000-6-3 ENÃ61000-6-4 EMC requirements for noise immunity: ENÃ61000-6-1 ENÃ61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU EMC requirements, power plant: IEC 61850-3 ENÃ61000-6-5 Conducted noise emission: ENÃ55016 ENÃ61000-6-3 (Class B) Noise emission: Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) ENÃ55016 ENÃ61000-6-3 (Class B) Harmonic currents Standards/regulations: ENÃ61000-3-2 ENÃ61000-3-2 (Class A) Frequency range: 0 kHz ... 2 kHz Flicker Standards/regulations: ENÃ61000-3-3 Frequency range: 0 kHz ... 2 kHz Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeÃ¢Ã¢¬Ã¢¹ Contact discharge: 8 kV (Test Level 4) Discharge in air: 15 kV (Test Level 4) Comments: Criterion A Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldÃ¢Ã¢¬Ã¢¹ Frequency range: 80 MHz ... 1 GHz 1 GHz ... 6 GHz Test field strength: 20 V/m (Test Level X) 10 V/m (Test Level 3) Comments: Criterion A Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)Ã¢Ã¢¬Ã¢¹ Input: 4 kV (Test Level 4 - asymmetrical) Output: 4 kV (Test Level X - asymmetrical) Signal: 4 kV (Test Level X - asymmetrical) Comments: Criterion A Surge voltage load (surge) Standards/regulations: ENÃ61000-4-5 Input: 2 kV (Test Level 4 - symmetrical) 4 kV (Test Level 4 - asymmetrical) Output: 1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical) Signal: 0.5 kV (Test Level 2 - symmetrical) 1 kV (Test Level 2 - asymmetrical) Comments: Criterion A Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceÃ¢Ã¢¬Ã¢¹ I/O/S: asymmetrical Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Power frequency magnetic field Standards/regulations: ENÃ61000-4-8 Frequency: 16.67 Hz 50 Hz 60 Hz 50 Hz 60 Hz 0 Hz Test field strength: 100 A/m 1 kA/m 300 A/m Additional text: 60 s 3 s DC, 60Ãs Comments: Criterion A Frequency range: 50 Hz ... 60 Hz Voltage dips Standards/regulations: ENÃ61000-4-11 Voltage: 100 VÃAC Frequency: 60 Hz Voltage dip: 70 % 40 % 0 % Number of periods: 0.5 / 1 / 30 periods 5 / 10 / 50 periods 0.5 / 1 / 5 / 50 periods Additional text: Test Level 2 Comments: Criterion A Criterion B Criterion B Pulse-shape magnetic field Standards/regulations: ENÃ61000-4-9 Test field strength: 1000 A/m Comments: Criterion A Attenuated sinusoidal oscillations (ring wave) Standards/regulations: ENÃ61000-4-12 Input: 2 kV (symmetrical) 4 kV (asymmetrical) Comments: Criterion A Asymmetrical conducted disturbance variables Standards/regulations: ENÃ61000-4-16 Test level 1: 16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) Voltage: 30 V (10Ãs) 300 V (1 s) Test level 2: 16.67 Hz 50 Hz 60 Hz (Test Level 2) Comments: Criterion A Attenuated oscillating wave Standards/regulations: ENÃ61000-4-18 Voltage: 1 kV (symmetrical) 2.5 kV (asymmetrical) 1 kV (symmetrical) Comments: Criterion A Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself. Criterion C: Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
