PHOENIX CONTACT 2905466
PHOENIX CONTACT 2905466
PHOENIX CONTACTDisponibile

FLT-SEC-T1+T2-1S-350/25-FM - Type 1+2 special combined lightning current and surge arrester

Plug-in lightning and surge arrester combination, in accordance with Type 1+2/Class I+II, for 1-phase power supply networks, with separate N and PE (L1, PE, N).
Cod. Articolo: 2905466 copia - copy
Cod. Fornitore: 2905466 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesIEC test classification: I + II
T1 + T2
EN type: T1 + T2
IEC power supply system: TN-S
TT
Type: DIN rail module, two-section, divisible
Product type: Arrester combination
Product family: SEC Family
Number of positions: 2
Surge protection fault message: Optical, remote indicator contact
Insulation characteristics
Overvoltage category: III
Pollution degree: 2
Electrical propertiesNominal frequency fN: 50 Hz (60ÂHz)
Indicator/remote signaling
Connection name: Remote fault indicator contact
Switching function: Changeover contact
Operating voltage: 12 VÂAC ... 250 VÂAC
125 VÂDC (200 mA DC)
Operating current: 10 mA AC ... 1 A AC
1 AÂDC (30ÂVÂDC)
Connection dataConnection method: Screw connection
Fork-type cable lug
Screw thread: M5
Tightening torque: 4.5 Nm
Stripping length: 18 mm
Conductor cross section flexible: 2.5 mm² ... 35 mm²
1.5 mm² ... 16 mm²
Conductor cross section rigid: 2.5 mm² ... 35 mm²
Conductor cross section AWG: 13 ... 2
Remote fault indicator contact
Connection method: Plug-in/screw connection via COMBICON
Screw thread: M2
Tightening torque: 0.25 Nm
Stripping length: 7 mm
Conductor cross section flexible: 0.14 mm² ... 1.5 mm²
Conductor cross section rigid: 0.14 mm² ... 1.5 mm²
Conductor cross section AWG: 28 ... 16

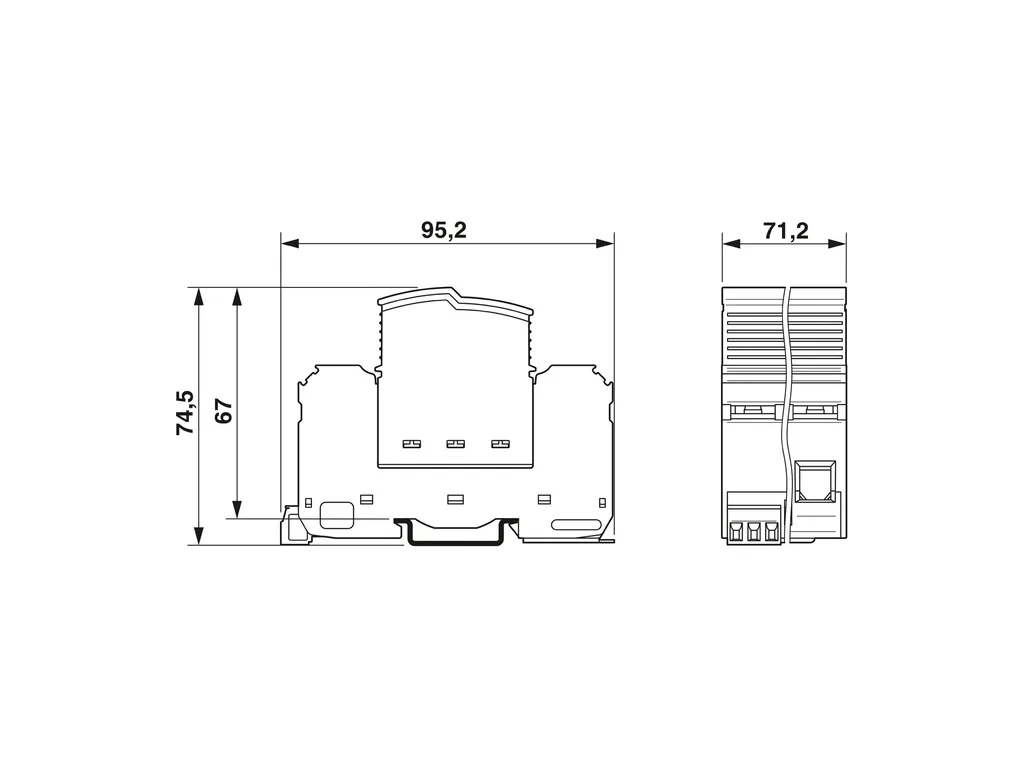

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/18d55f760130d14ea7b4aa5caf453d3a/-S204x204-FJPG
Width: 71.2 mm
Height: 95.2 mm
Depth: 74.5 mm (incl. DIN rail 7.5Âmm)
Horizontal pitch: 4 Div.
Material specificationsFlammability rating according to UL 94: V-0
CTI value of material: 600
Insulating material: PA6.6-FR 20% GF
PBT-FR
Material group: I
Housing material: PA 6.6-FR 20Â% GF
PBT-FR
Mechanical propertiesMechanical data
Open side panel: No
Protective circuitMode of protection: L-N
L-PE
N-PE
Direction of action: 1L-N & N-PE
Nominal voltage UN: 240ÂVÂAC (TN-S)
240ÂVÂAC (TT)
Nominal frequency fN: 50 Hz (60ÂHz)
Maximum continuous voltage UC: 350 VÂAC
Rated load current IL: 125 A (< 55°C)
Residual current IPE: ≤ 0.01 mA
Nominal discharge current In (8/20) µs (L-N): 25 kA
Nominal discharge current In (8/20) µs (L-PE): 25 kA
Nominal discharge current In (8/20) µs (N-PE): 100 kA
Impulse discharge current (10/350)µs (L-N), charge: 12.5 As
Impulse discharge current (10/350) µs (L-N), specific energy: 160 kJ/Ω
Impulse discharge current (10/350)µs (L-N), peak current value Iimp: 25 kA
Impulse discharge current (10/350) µs (L-PE), charge: 12.5 As
Impulse discharge current (10/350)µs (L-PE), specific energy: 160 kJ/Ω
Impulse discharge current (10/350) µs (L-PE), peak current value Iimp: 25 kA
Impulse discharge current (10/350) µs (N-PE), charge: 50 As
Impulse discharge current (10/350) µs (N-PE), specific energy: 2500 kJ/Ω
Impulse discharge current (10/350) µs (N-PE), peak current value Iimp: 100 kA
Follow current quenching capacity Ifi (L-N): 25 kA (264 V AC)
3 kA (350 V AC)
Follow current interrupt rating Ifi (N-PE): 100 A (350 V AC)
Short-circuit current rating ISCCR: 25 kA (264 VÂAC)
3 kA (350 V AC)
Voltage protection level Up (L-N): ≤ 1.5 kV
Voltage protection level Up (L-PE): ≤ 2.2 kV
Voltage protection level Up (N-PE): ≤ 1.5 kV
Residual voltage Ures (L-N): ≤ 1.5 kV (at In)
≤ 1.2 kV (at 10 kA)
≤ 1 kV (at 5 kA)
≤ 0.9 kV (at 3ÂkA)
Residual voltage Ures (L-PE): ≤ 2.2 kV (at In)
≤ 2 kV (at 10 kA)
≤ 1.8 kV (at 5 kA)
≤ 1.6 kV (at 3ÂkA)
Residual voltage Ures (N-PE): ≤ 1.5 kV (at In)
≤ 1 kV (at 10 kA)
≤ 0.9 kV (at 5 kA)
≤ 0.8 kV (at 3ÂkA)
TOV behavior at UT (L-N): 415 VÂAC (5Âs / withstand mode)
457 VÂAC (120Âmin / safe failure mode)
TOV behavior at UT (N-PE): 1200 VÂAC (200Âms / withstand mode)
Response time tA (L-N): ≤ 25 ns
Response time tA (L-PE): ≤ 100 ns
Response time tA (N-PE): ≤ 100 ns
Max. backup fuse with V-type through wiring: 125 A (gG)
Max. backup fuse with branch wiring: 315 A (gG)
Additional technical data
Maximum discharge current Imax (8/20) µs: 100 kA
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20 (only when all terminal points are used)
Ambient temperature (operation): -40°C ... 80°C
Ambient temperature (storage/transport): -40°C ... 80°C
Altitude: ≤ 2000 m (amsl)
Permissible humidity (operation): 5 % ... 95 %
Shock (operation): 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation): 5g (5 - 500 Hz/2.5 h/X, Y, Z)
ApprovalsUL specifications
Maximum continuous operating voltage MCOV (L-N): 264 VÂAC
Maximum continuous operating voltage MCOV (L-G): 264 VÂAC
Maximum continuous operating voltage MCOV (N-G): 350 VÂAC
Short-circuit current rating (SCCR): 50 kA
Voltage protection rating VPR (L-N): 1200 V
Voltage protection rating VPR (L-G): 1500 V
Voltage protection rating VPR (N-G): 1200 V
Nominal discharge current In: 20 kA
Mode of protection: L-N
L-G
N-G
Nominal voltage: 240ÂVÂAC
Rated load current IL: 50 A
Power distribution system: Single phase
Nominal frequency: 50/60 Hz
SPD Type: 2CA
UL indicator/remote signaling
Operating voltage: 125 VÂAC
AC operating current: 1 A AC
UL connection data
Tightening torque: 40 lbf-in.
Conductor cross section AWG: 3 ... 2
Standards and regulationsStandards/specifications: IEC 61643-11
Note: 2011
EN 61643-11
Standards/specifications: ENÂ61643-11
Note: 2012
MountingMounting type: DIN rail: 35 mm
