| Product properties | Product type: Timer relay Operating mode: 100% operating factor Mechanical service life: 15x 106 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: 1x 105 cycles Nominal frequency: 48 Hz ... 63 Hz Test voltage relay winding/relay contact: 4 kV |

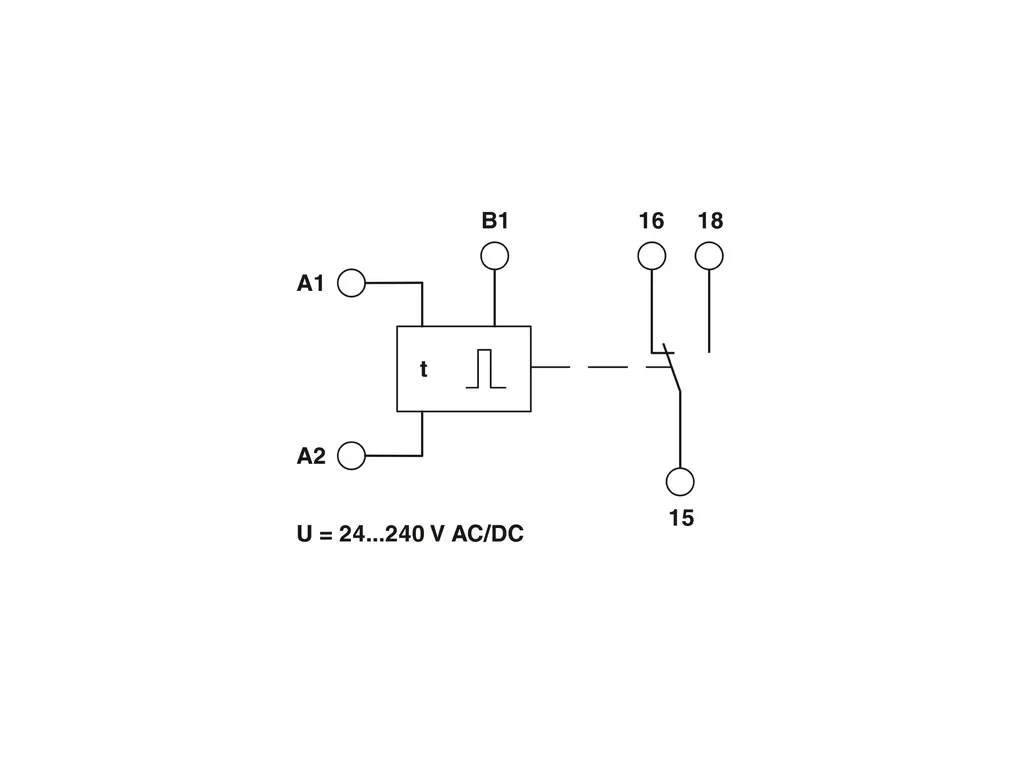

| Input data | Input voltage range: 24 V AC/DC ... 240 V AC/DC -15Ã%Ã...Ã+10Ã% Temperature coefficient, typical: ââ°¤ 0.01 %/K Recovery time: 100 ms Function: E: With switch-on delay Rs: With release delay and control contact Es: With switch-on delay and control contact Ws: With single shot leading edge and control contact Setting range time: 50 ms ... 1 h (5 time end ranges) Basic accuracy: ñ 1 % (of scale end value) Setting accuracy: ââ°¤ 5 % (of scale end value) Repeat accuracy: ââ°¤ 0.5 % ñ5Ãms Control Connection name: Non-floating, terminals A1-B1 Control pulse length: ââ°¥ 50 ms (DC) ââ°¥ 100 ms (AC) |
| Output data | Switching Contact switching type: 1 floating changeover contact Maximum switching voltage: 250 VÃAC (in acc. with IEC 60664-1) Interrupting rating (ohmic load) max.: 1250 VA (5ÃA / 250ÃVÃAC) Output fuse: 5 A (fast-blow) |
| Connection data | Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 |
| Signaling | Status display: Green LED (POWER) Yellow LED (relay active) |
| Dimensions | Width: 17.5 mm Height: 89.5 mm Depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Housing): IP40 (Housing) Degree of protection (Connection terminal blocks): IP20 (Connection terminal blocks) Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -25°C ... 70°C Permissible humidity (operation): 15 % ... 85 % |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA/Canada Identification: UL 508 Listed |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-3 |
| Standards and regulations | Standards/regulations: ENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715 Mounting position: any |
