2906229 PHOENIX CONTACT -

PACT RCP-4000A-UIRO - Signal conditioner

Universally configurable 4-way signal conditioner, with switching output and plug-in connection technology for the electrical isolation of analog signals. Configurable via DIP switch or software. Screw connection technology, standard configuration.

Cod. Articolo: 2906229 copia - copy

Cod. Fornitore: 2906229 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Signal conditioner
Electrical properties	General Accuracy class: 1

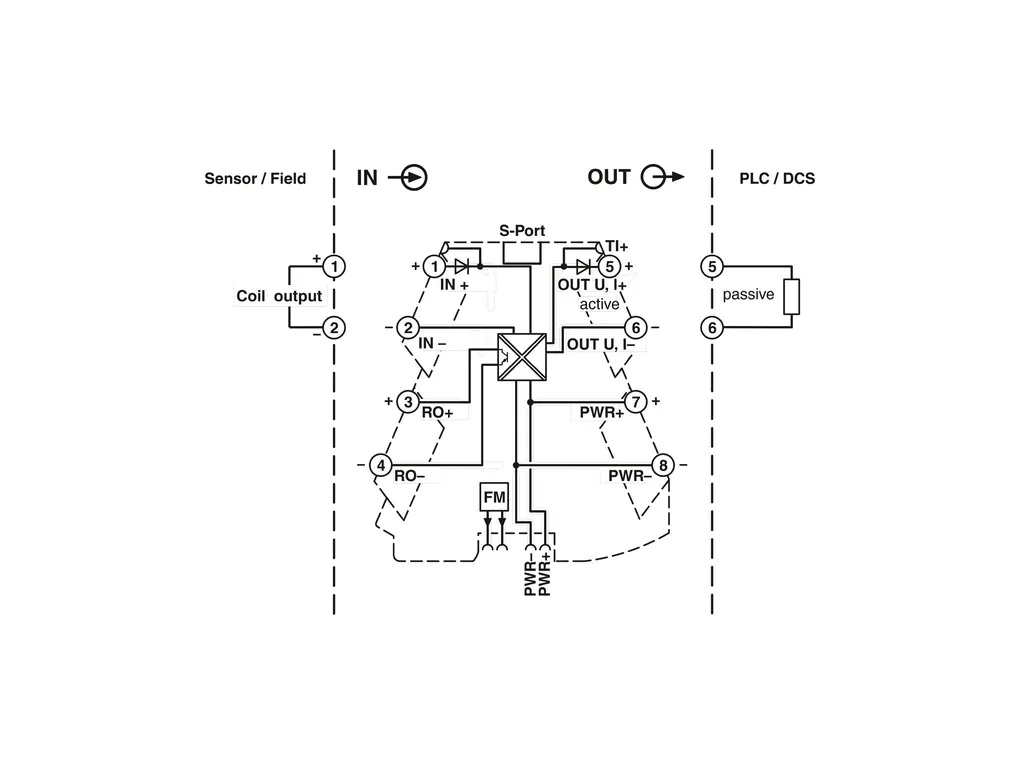

Input data	Signal Input signal (at 50 Hz): 100 mV (1000 A) Measurement Number of inputs: 1 Current transformers Primary rated current I_pn: 4000 A Accuracy class: 1 MeasurementÃ¢Ã¢¬Ã¢¹ Maximum transmission error: Ã¢Ã¢°¤ 0.5 % (From the range end value)
Output data	Signal Configurable/programmable: Yes Voltage output signal: 0 V ... 10 V (via DIP switch) 2 V ... 10 V (via DIP switch) 0 V ... 5 V (via DIP switch) 1 V ... 5 V (via DIP switch) 0 V ... 10.5 V (can be set via software) Max. voltage output signal: approx. 12.3 V Current output signal: 0 mA ... 20 mA (via DIP switch) 4 mA ... 20 mA (via DIP switch) 0 mA ... 10 mA (via DIP switch) 2 mA ... 10 mA (via DIP switch) 0 mA ... 21 mA (can be set via software) Max. current output signal: 24.6 mA Load/output load voltage output: Ã¢Ã¢°¥ 10 kÃ© Load/output load current output: Ã¢Ã¢°¤ 600 Ã© (20ÃmA) Ripple: < 20 mV_PP
Connection data	Connection method: Screw connection Stripping length: 10 mm Measuring transducer side Connection method: Screw connection Stripping length: 10 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 26 ... 16
Material specifications	Housing material: PBT
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 85°C
Approvals	UKCA Certificate: UKCA-compliant CMIM Certificate: CMIM-compliant
EMC data	Electromagnetic HF field Frequency range: 16 Hz ... 1000 Hz
Mounting	Mounting type: DIN rail mounting
