PHOENIX CONTACT 2906571

PHOENIX CONTACT 2906571

Non disponibile

EMG150-LG/O - Electronic housing

Electronic housing, for PCB insertion, without screw connection terminal blocks and cover, with open terminal space

Cod. Articolo: 2906571 copia - copy

copia - copy

Cod. Fornitore: 2906571 copia - copy

copia - copy

PHOENIX CONTACT

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

Product properties	Type: Lower part of housing, removable cover optional Lower and upper part, with snap-on foot, with open clamping space Product type: Complete housing Product family: EMG Housing type: Component housing Housing series: EMG

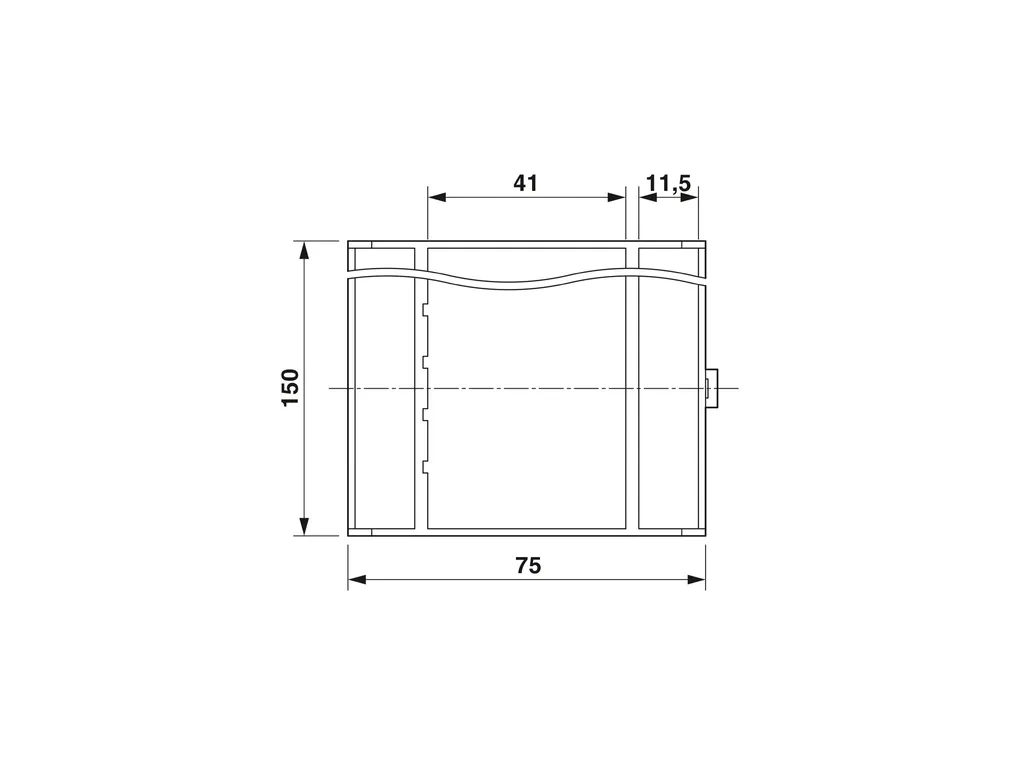

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8012718e4eaa434892d5a300b1d0abc4/-S204x204-FJPG Width: 150 mm Installed height: 47.5 mm Height NS 35/7,5: 55 mm 83 mm Depth: 75 mm Length: 75 mm
Material specifications	Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate, glass-fiber-reinforced
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C
Mounting	Mounting type: DIN rail mounting

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf
